Installation Procedure

  1. Align the rear cargo audio control to the trim panel.
  2. Install the screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

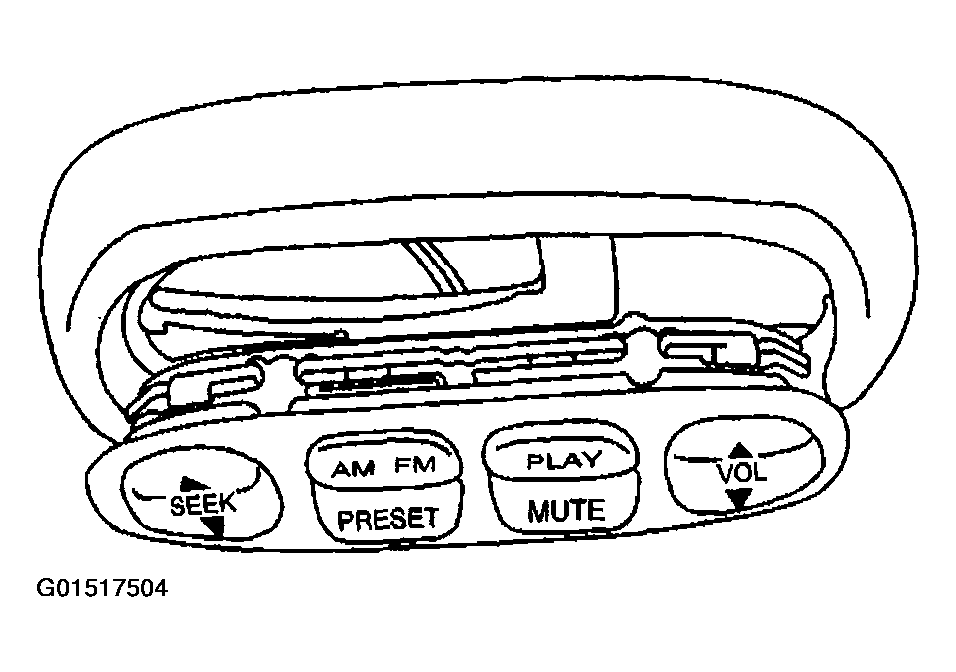

    Fig 1: Installing Rear Cargo Audio Control To Trim Panel
    G01517504Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector.
  4. Install the rear trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .

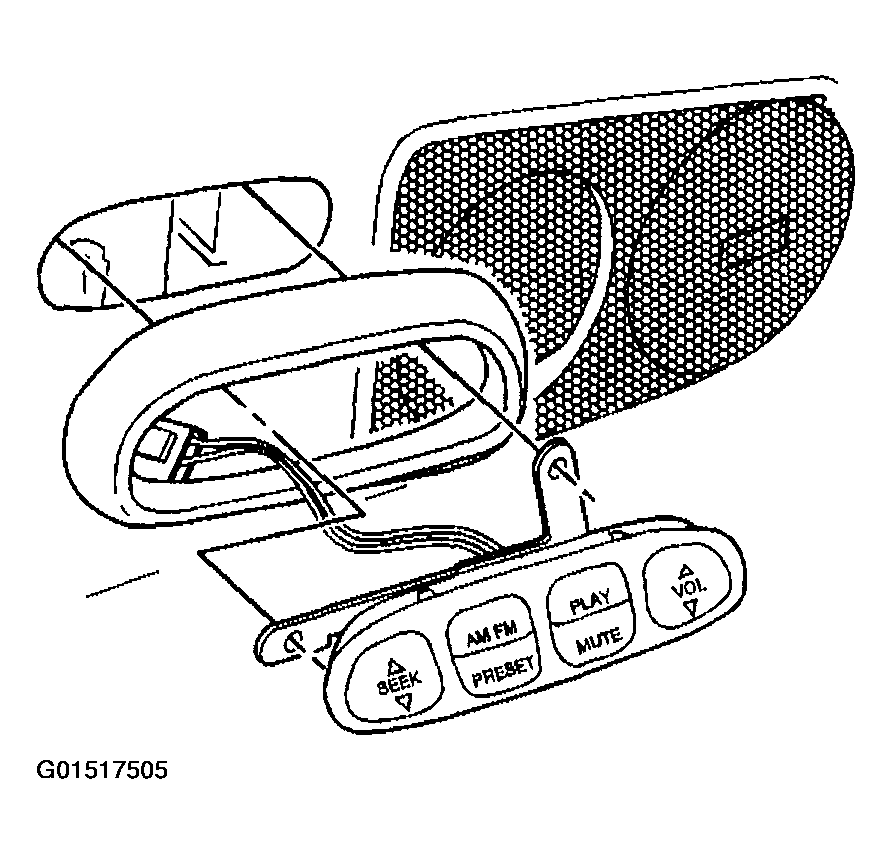

    Fig 2: Connecting Electrical Connector
    G01517505Courtesy of GENERAL MOTORS CORP.
