Installation Procedure

  1. Install the following components to the vehicle:
    • The antenna cable
    • The antenna cable extension

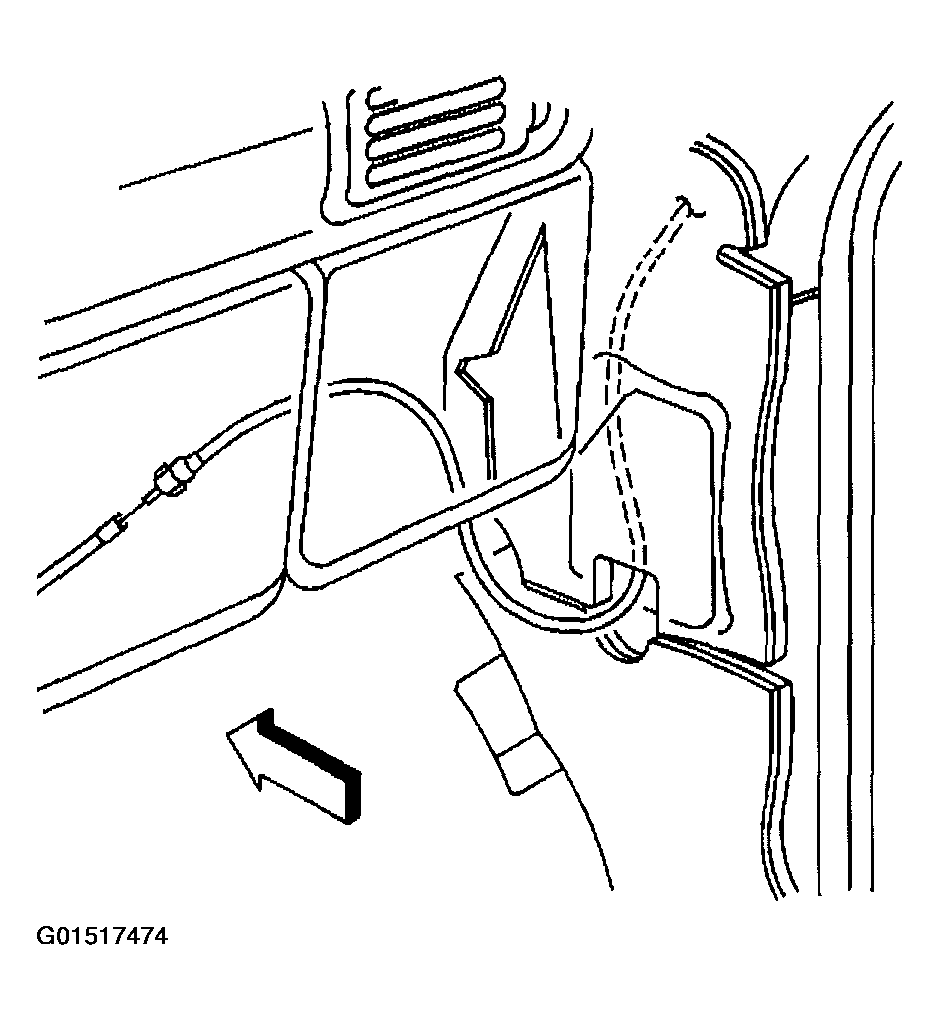

    Fig 1: Installing Antenna Cable
    G01517474Courtesy of GENERAL MOTORS CORP.
  2. Install the antenna cable to the instrument panel carrier.

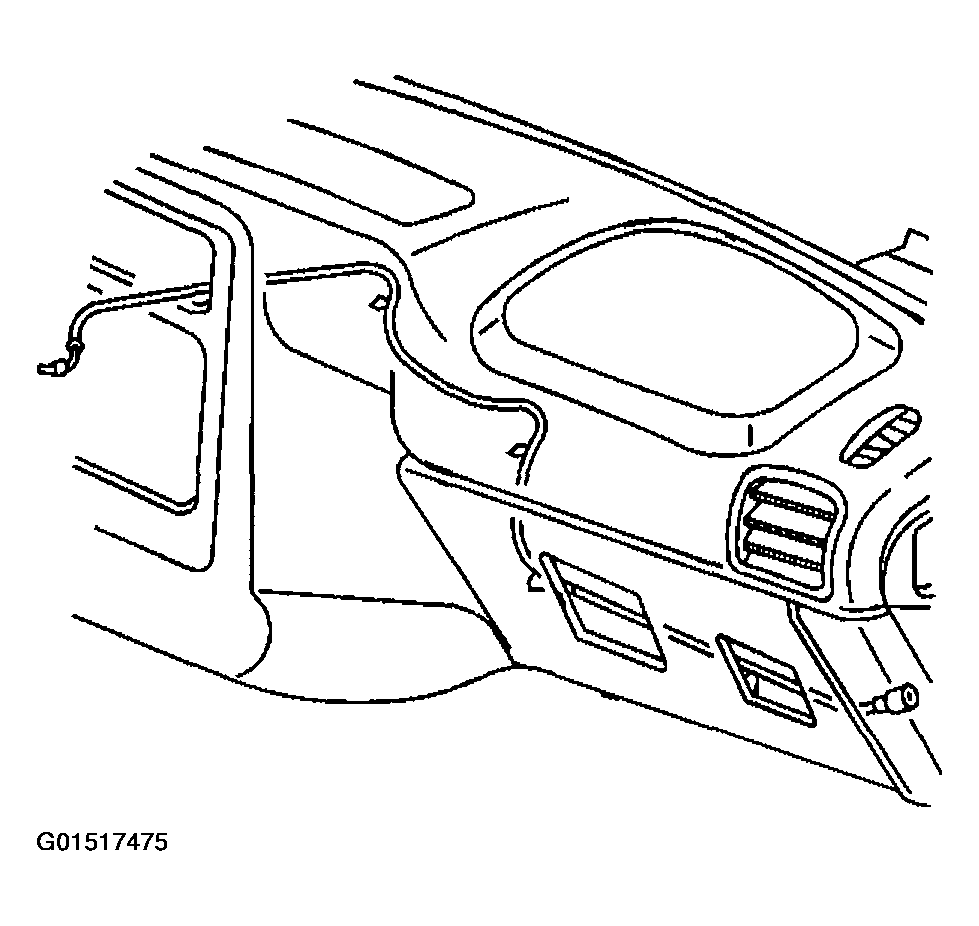

    Fig 2: Installing Antenna Cable To Instrument Panel Carrier
    G01517475Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt which secures the antenna cable extension to the roof.

    Tighten

    Tighten the bolt to 3.2 N.m (28 lb in).

  4. Install the trim panel at the right cowl side. Refer to TRIM PANEL REPLACEMENT -- COWL SIDE .
  5. Install the garnish molding to the windshield. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
  6. Install the sunshade anchor. Refer to SUNSHADE ANCHOR REPLACEMENT .
  7. Install the sunshade. Refer to SUNSHADE REPLACEMENT .
  8. Install the radio. Refer to RADIO REPLACEMENT  .

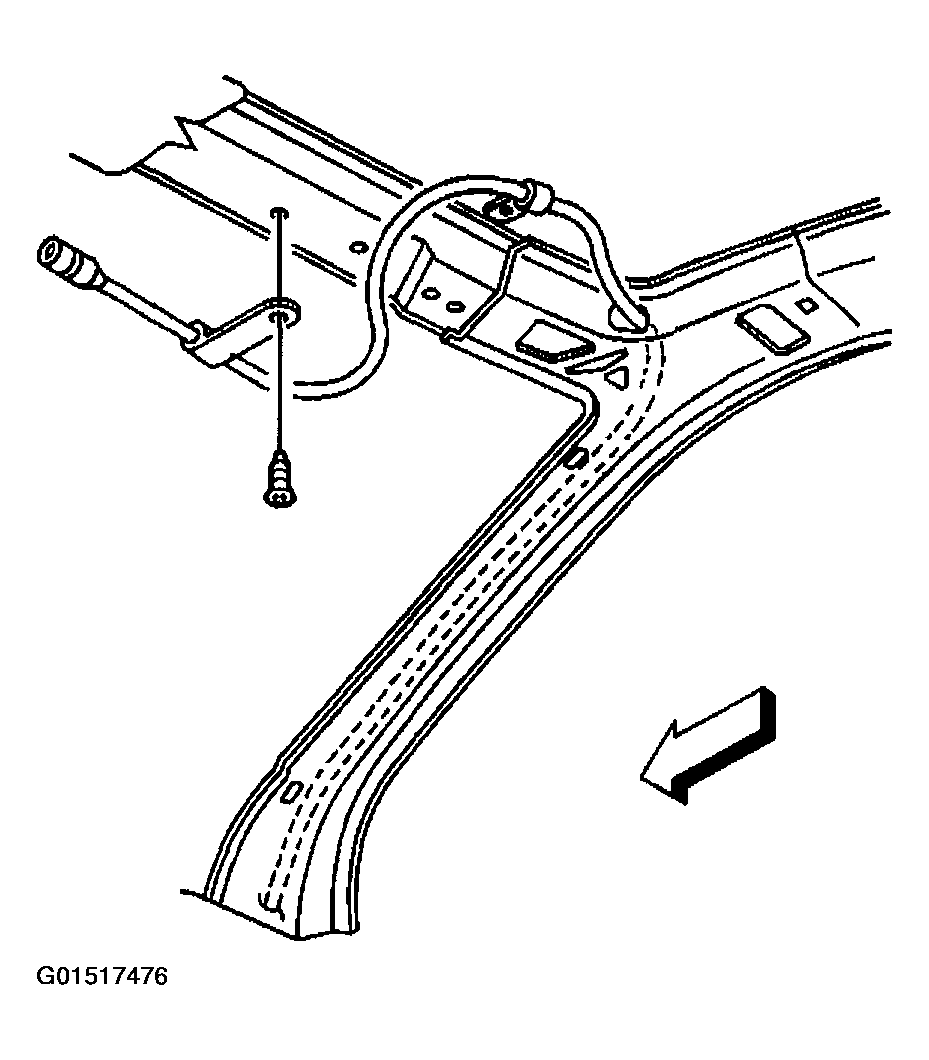

    Fig 3: Installing Antenna Cable Extension To Roof
    G01517476Courtesy of GENERAL MOTORS CORP.
