Scan Tool Data List

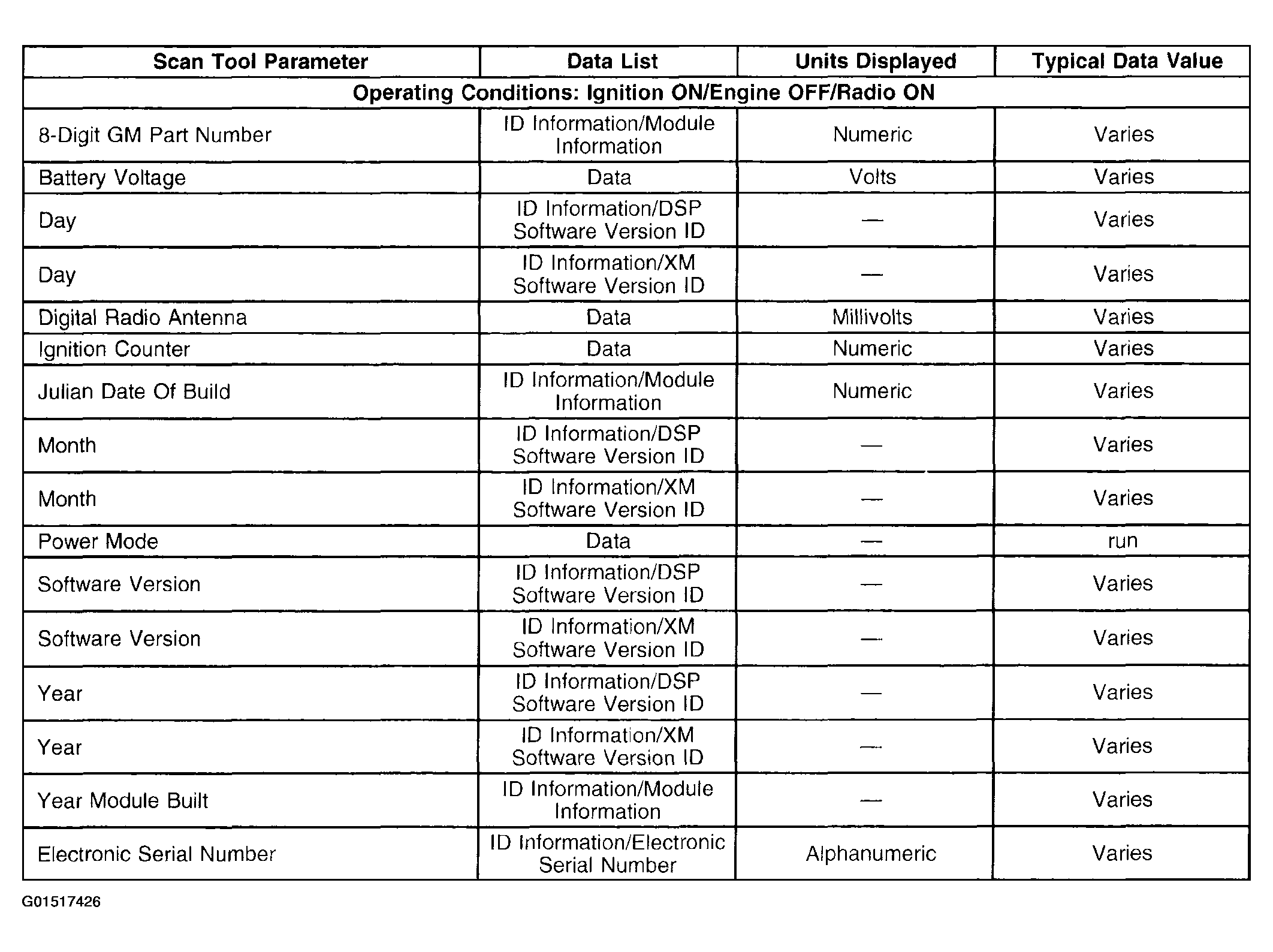

Fig 1: Radio/Integrated Radio Control (IRC)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Digital Radio Receiver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
