Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Entertainment System >> Component Locator >> Entertainment Component Views

Entertainment Component Views

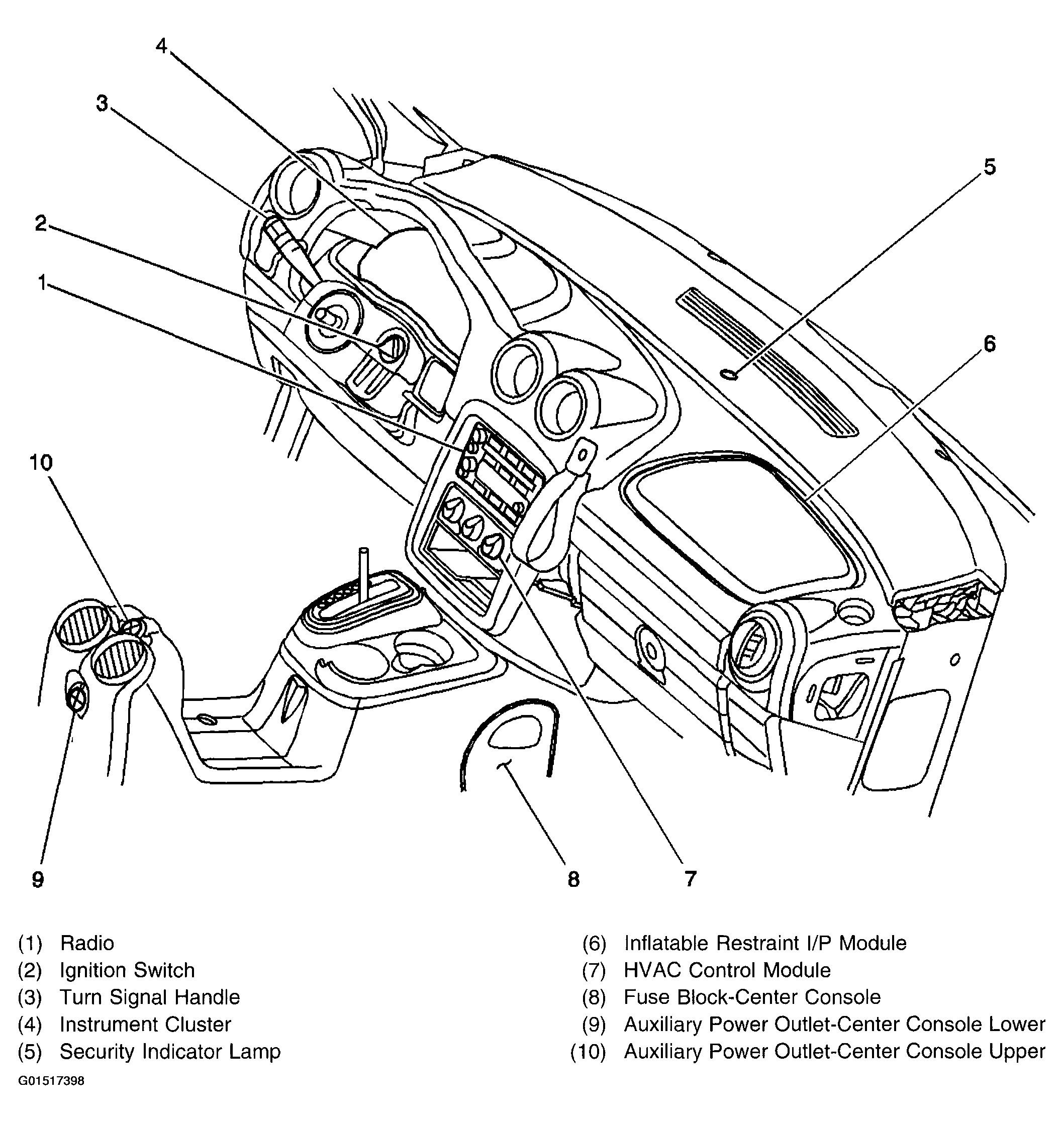

Fig 1: Locating Instrument Panel & Center Console Components - Pontiac
G01517398Courtesy of GENERAL MOTORS CORP.

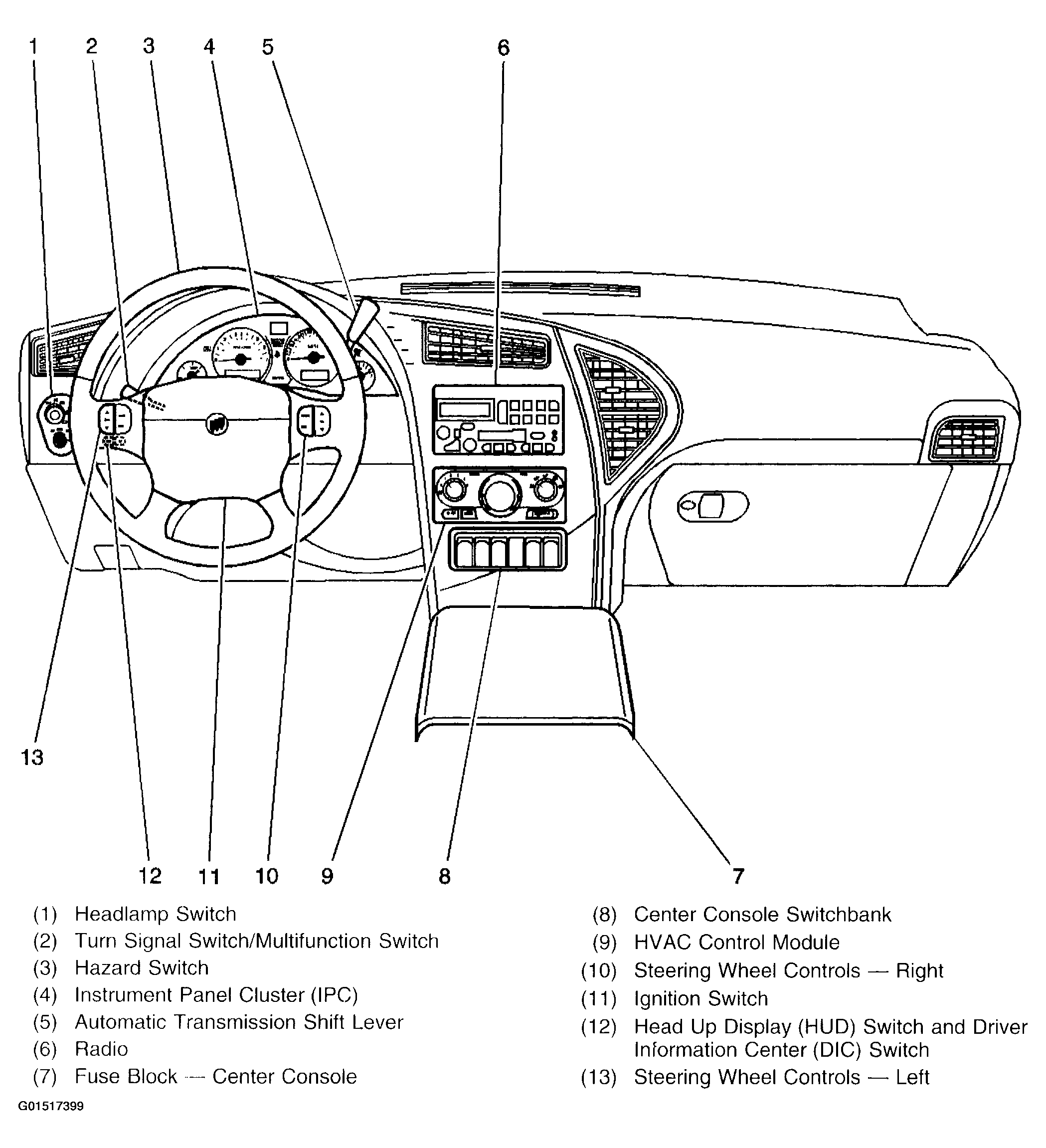

Fig 2: Locating Instrument Panel Components - Buick
G01517399Courtesy of GENERAL MOTORS CORP.
