Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular Communication System >> Repair Instructions >> OnStar® Button Assembly Replacement >> Removal Procedure

Removal Procedure

  1. Remove the overhead console door (3).
  2. Reach your hand through the access opening and disconnect the electrical connectors (1) for the switches.
  3. Remove the OnStar® button assembly (2).

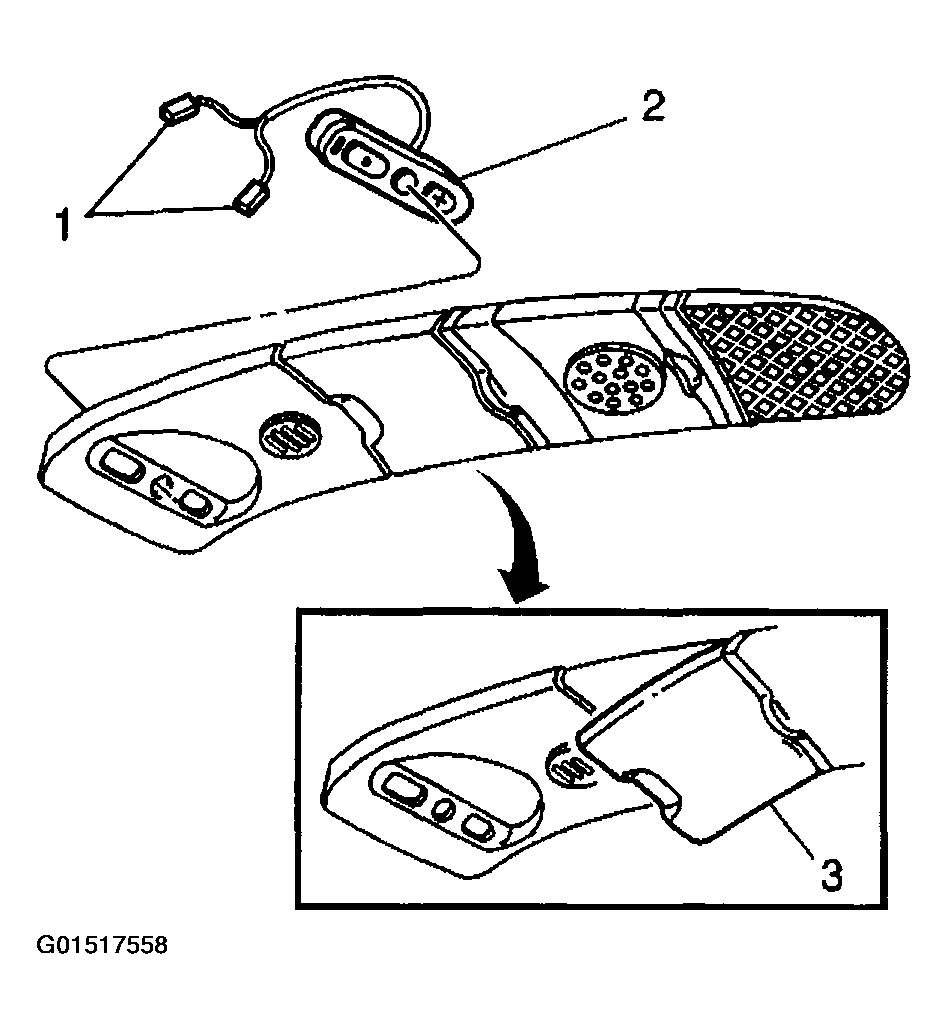

    Fig 1: Removing Overhead Console Door & Connector
    G01517558Courtesy of GENERAL MOTORS CORP.
