Schematic & Routing Diagrams

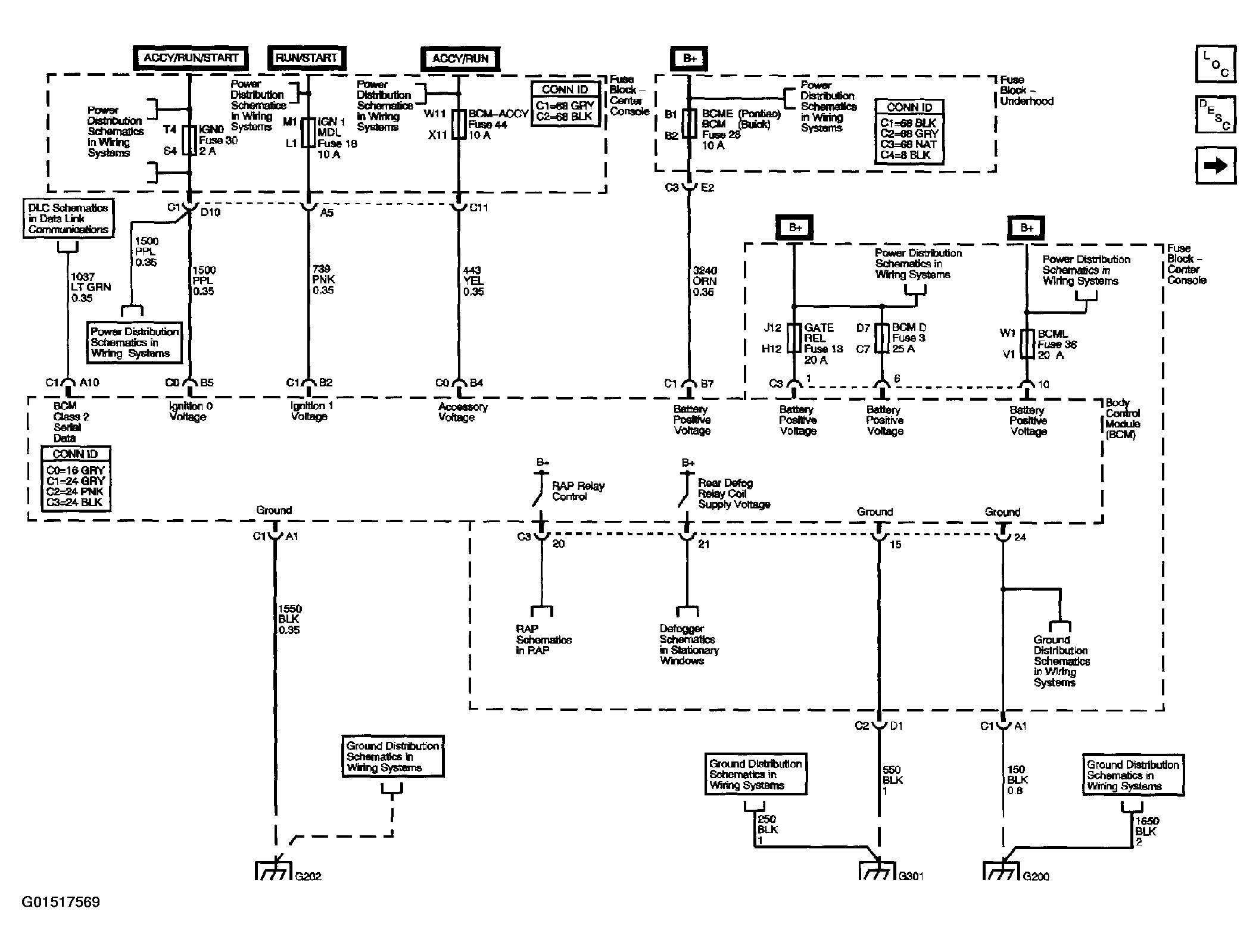

Fig 1: Body Control System Schematics (Power, Ground & Serial Data)

Courtesy of GENERAL MOTORS CORP.

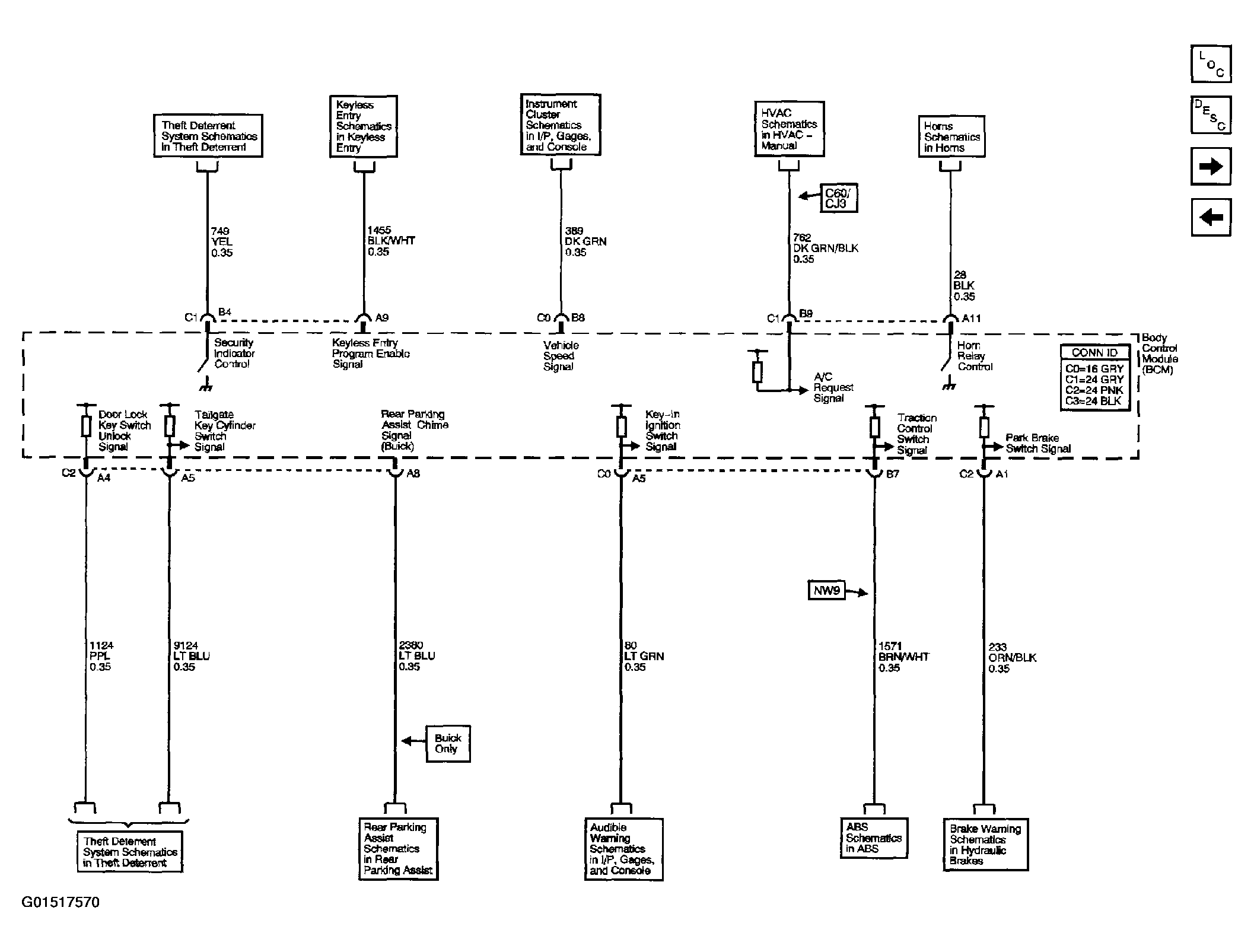

Fig 2: Body Control System Schematics (Subsystem References)

Courtesy of GENERAL MOTORS CORP.

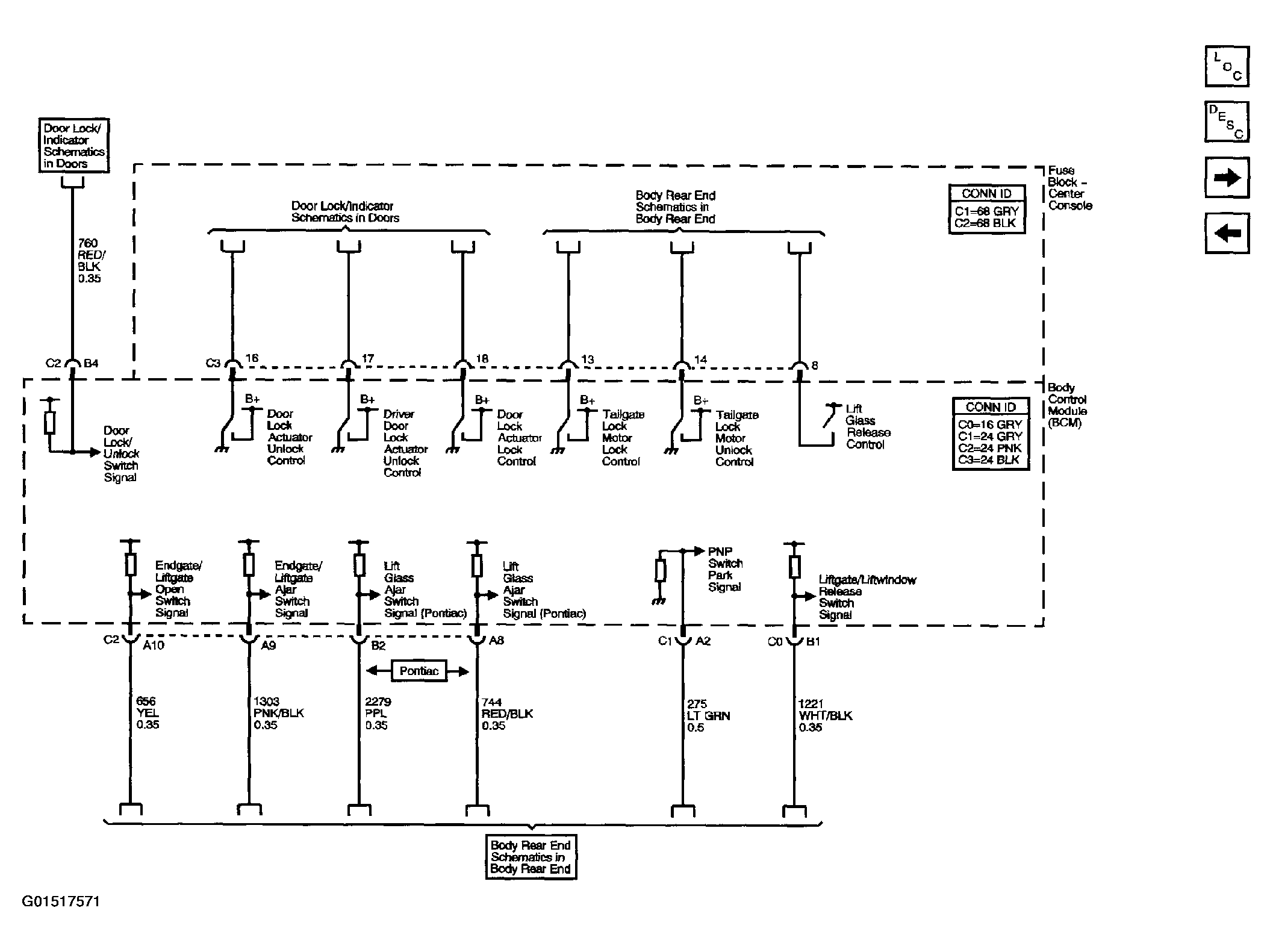

Fig 3: Body Control System Schematics (Door & Body Rear End References)

Courtesy of GENERAL MOTORS CORP.

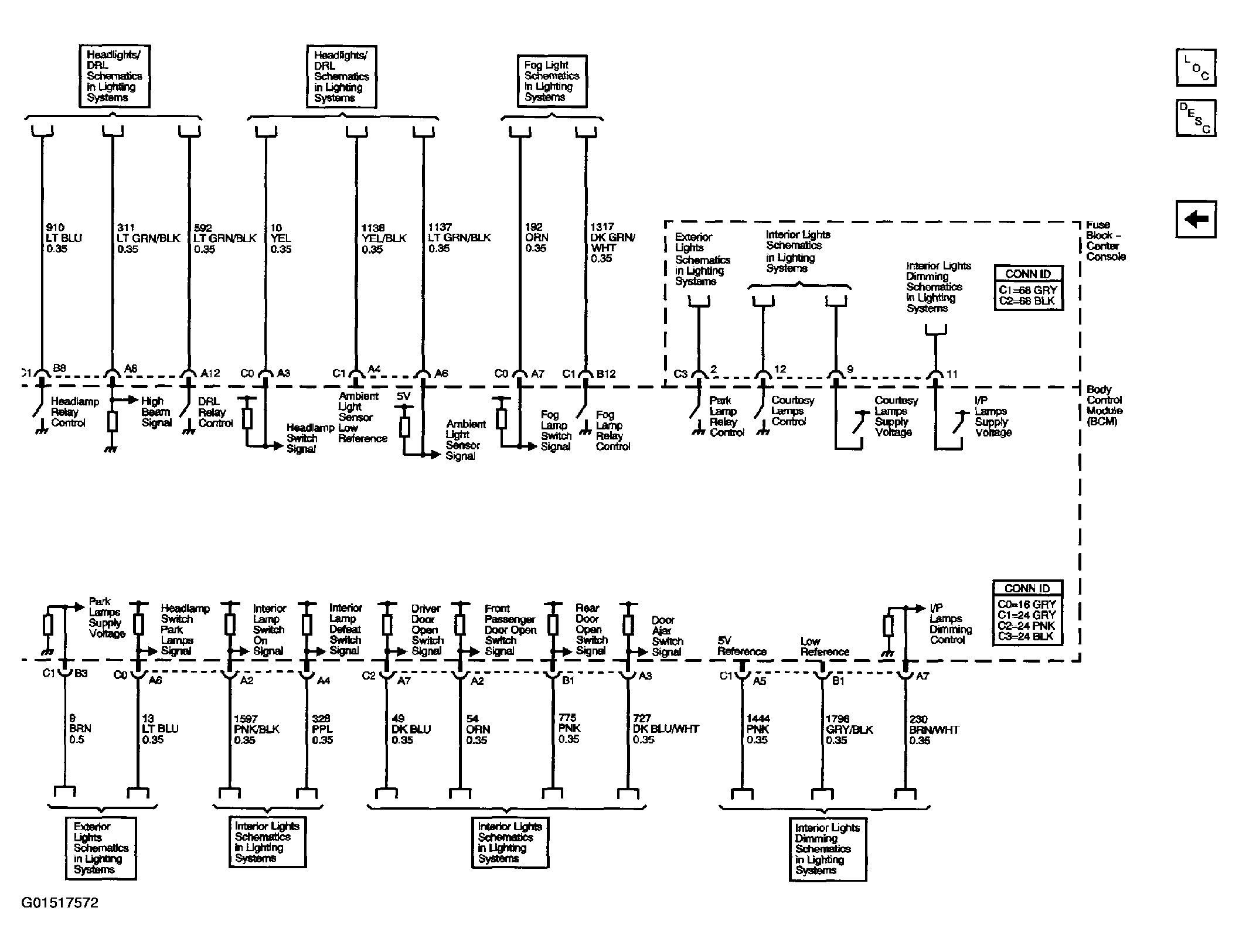

Fig 4: Body Control System Schematics (Lighting References)

Courtesy of GENERAL MOTORS CORP.
