Retained Accessory Power System
>>
Schematic and Routing Diagrams
Schematic and Routing Diagrams

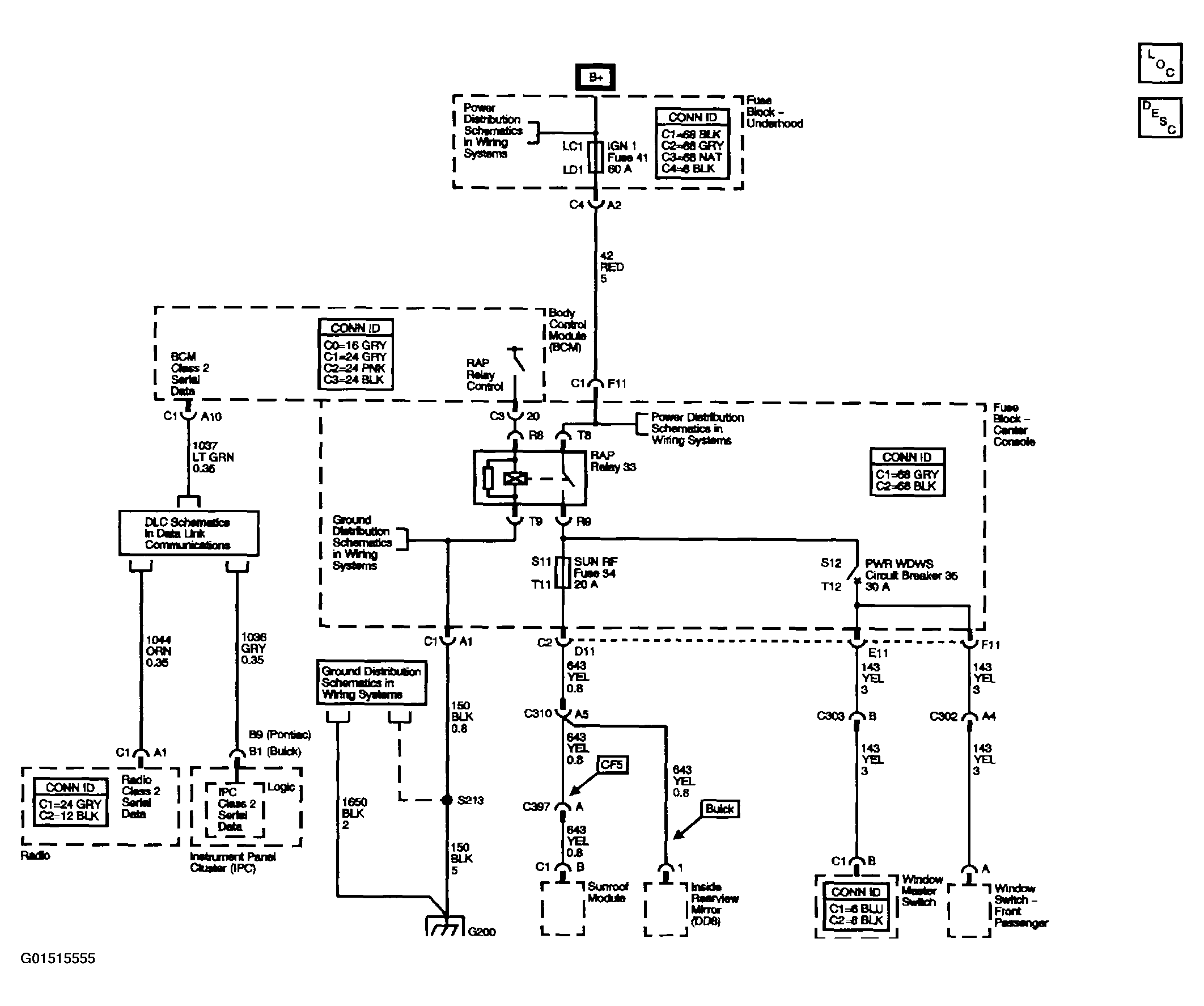

Fig 1: Retained Accessory Power (RAP) Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
