Transfer Case Disassembled View

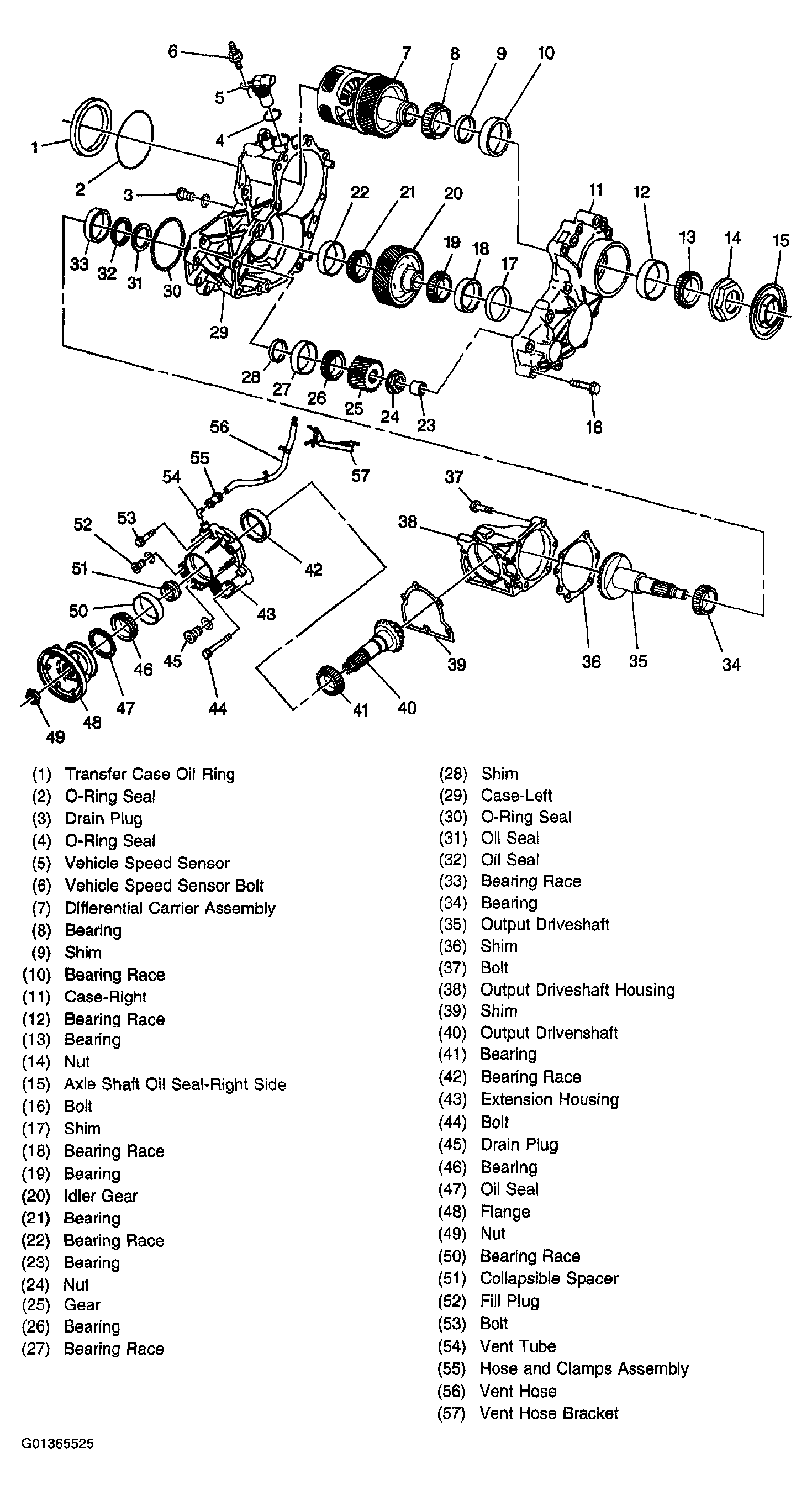

Fig 1: Exploded View Of Transfer Case Assembly

G01365525

Courtesy of GENERAL MOTORS CORP.

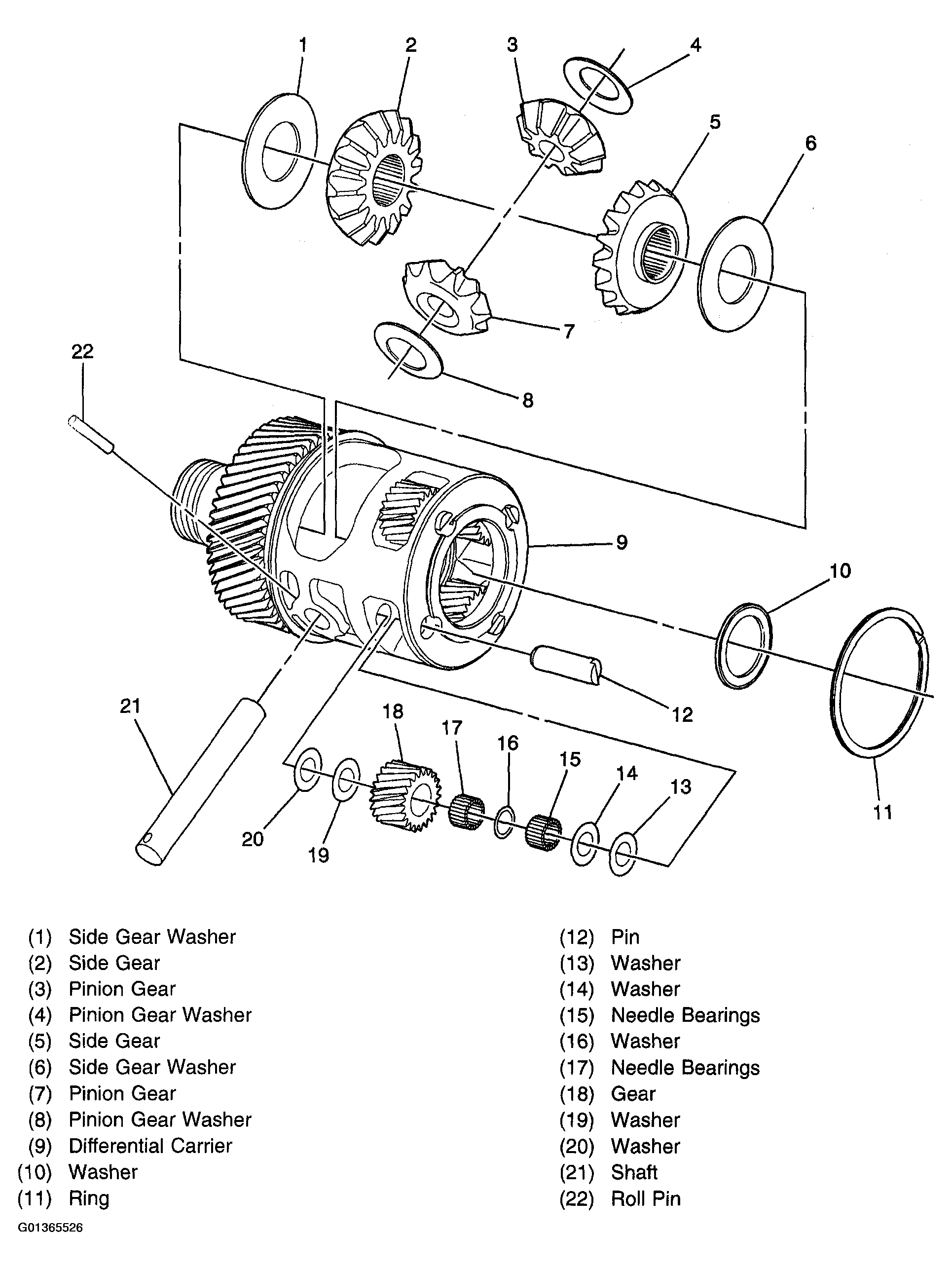

Fig 2: Exploded View Of Carrier Assembly

G01365526

Courtesy of GENERAL MOTORS CORP.
