Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Shift Interlock System >> Component Locator >> Automatic Transmission Shift Lock Control Connector End Views >> A/T Shift Lock Control Solenoid - Pontiac

A/T Shift Lock Control Solenoid - Pontiac

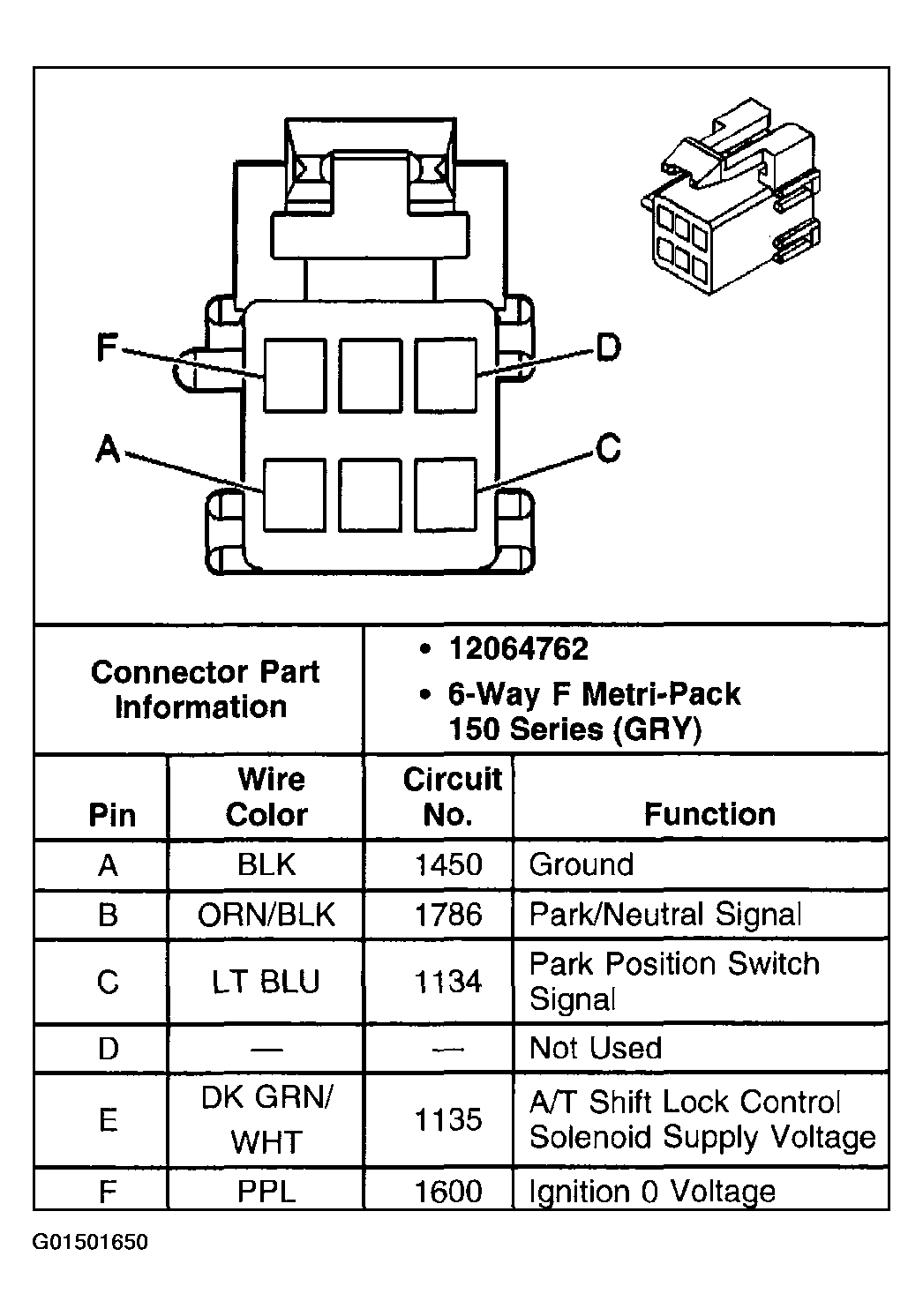

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector - Pontiac

G01501650

Courtesy of GENERAL MOTORS CORP.
