Theft Deterrent Control Module Connector End View

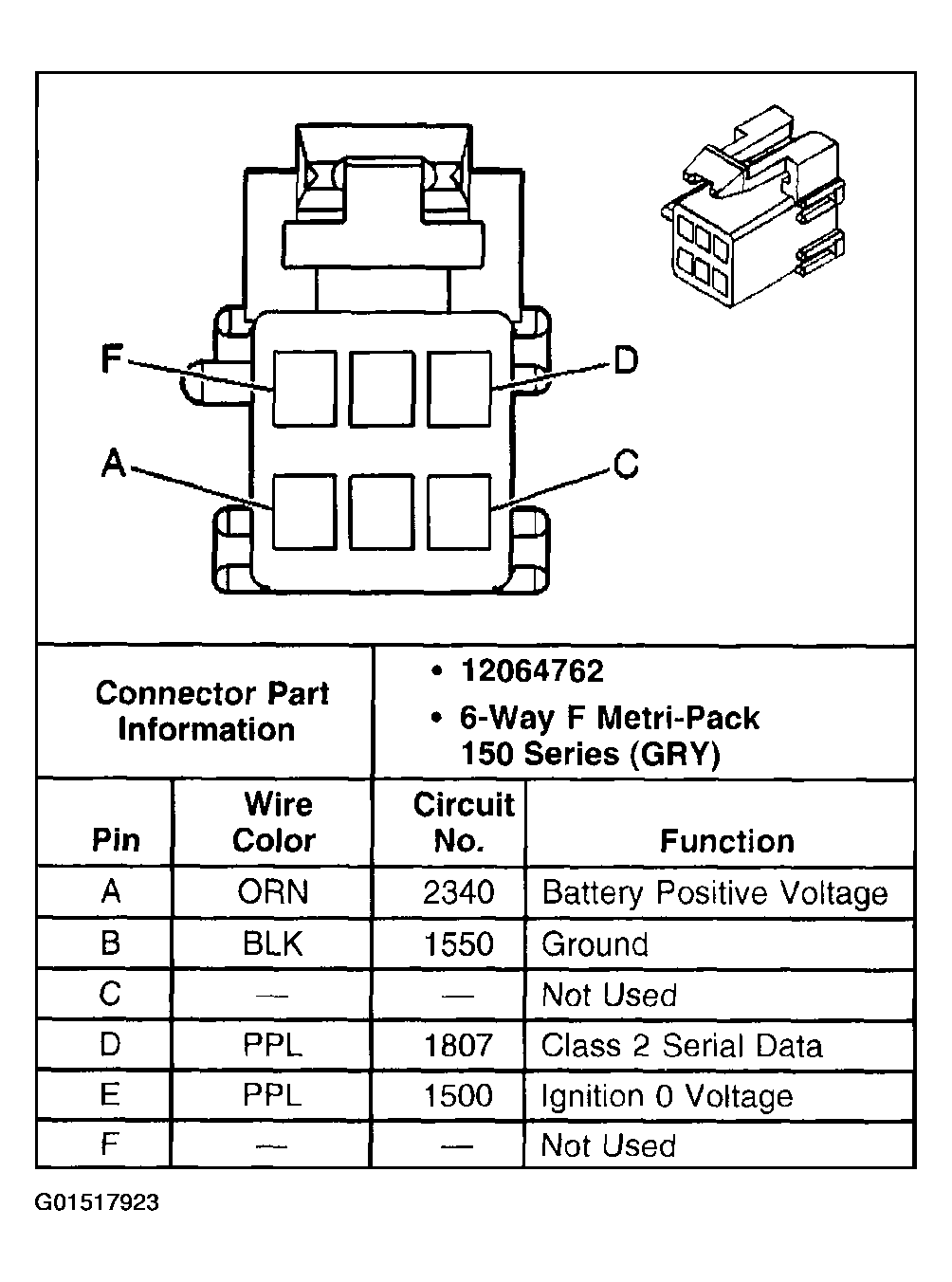

Fig 1: Theft Deterrent Control Module

G01517923

Courtesy of GENERAL MOTORS CORP.
