Sunroof Positioning Encoding Switch Connector End View

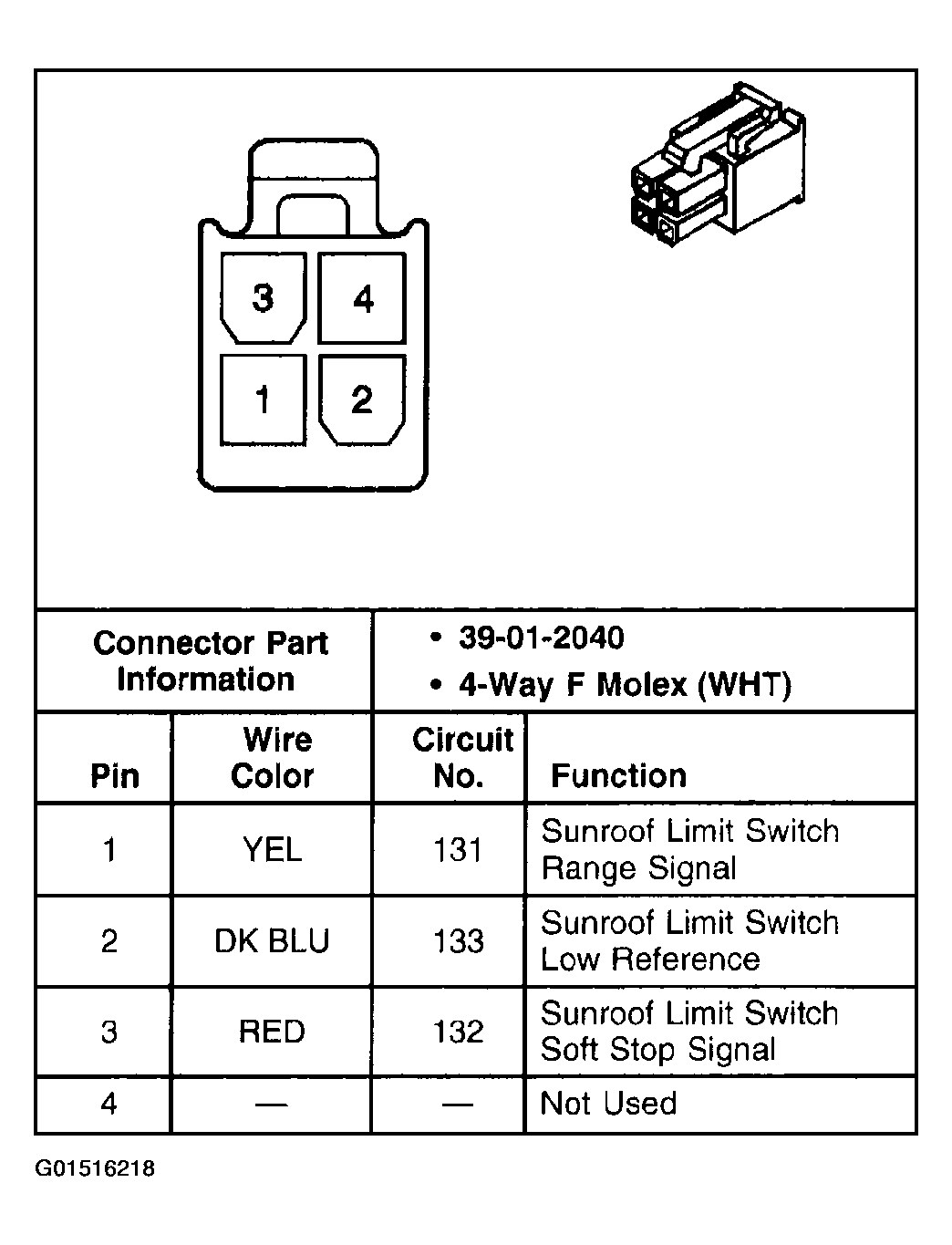

Fig 1: Sunroof Positioning Encoding Switch

G01516218

Courtesy of GENERAL MOTORS CORP.
