Memory Seat And Mirror Module Connector End View C2

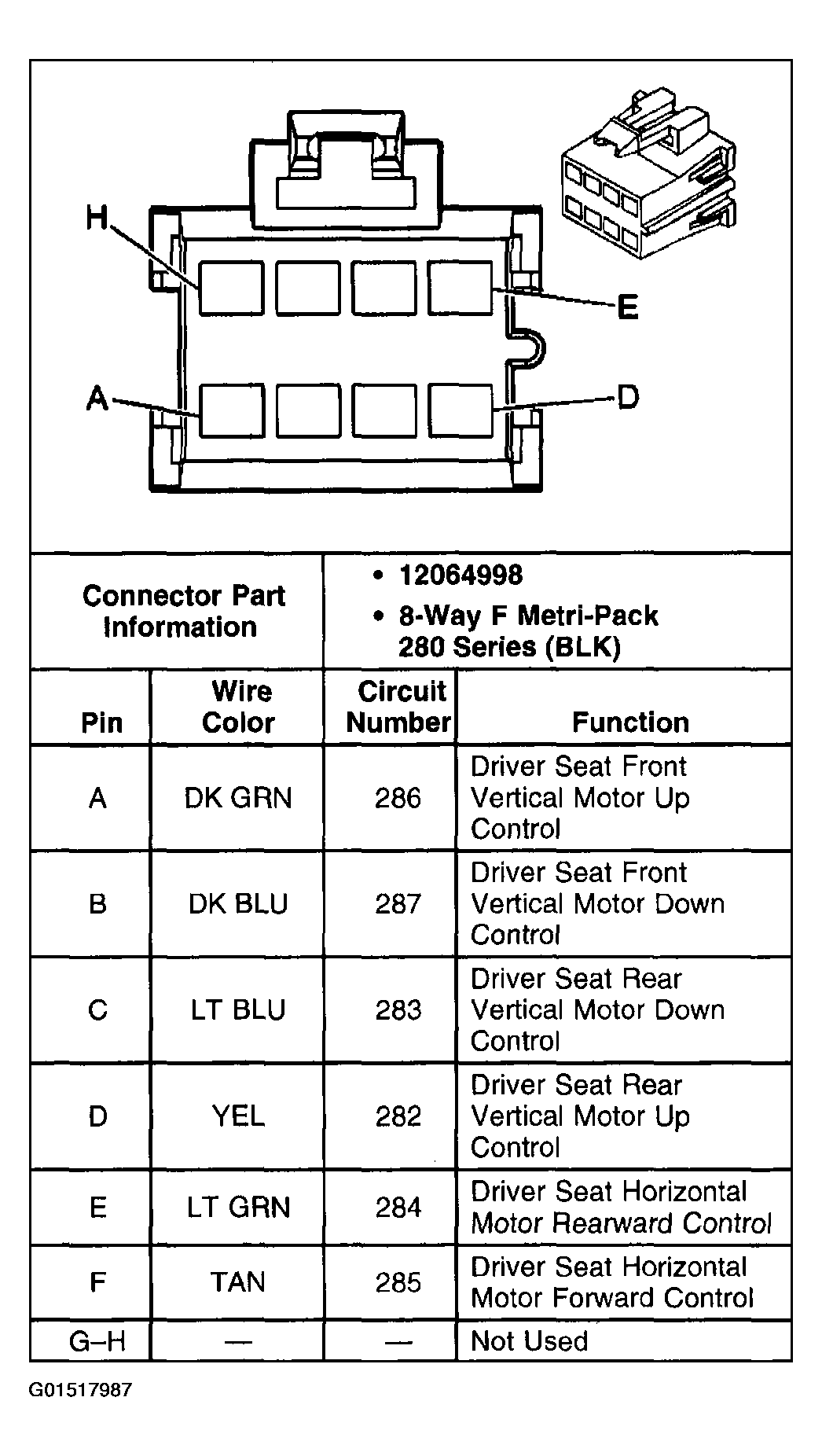

Fig 1: Memory Seat And Mirror Module C2 (A43)

G01517987

Courtesy of GENERAL MOTORS CORP.
