Memory Seat And Mirror Module Connector End View C1

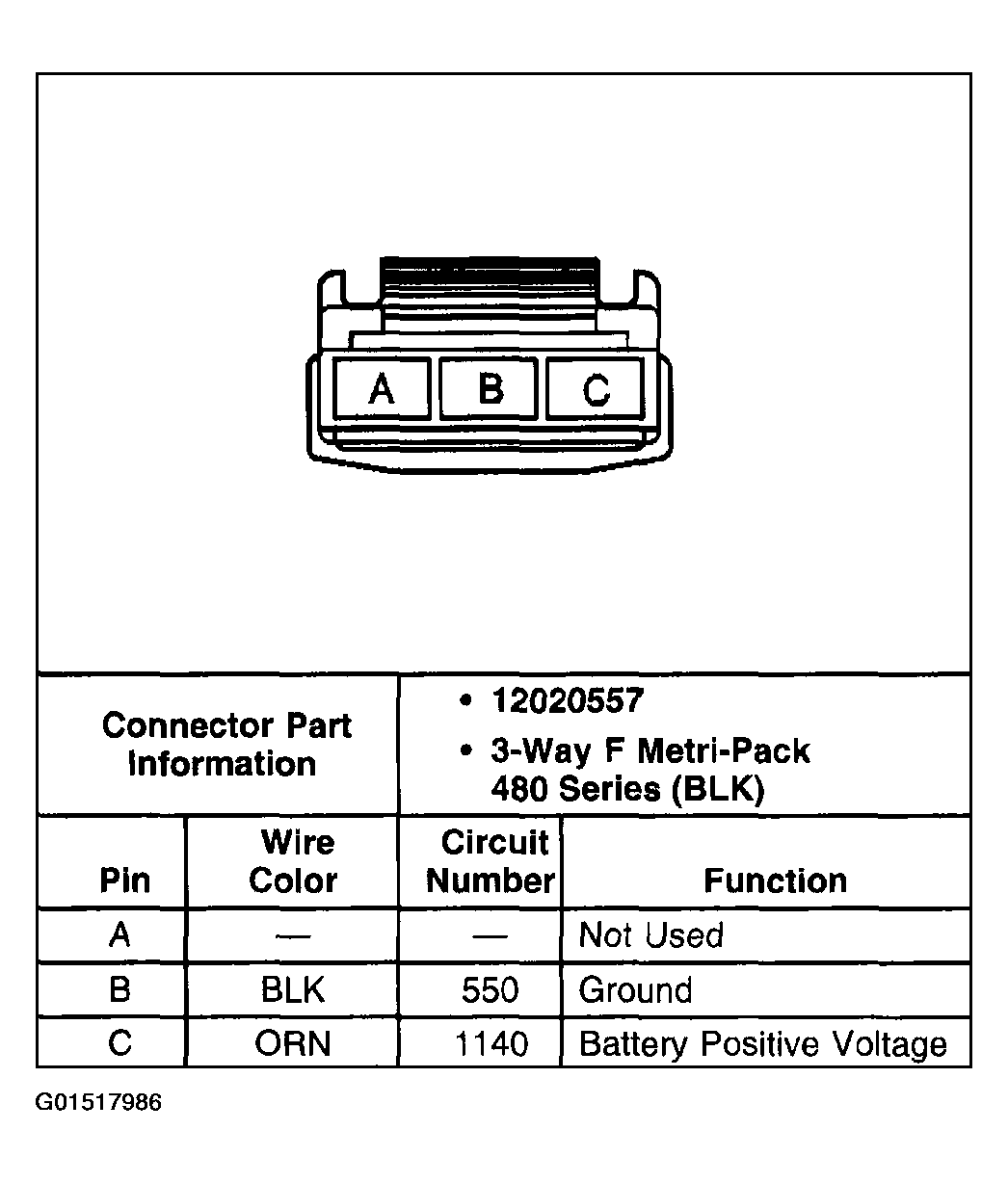

Fig 1: Memory Seat And Mirror Module C1 (A43)

G01517986

Courtesy of GENERAL MOTORS CORP.
