Ignition Control Module Connector End View C3

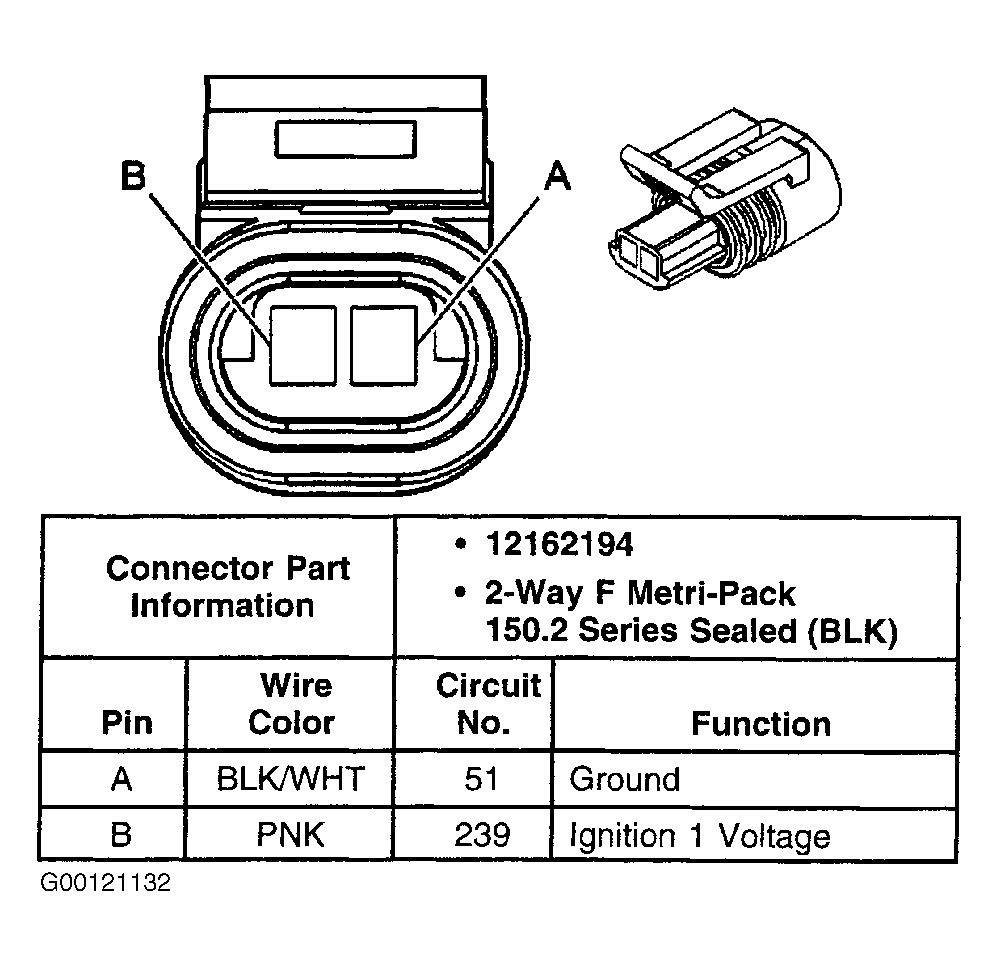

Fig 1: Ignition Control Module C3

G00121132

Courtesy of GENERAL MOTORS CORP.
