I/P Switch Assembly Connector End View C2

Fig 1: I/P Switch Assembly C2

G01517985

Courtesy of GENERAL MOTORS CORP.

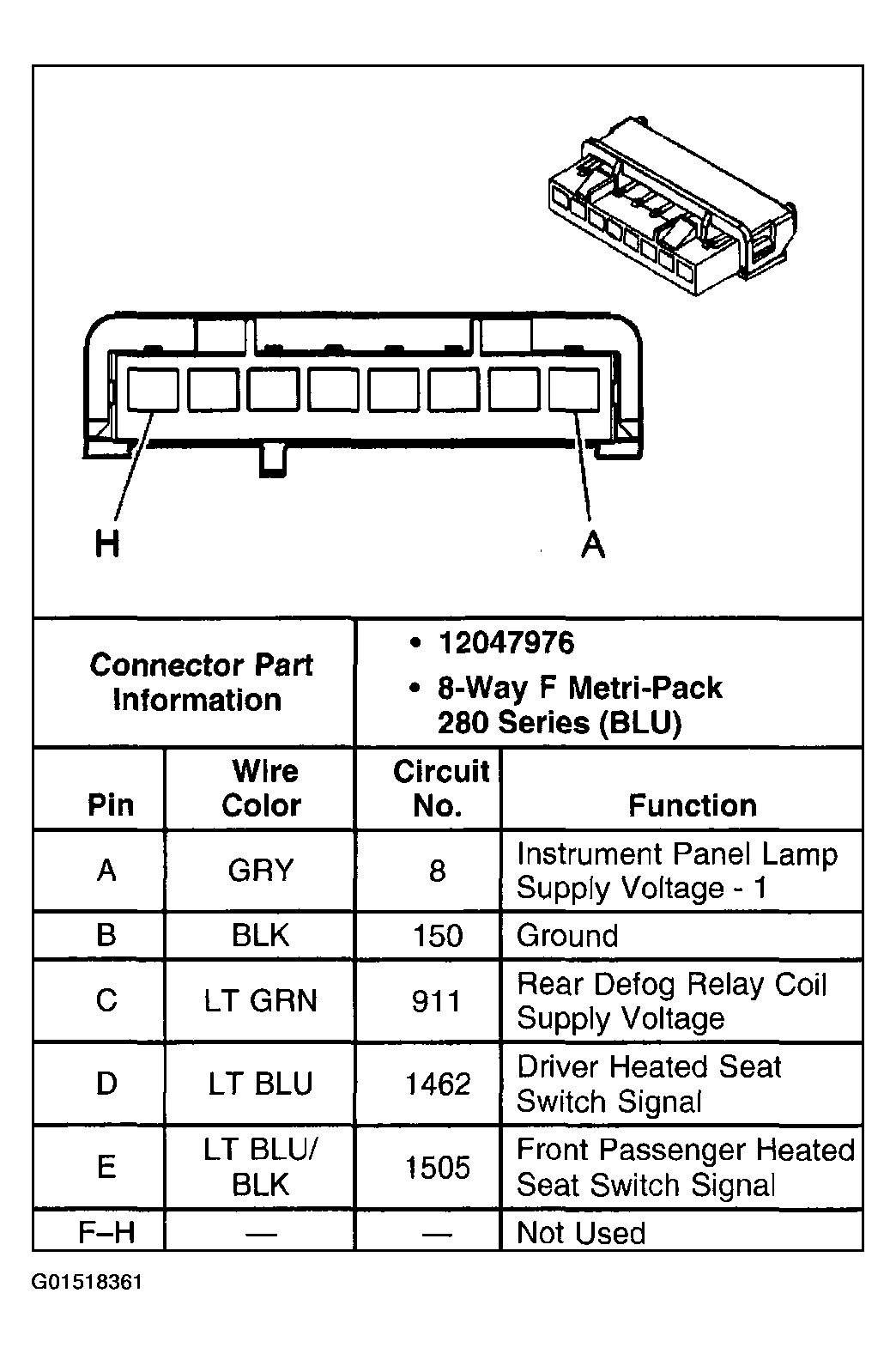

Fig 1: I/P Switch Assembly C2

G01518361

Courtesy of GENERAL MOTORS CORP.
