HVAC Control Module Connector End View - C2

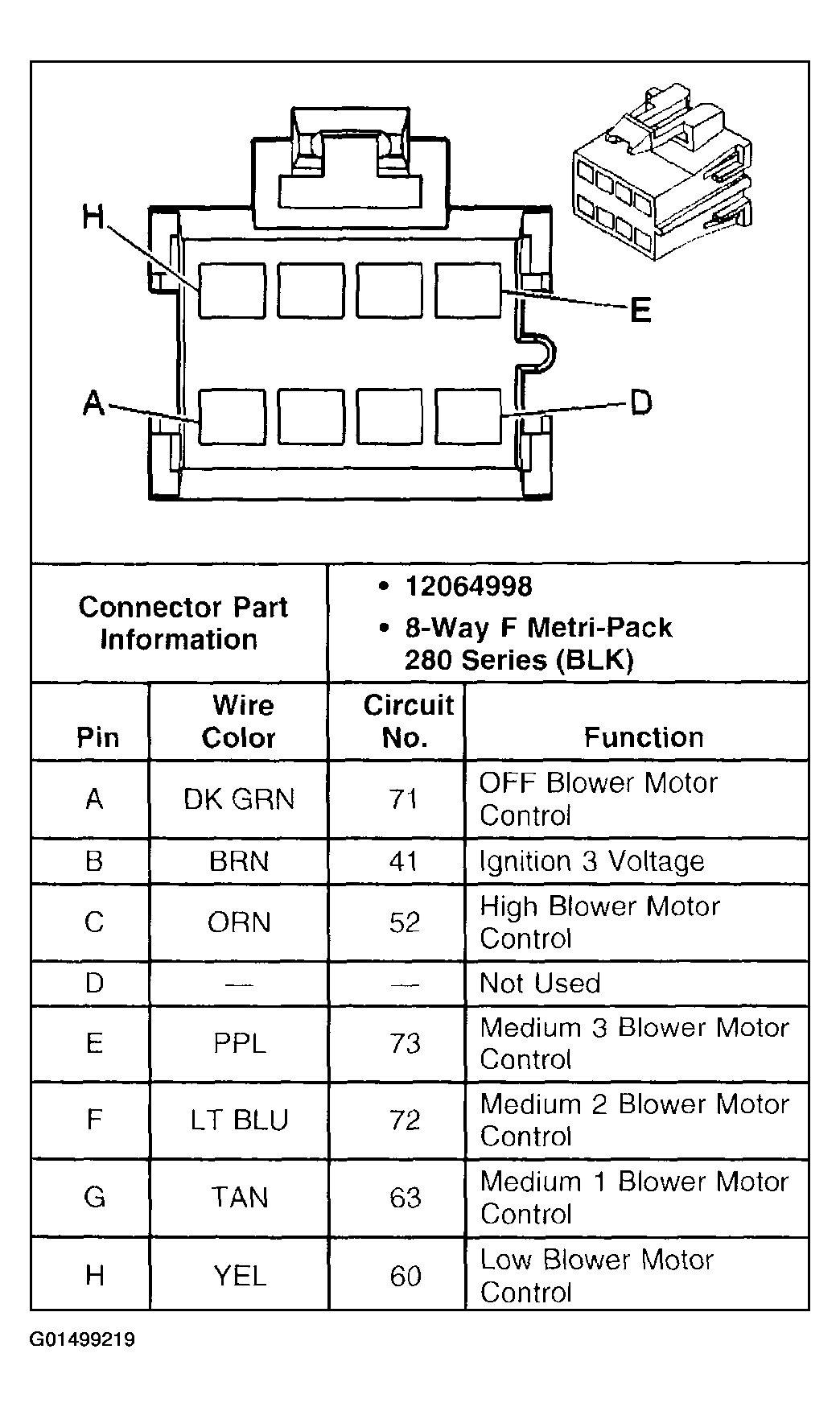

Fig 1: HVAC Control Module - C2

G01499219

Courtesy of GENERAL MOTORS CORP.

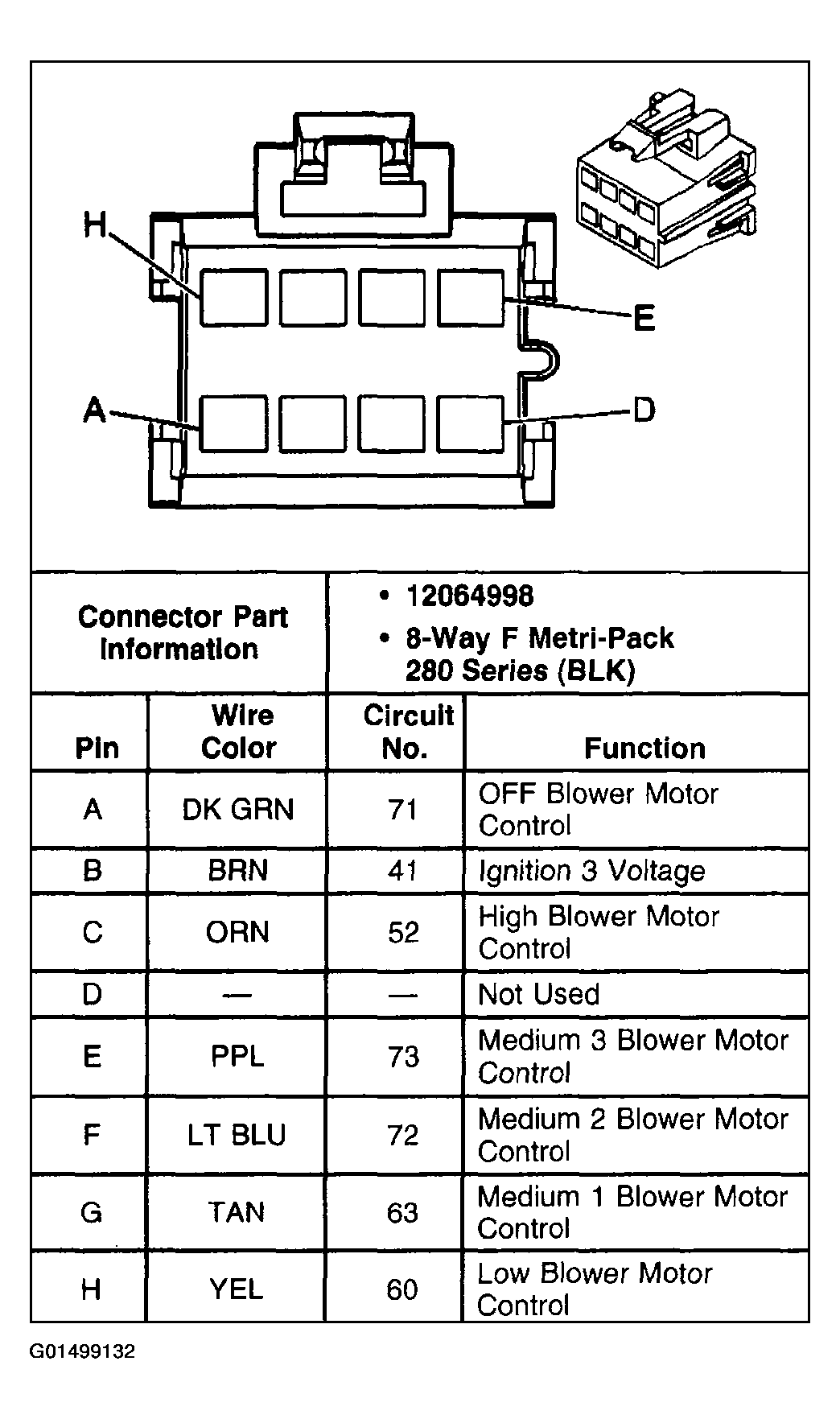

Fig 1: HVAC Control Module - C2

G01499132

Courtesy of GENERAL MOTORS CORP.
