HVAC Control Module Connector End View - C1

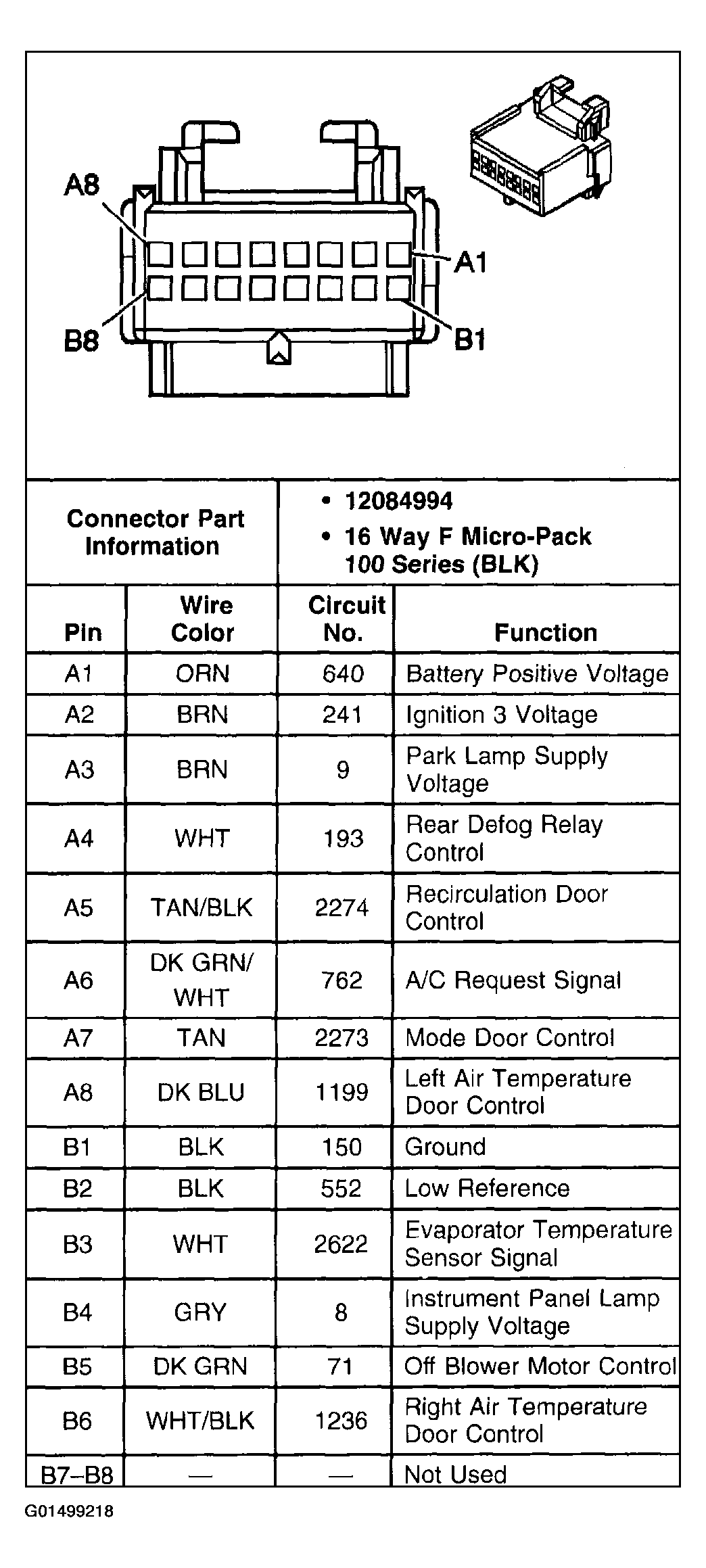

Fig 1: HVAC Control Module - C1

G01499218

Courtesy of GENERAL MOTORS CORP.

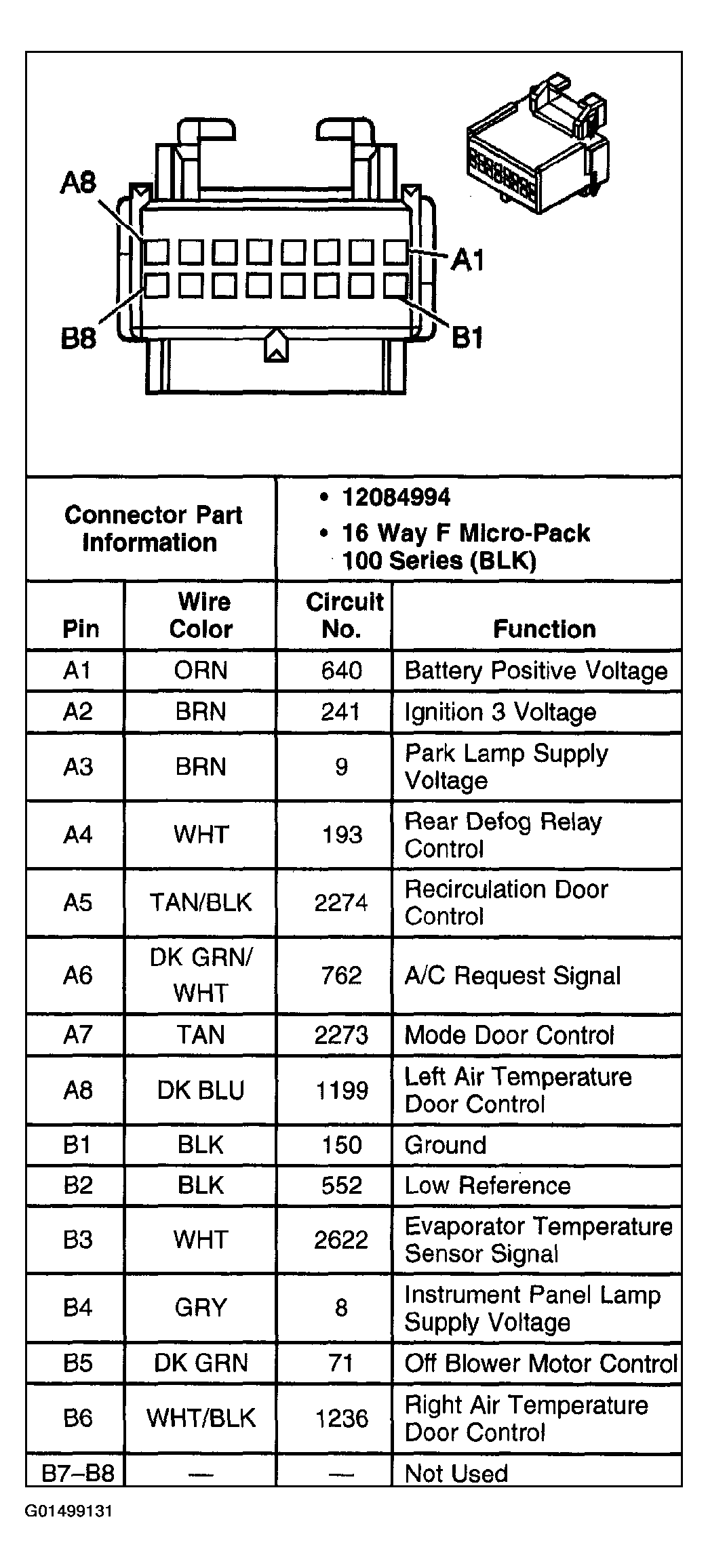

Fig 1: HVAC Control Module - C1

G01499131

Courtesy of GENERAL MOTORS CORP.
