Body Control Module Connector End View C1

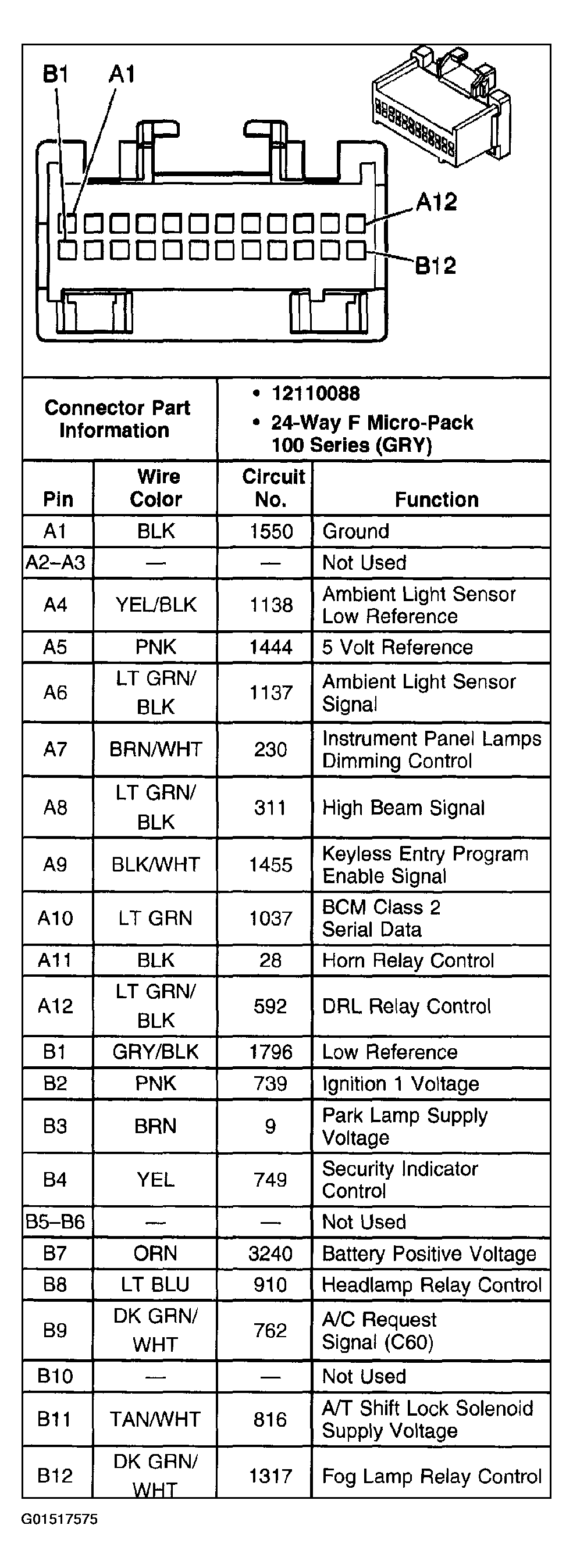

Fig 1: Body Control Module C1

G01517575

Courtesy of GENERAL MOTORS CORP.
