Body Control Module Connector End View C0

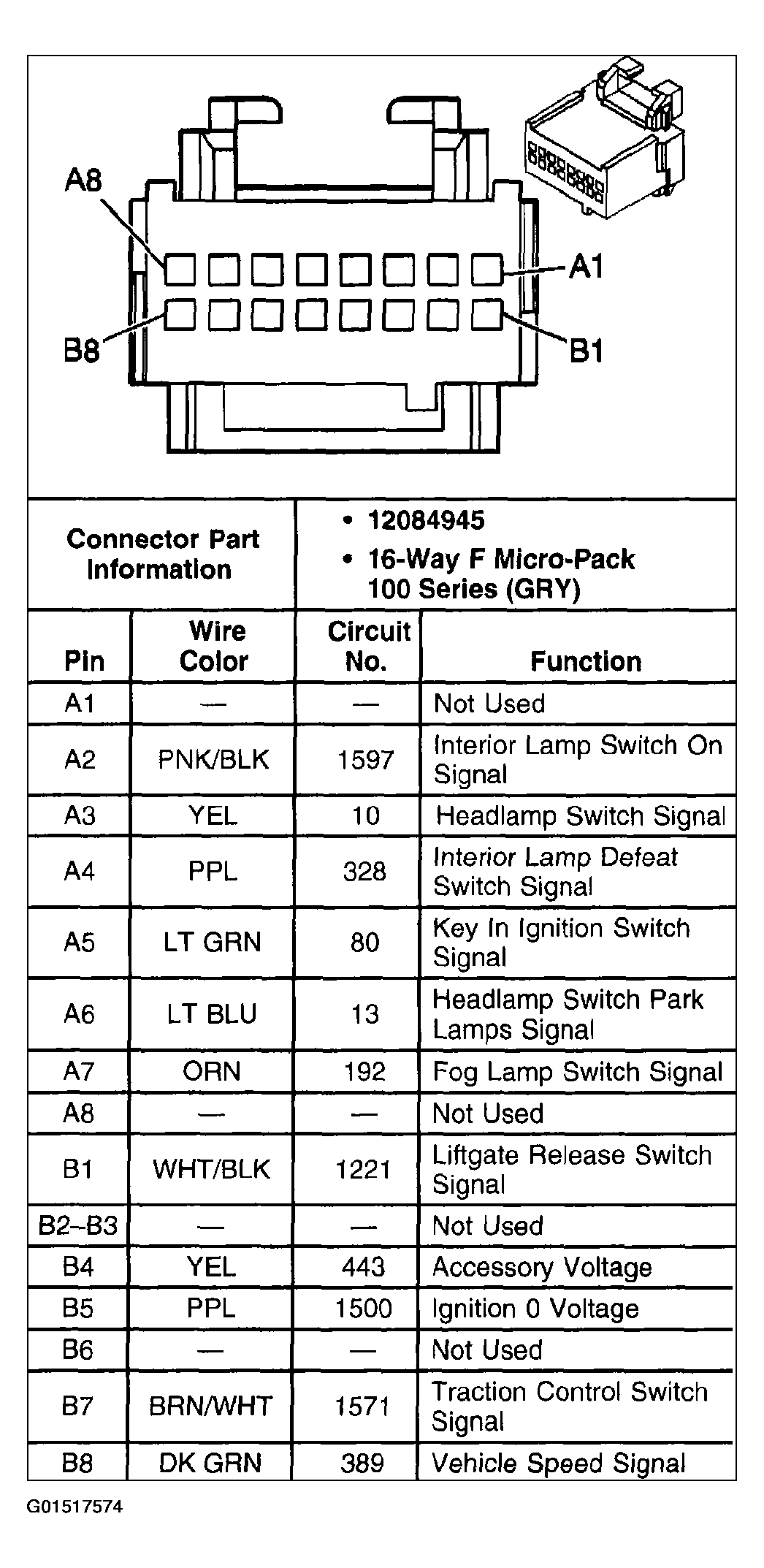

Fig 1: Body Control Module C0

G01517574

Courtesy of GENERAL MOTORS CORP.
