HVAC Control Module Scan Tool Output Controls

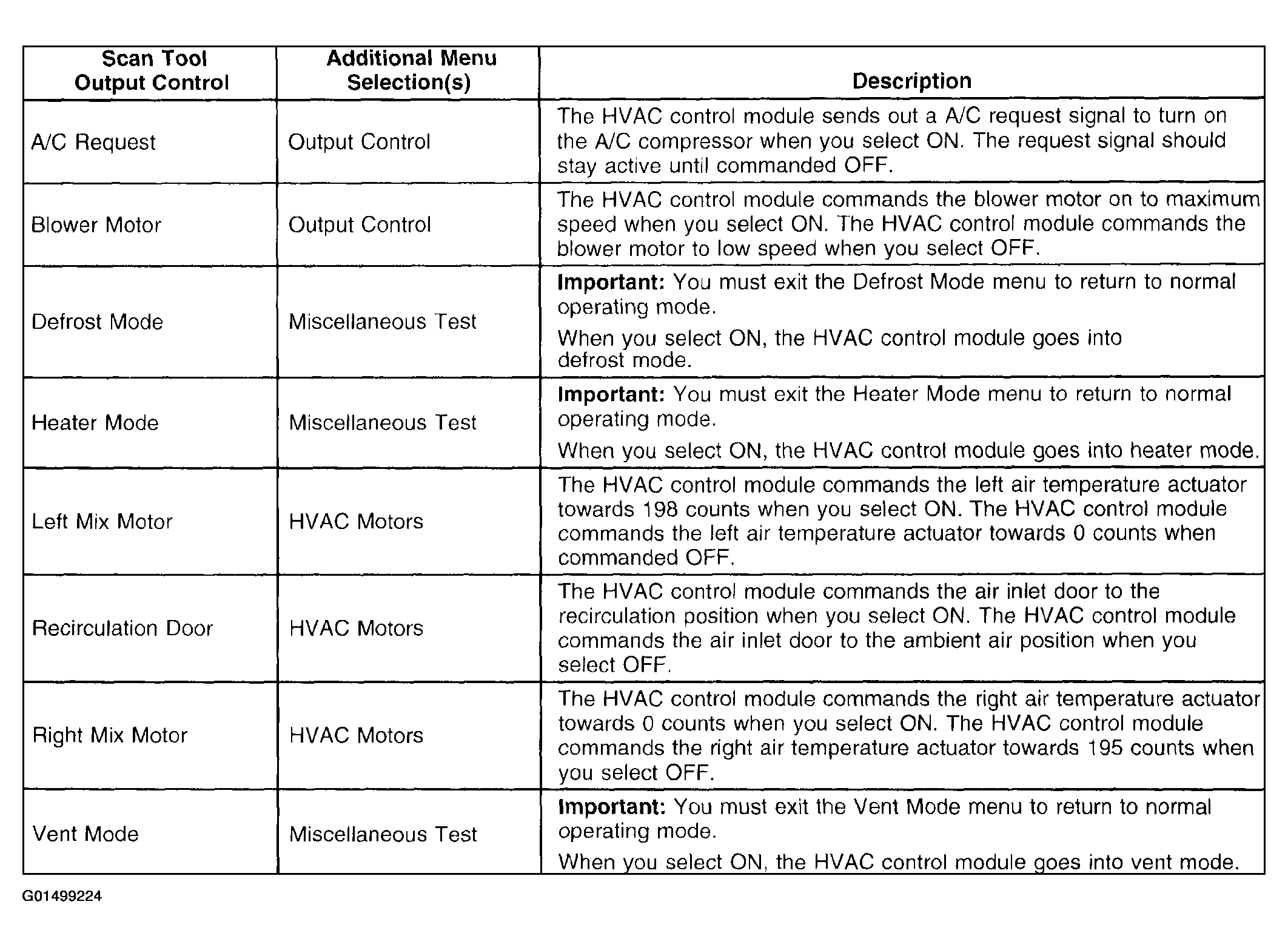

Fig 1: HVAC Control Module Scan Tool Output Controls

G01499224

Courtesy of GENERAL MOTORS CORP.
