EGR Pintle Position Sensor

This sensor is mounted inside the linear EGR valve and informs PCM of EGR pintle movement. PCM uses this information to control EGR flow. See Fig 1 .

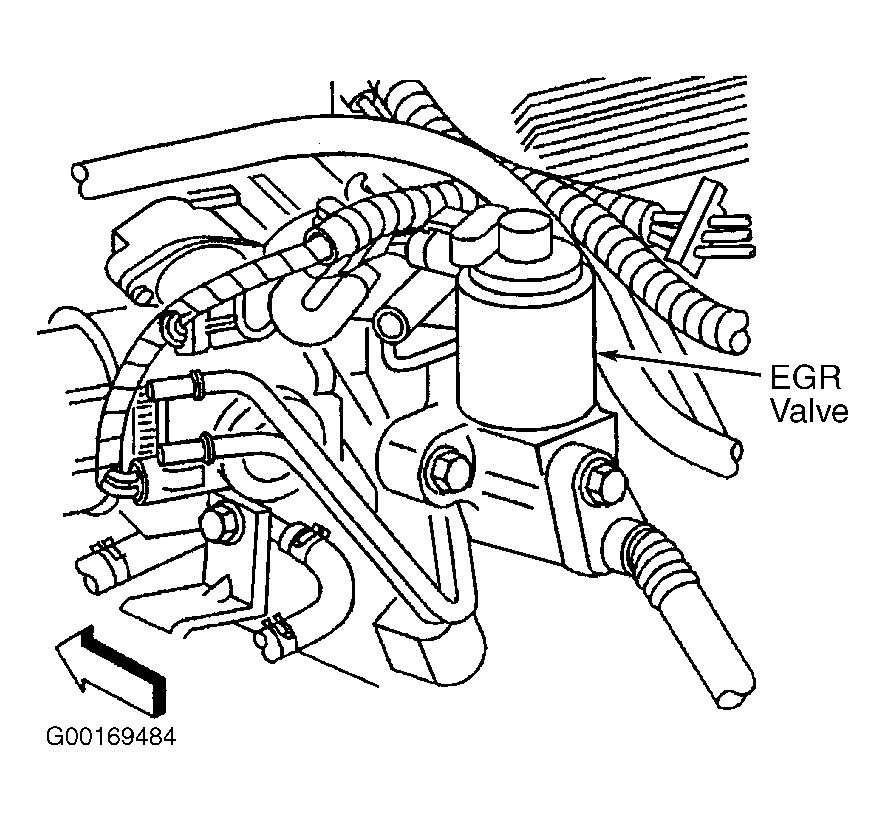

Fig 1: Locating EGR Valve
G00169484Courtesy of GENERAL MOTORS CORP.
