Scan Tool Output Controls

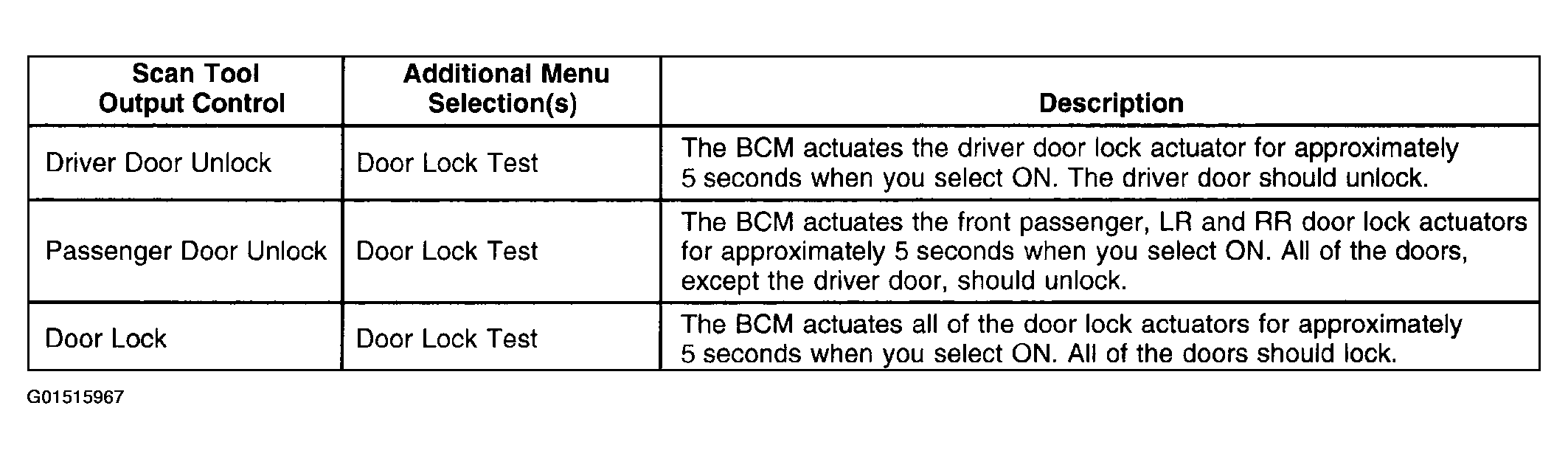

Fig 1: Scan Tool Output Controls Table - Body Control Module
G01515967Courtesy of GENERAL MOTORS CORP.

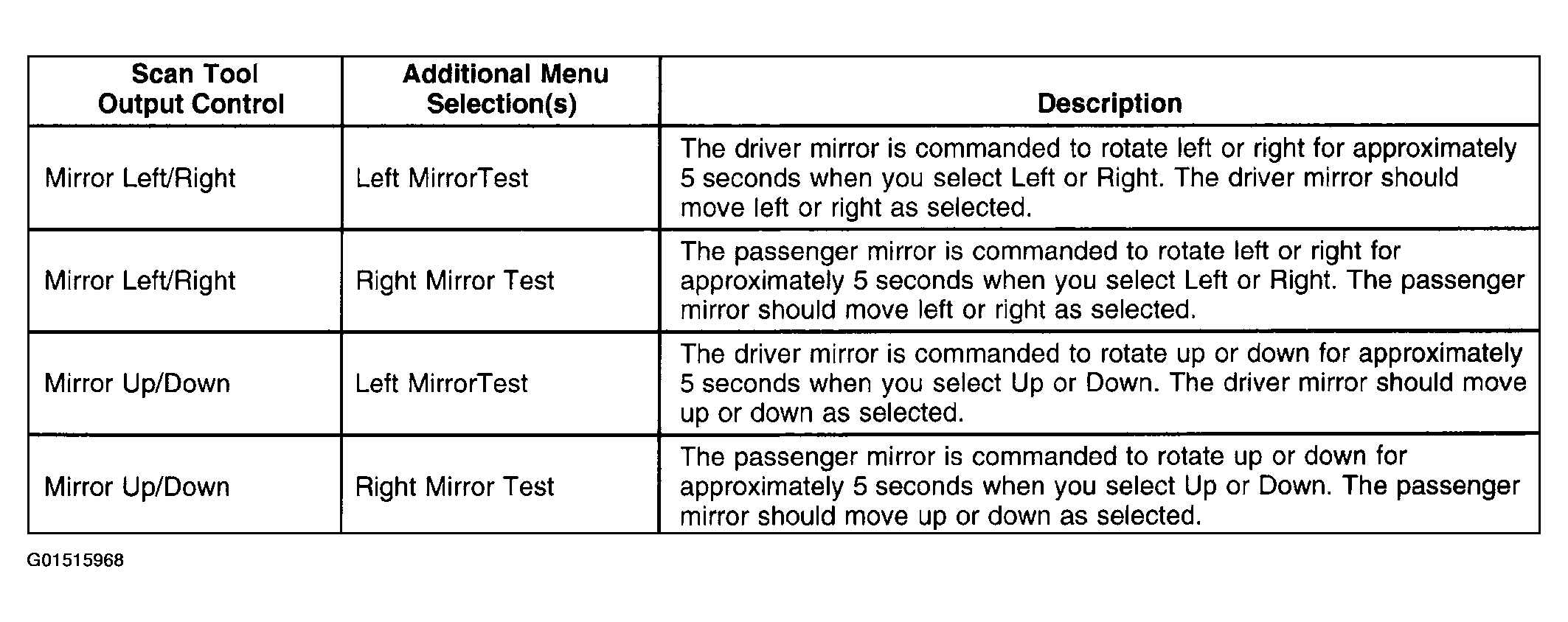

Fig 2: Scan Tool Output Controls Table - Memory Seat Module
G01515968Courtesy of GENERAL MOTORS CORP.
