A/T Shift Lock Control Solenoid - Aztek

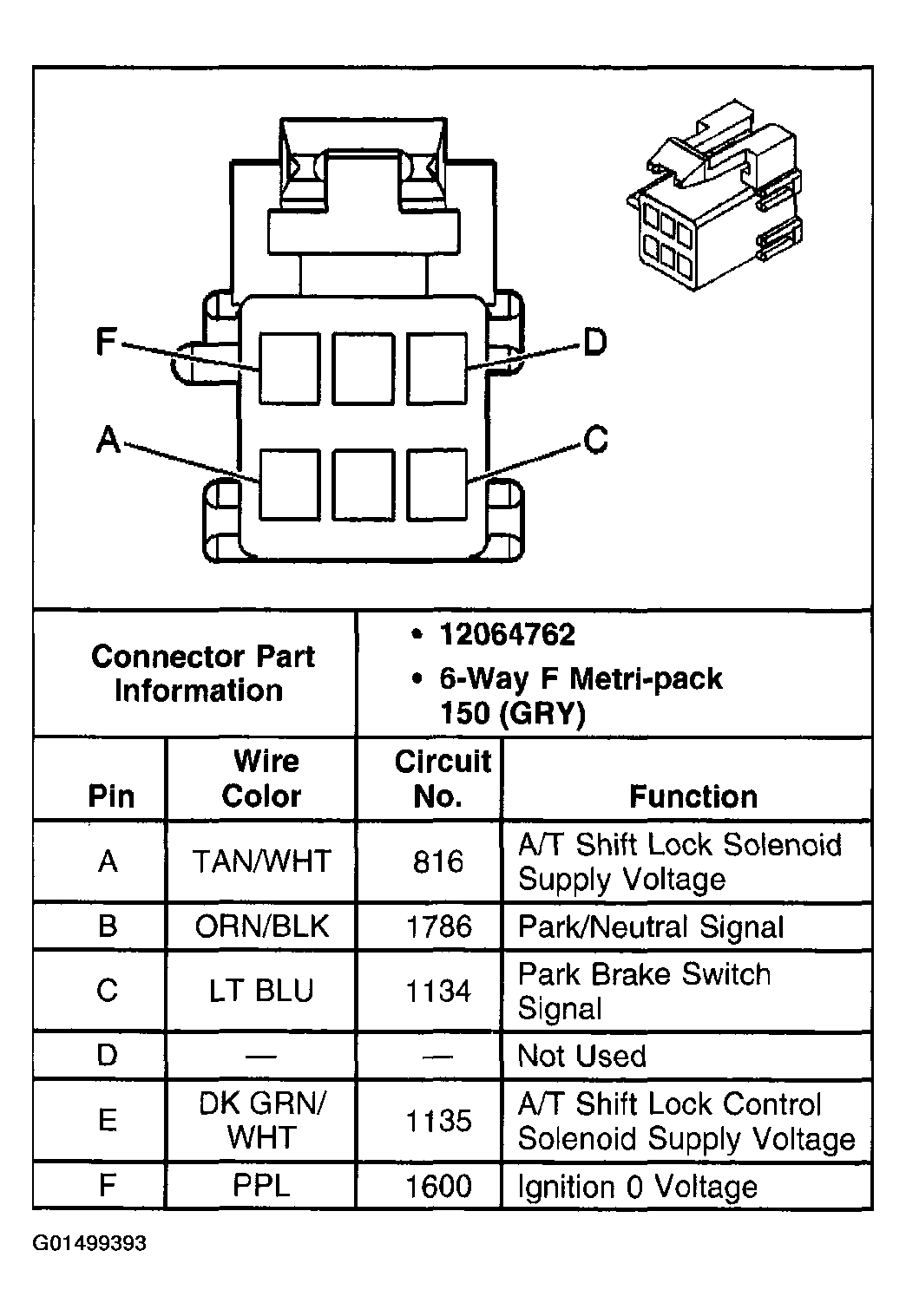

Fig 1: Identifying A/T Shift Lock Control Solenoid Terminals - Aztek
G01499393Courtesy of GENERAL MOTORS CORP.
