Installation Procedure

  1. Position the wiper system drive module to the cowl.
  2. Install the wiper system drive module bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Connect the wiper motor cover electrical connector.
  4. Install the cruise control module and bracket. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  5. Install the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  7. Install the wiper arms. Refer to WIPER ARM REPLACEMENT  .

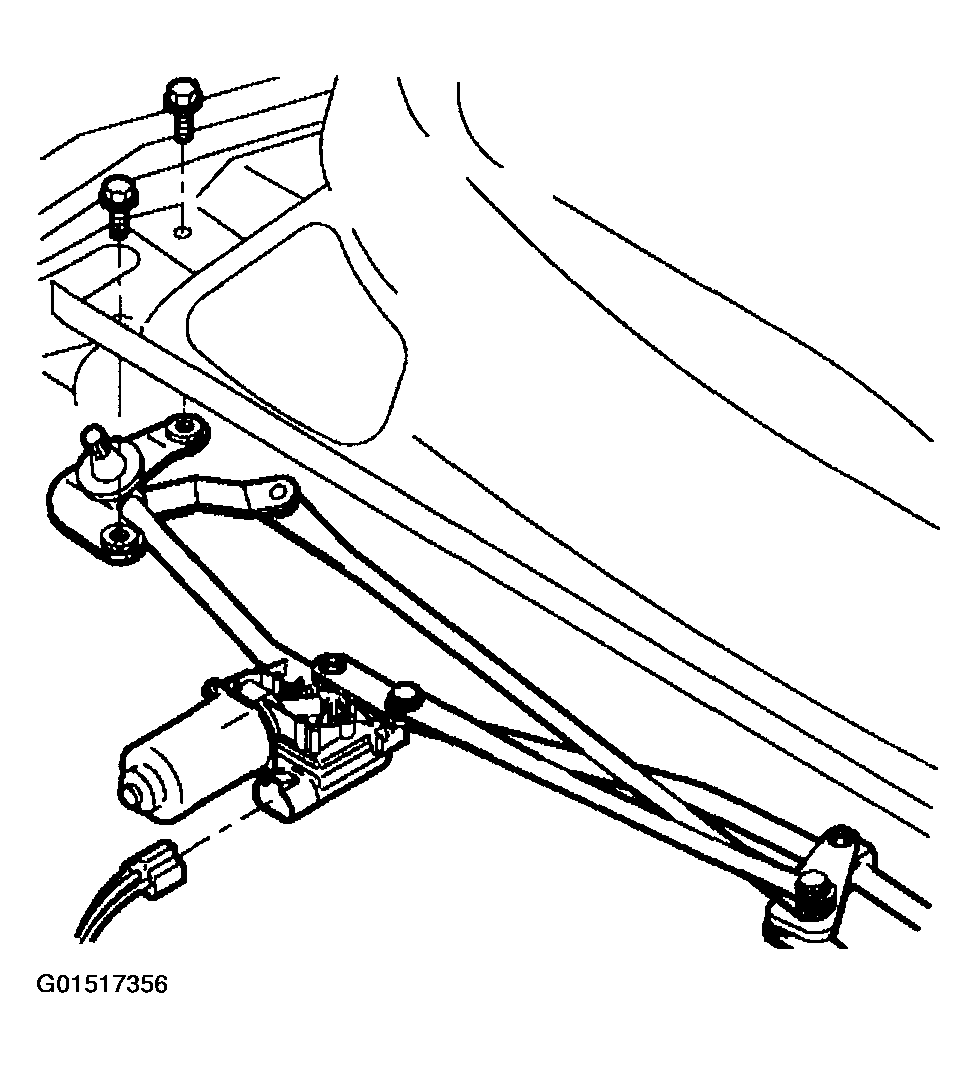

    Fig 1: Positioning Wiper System Drive Module To Cowl
    G01517356Courtesy of GENERAL MOTORS CORP.
