Wiper/Washer System Connector End Views

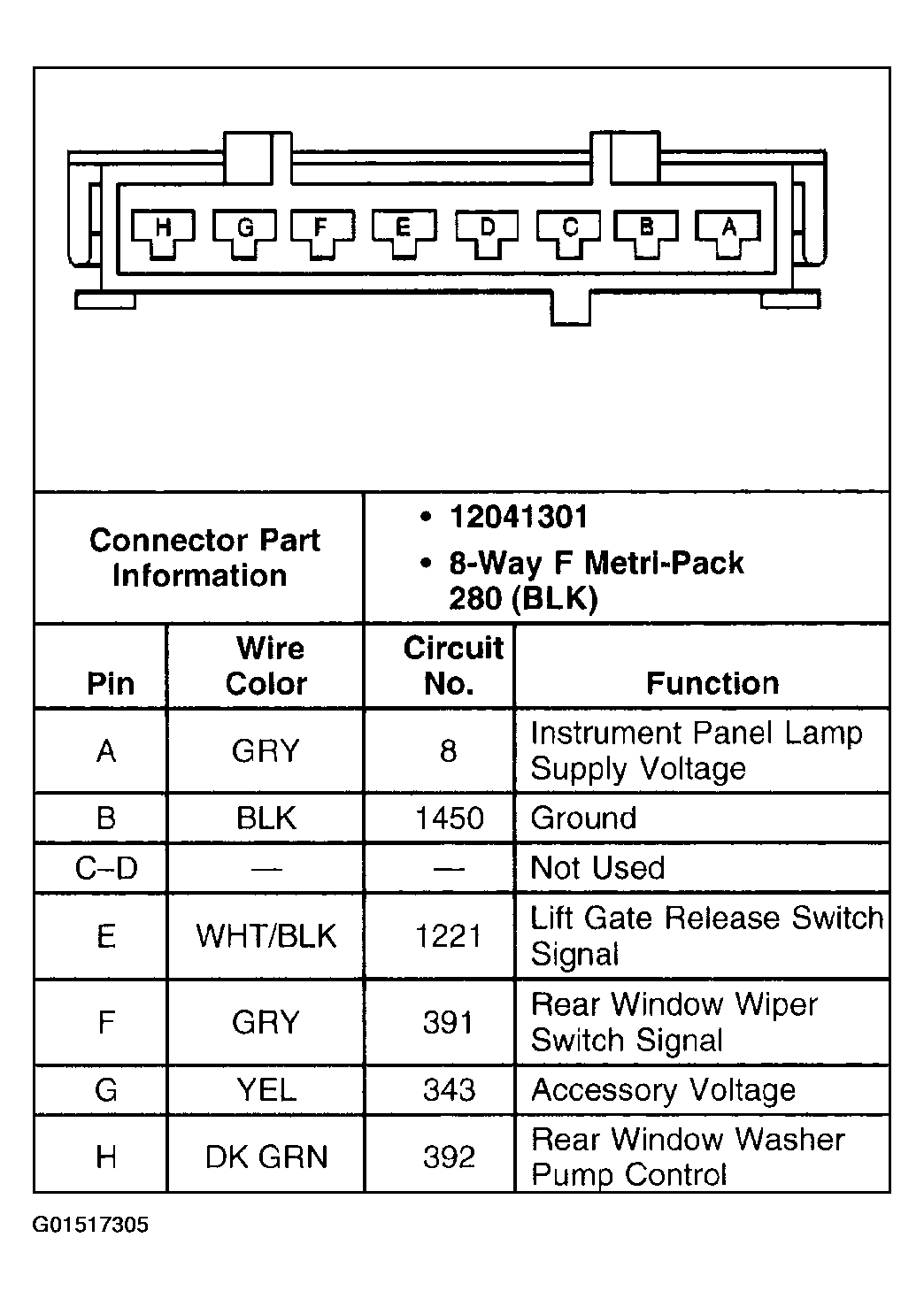

Fig 1: Identifying Instrument Panel Switch Assembly C1 Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Rear Window Washer Fluid Pump Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

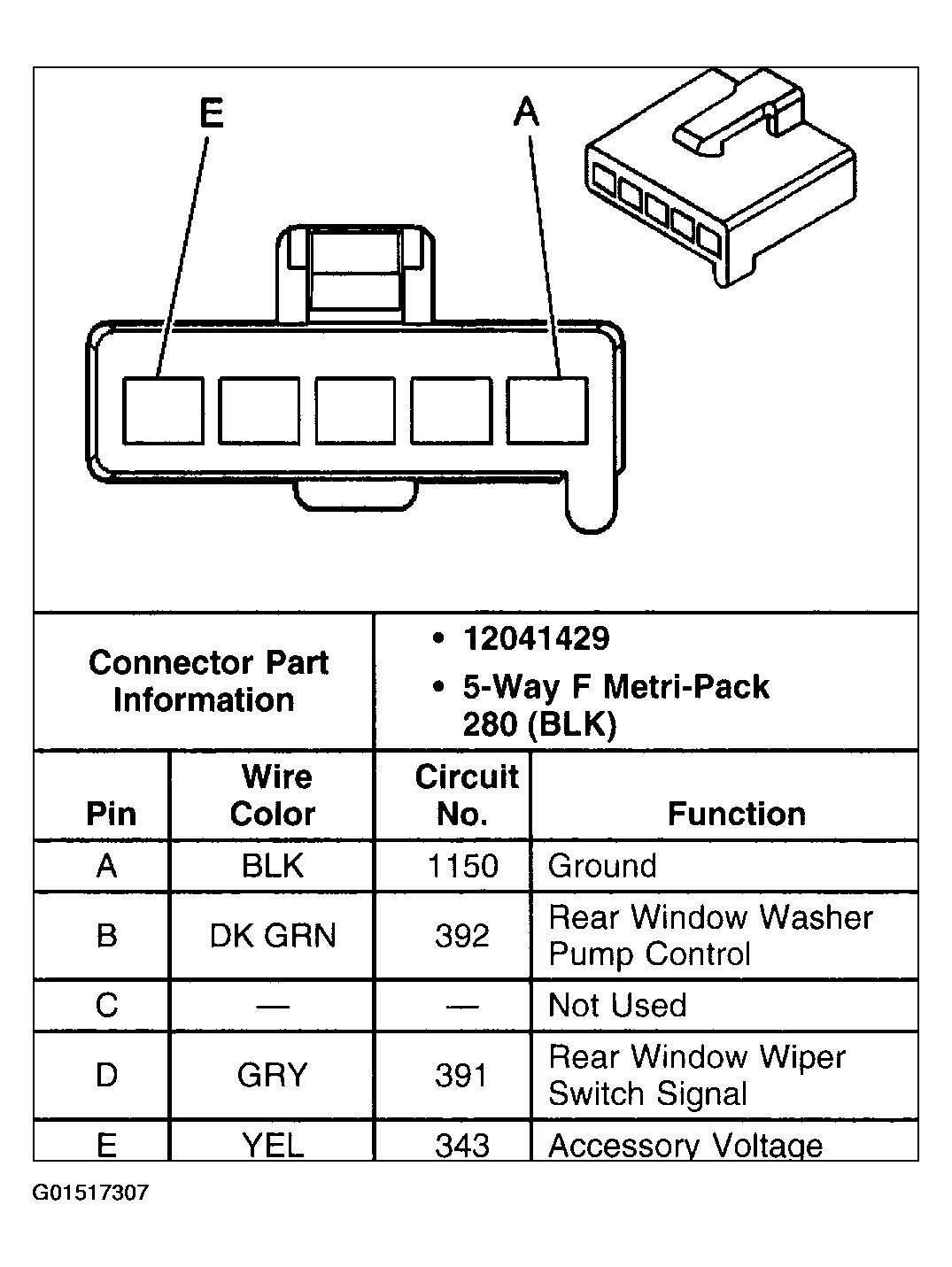

Fig 3: Identifying Rear Window Wiper Motor Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Windshield Washer Fluid Level Switch Harness Connector

Courtesy of GENERAL MOTORS CORP.

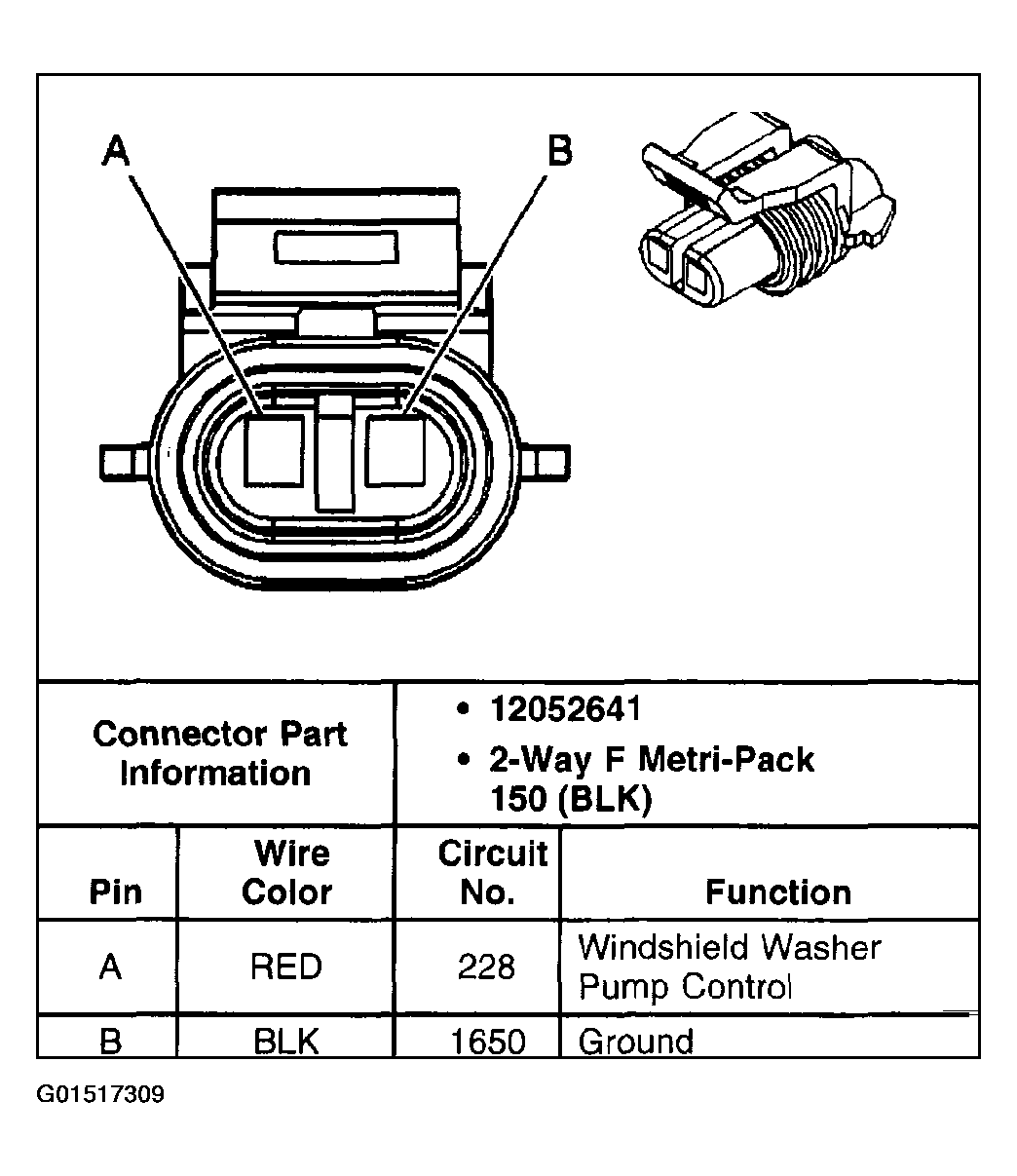

Fig 5: Identifying Windshield Washer Fluid Pump Harness Connector

Courtesy of GENERAL MOTORS CORP.

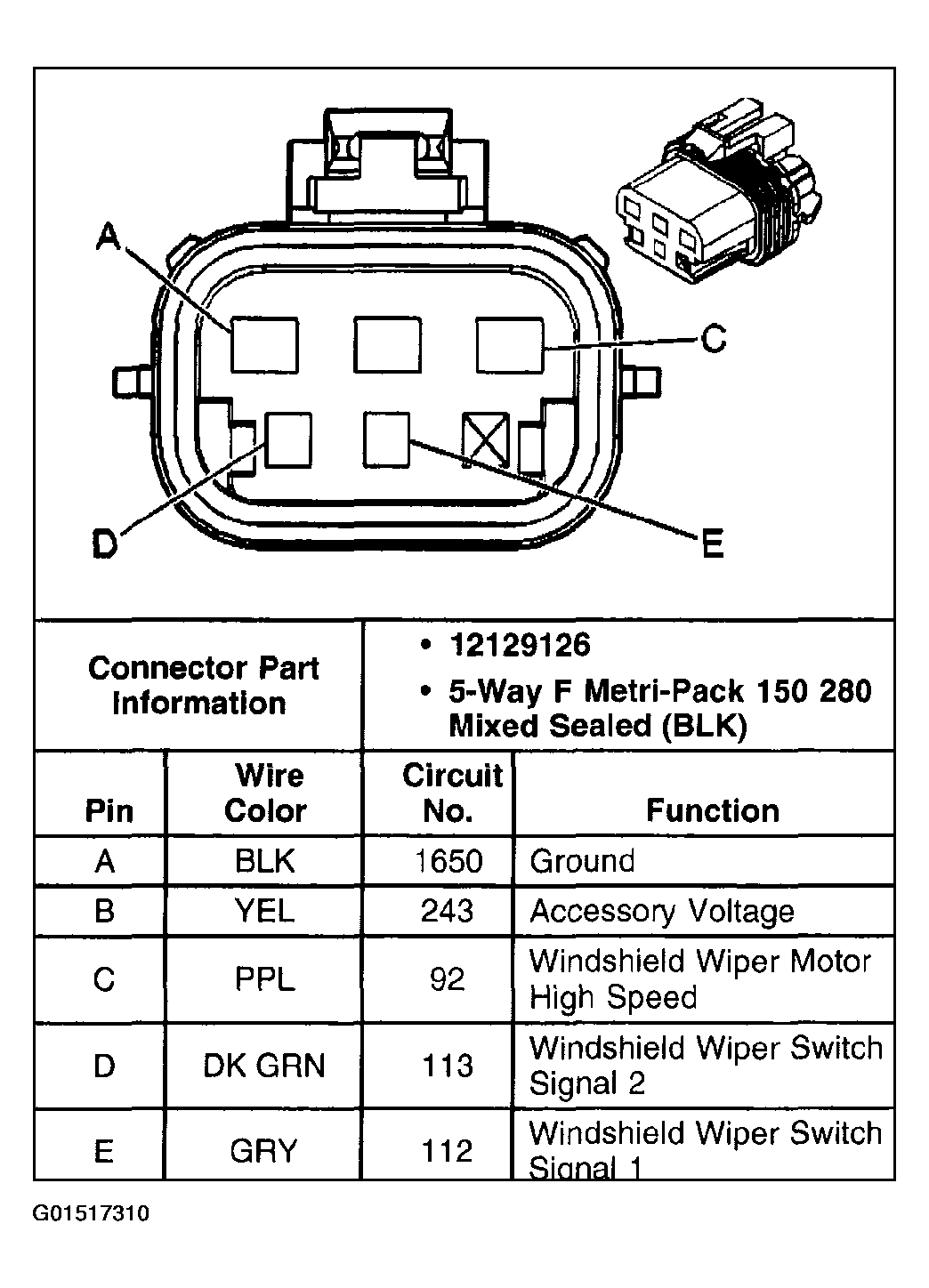

Fig 6: Identifying Windshield Wiper Motor Harness Connector

Courtesy of GENERAL MOTORS CORP.

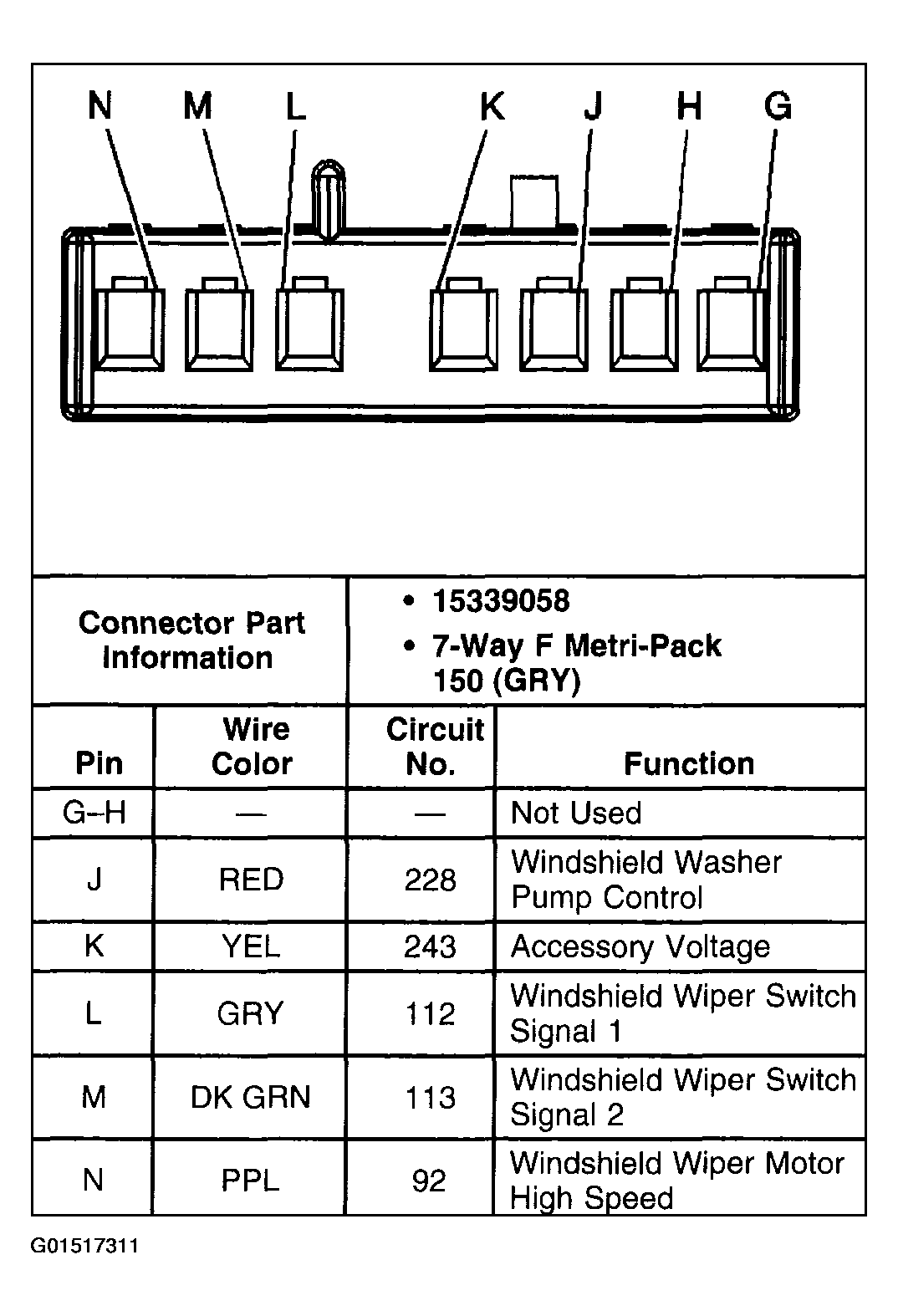

Fig 7: Identifying Turn Signal/Multifunction Switch C3 Harness Connector

Courtesy of GENERAL MOTORS CORP.
