Wiper/Washer System Component Views

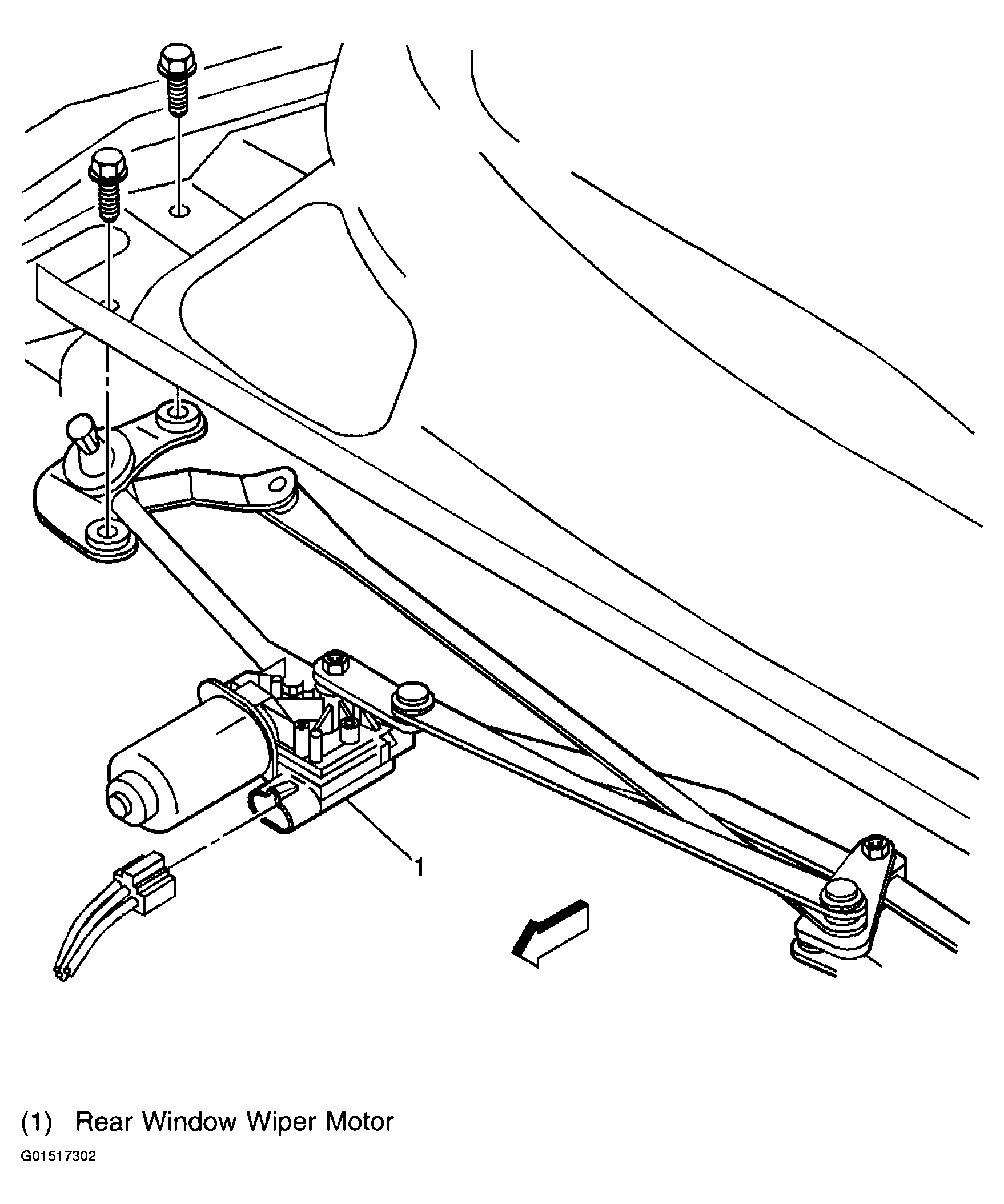

Fig 1: Locating Windshield Wiper Motor
G01517302Courtesy of GENERAL MOTORS CORP.

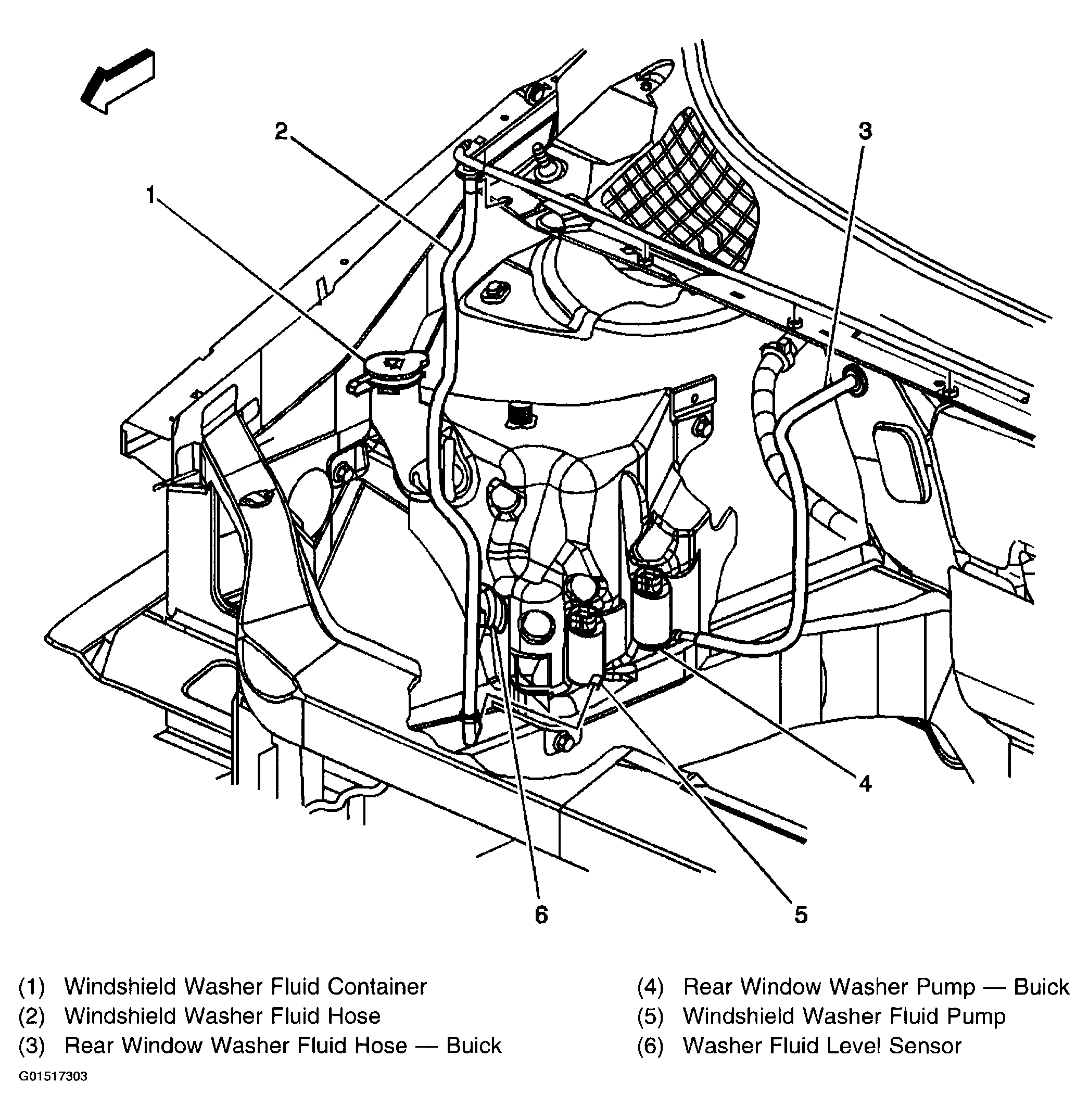

Fig 2: Locating Windshield Washer Fluid Pump
G01517303Courtesy of GENERAL MOTORS CORP.

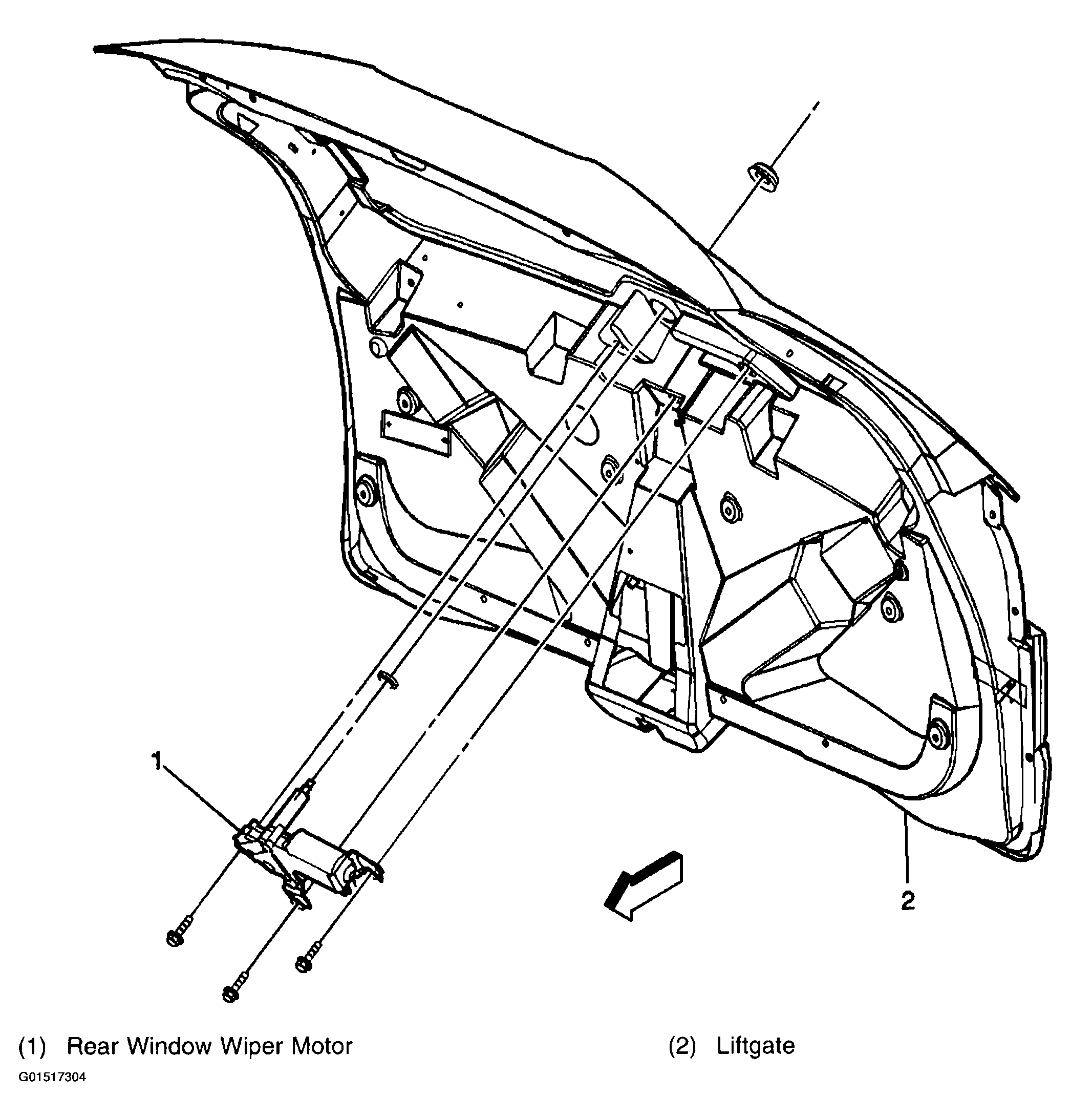

Fig 3: Locating Rear Window Wiper Motor - Buick
G01517304Courtesy of GENERAL MOTORS CORP.
