Cellular Communication Component Views

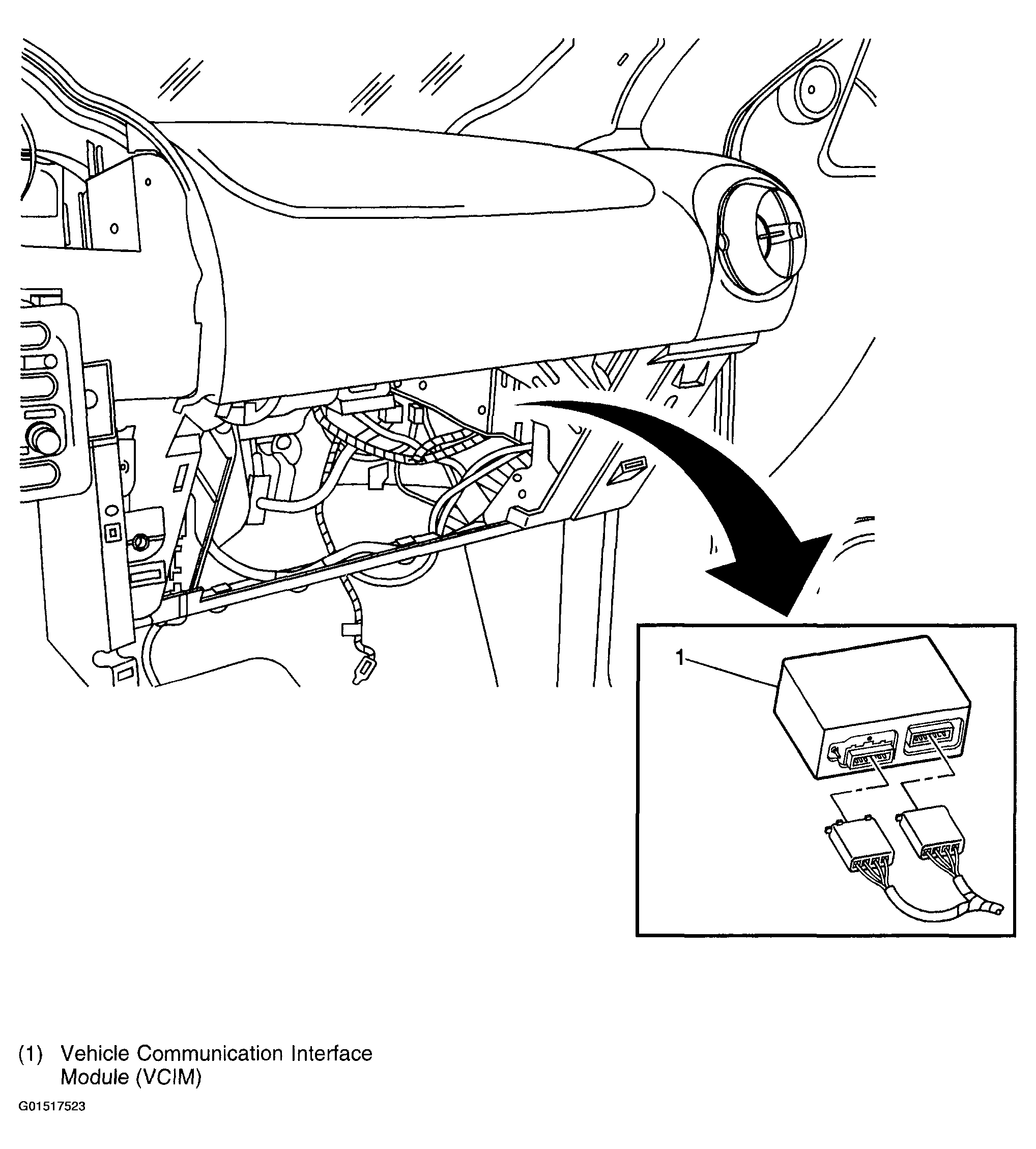

Fig 1: Exploded View Of Passenger Side of I/P Components

G01517523

Courtesy of GENERAL MOTORS CORP.

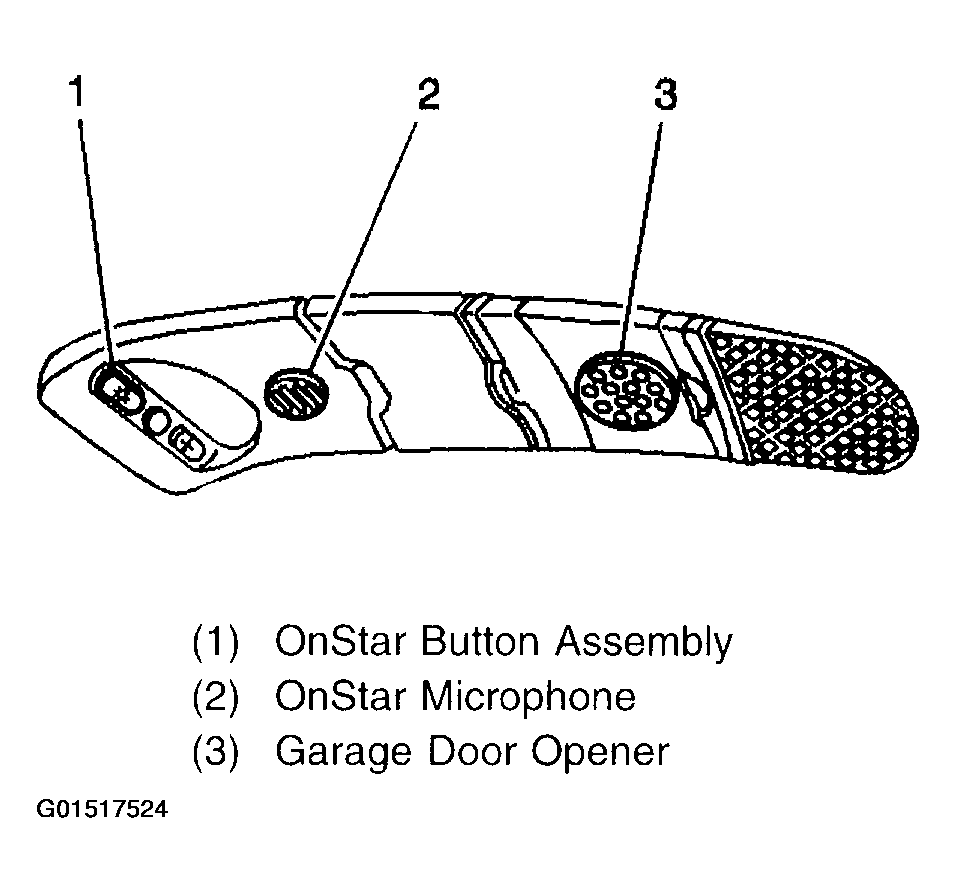

Fig 2: Identifying Overhead Console

G01517524

Courtesy of GENERAL MOTORS CORP.
