Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 1. Be sure that the original ignition key issued with the vehicle is used when performing the Theft Deterrent Diagnostic System Check.
  2. 3. The theft deterrent control module must be programmed to the vehicle.

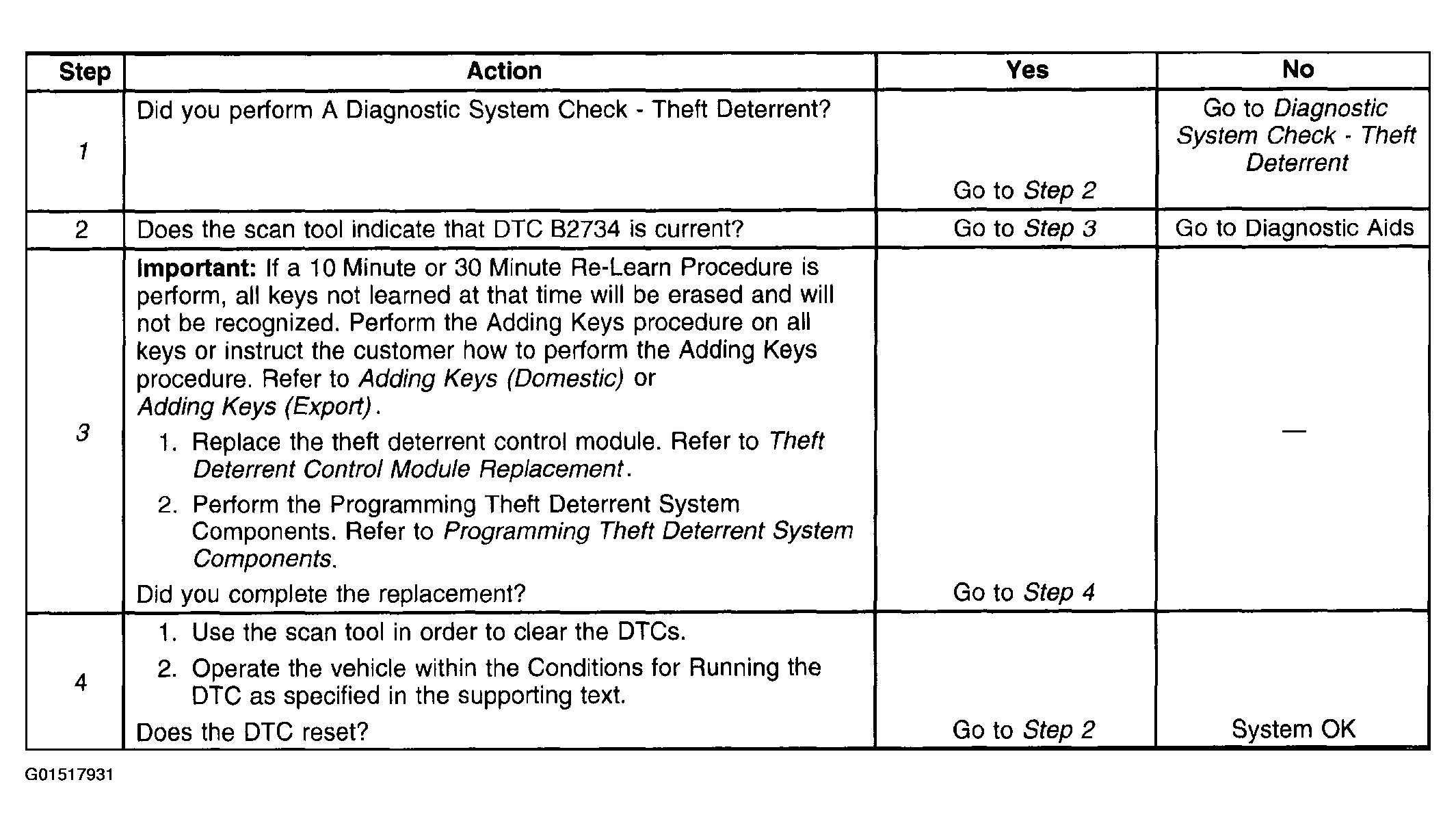

    Fig 1: DTC B2734 Diagnosis
    G01517931Courtesy of GENERAL MOTORS CORP.
