Front Toe Adjustment

  1. Ensure that the steering wheel is set in a straight ahead position.
  2. Loosen the tie rod jam nut (5).
  3. Adjust the toe to specification by turning the adjuster (6). Refer to Wheel Alignment Specifications .
  4. Install the tie rod jam nut (5). Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).

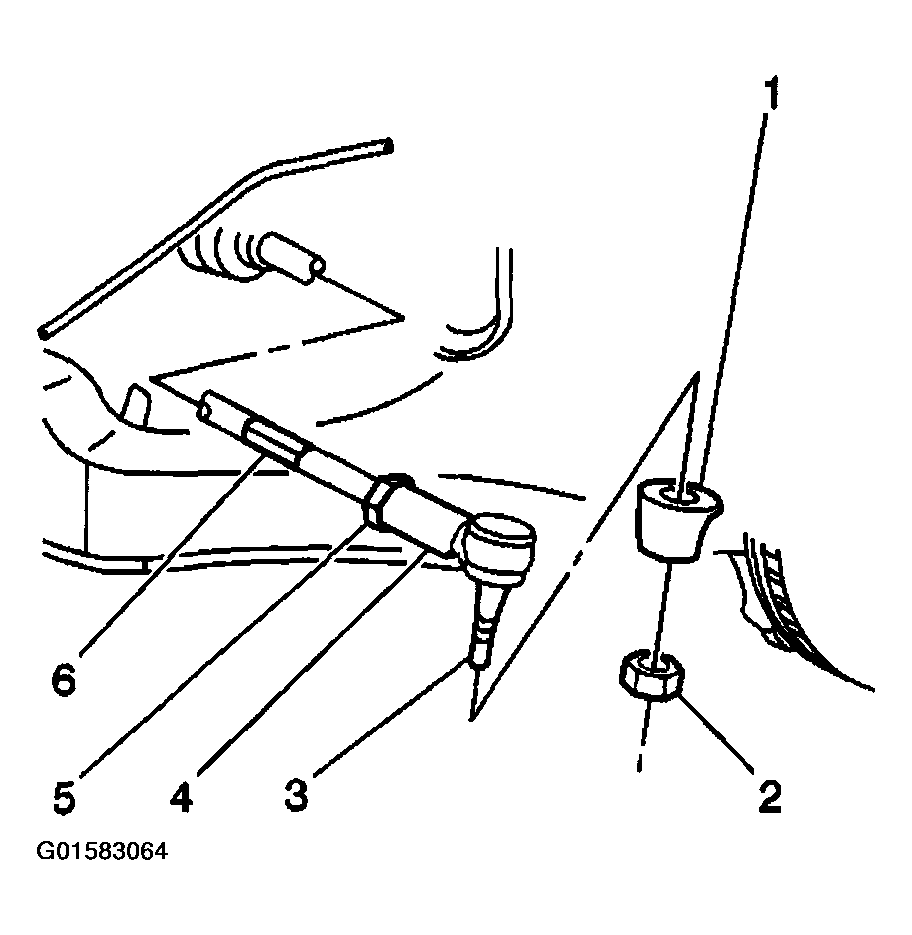

    Fig 1: Tie Rod Assembly
    G01583064Courtesy of GENERAL MOTORS CORP.
