Installation Procedure

  1. Position the child seat tether brackets to the slot in the rear shelf.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the child seat tether brackets.

    Tighten

    Tighten the screws to the child seat tether brackets to 20 N.m (15 lb ft).

  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

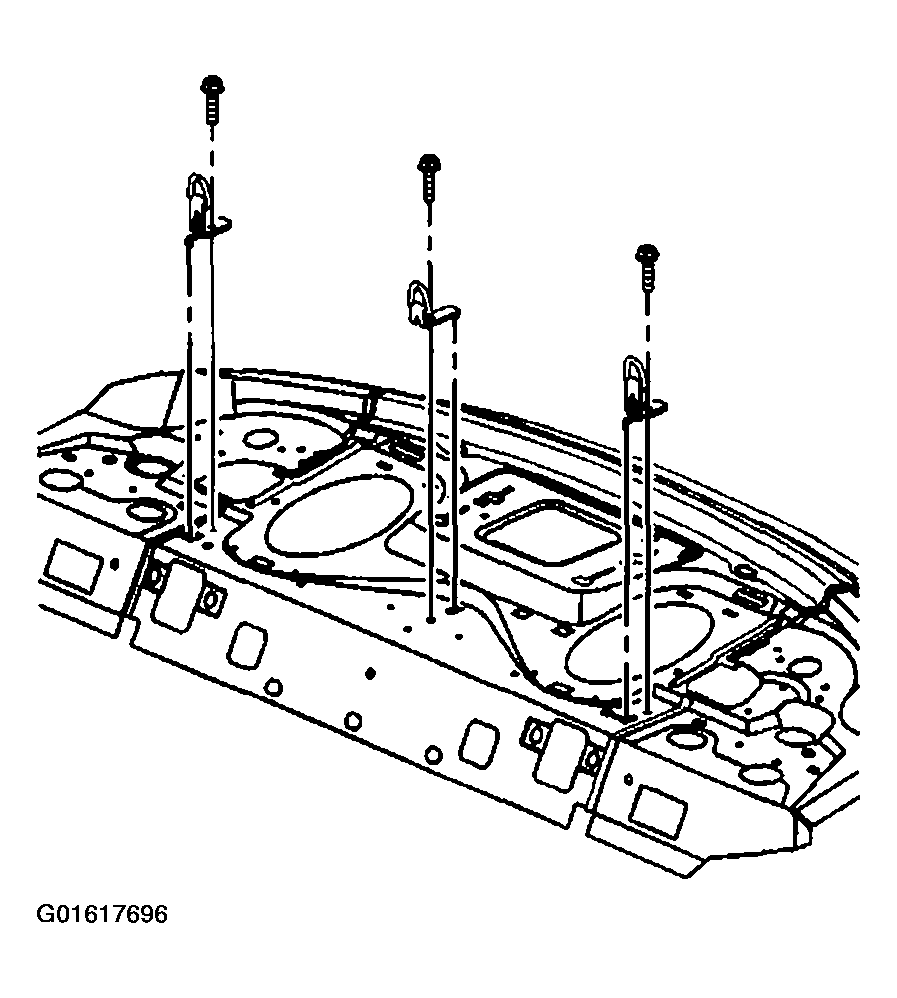

    Fig 1: Child Seat Tether Brackets
    G01617696Courtesy of GENERAL MOTORS CORP.
