Stationary Windows Component Views

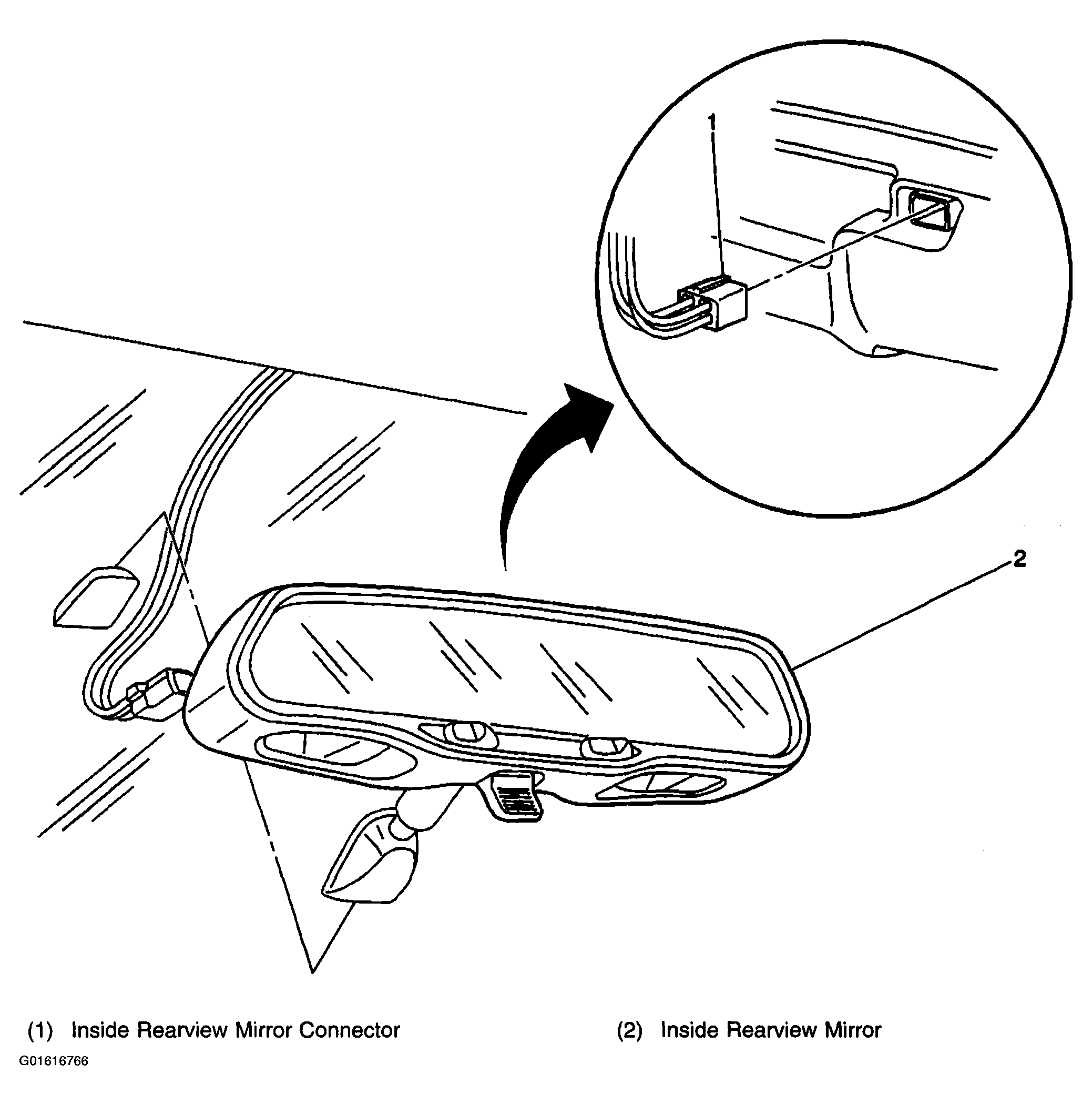

Fig 1: Forward Center Of Interior Compartment
G01616766Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Side Of Rear Window
G01616767Courtesy of GENERAL MOTORS CORP.

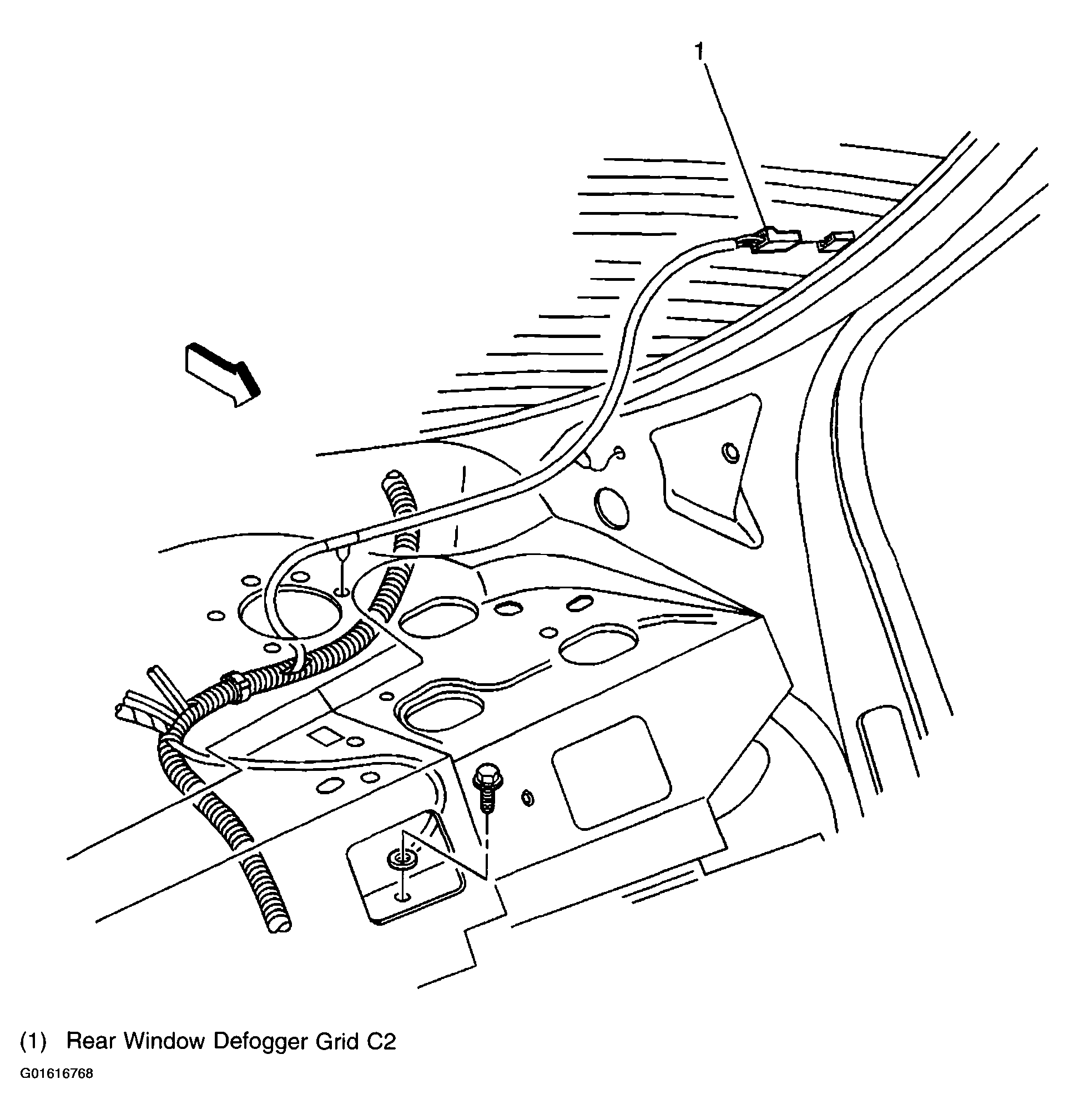

Fig 3: Left Rear Window
G01616768Courtesy of GENERAL MOTORS CORP.

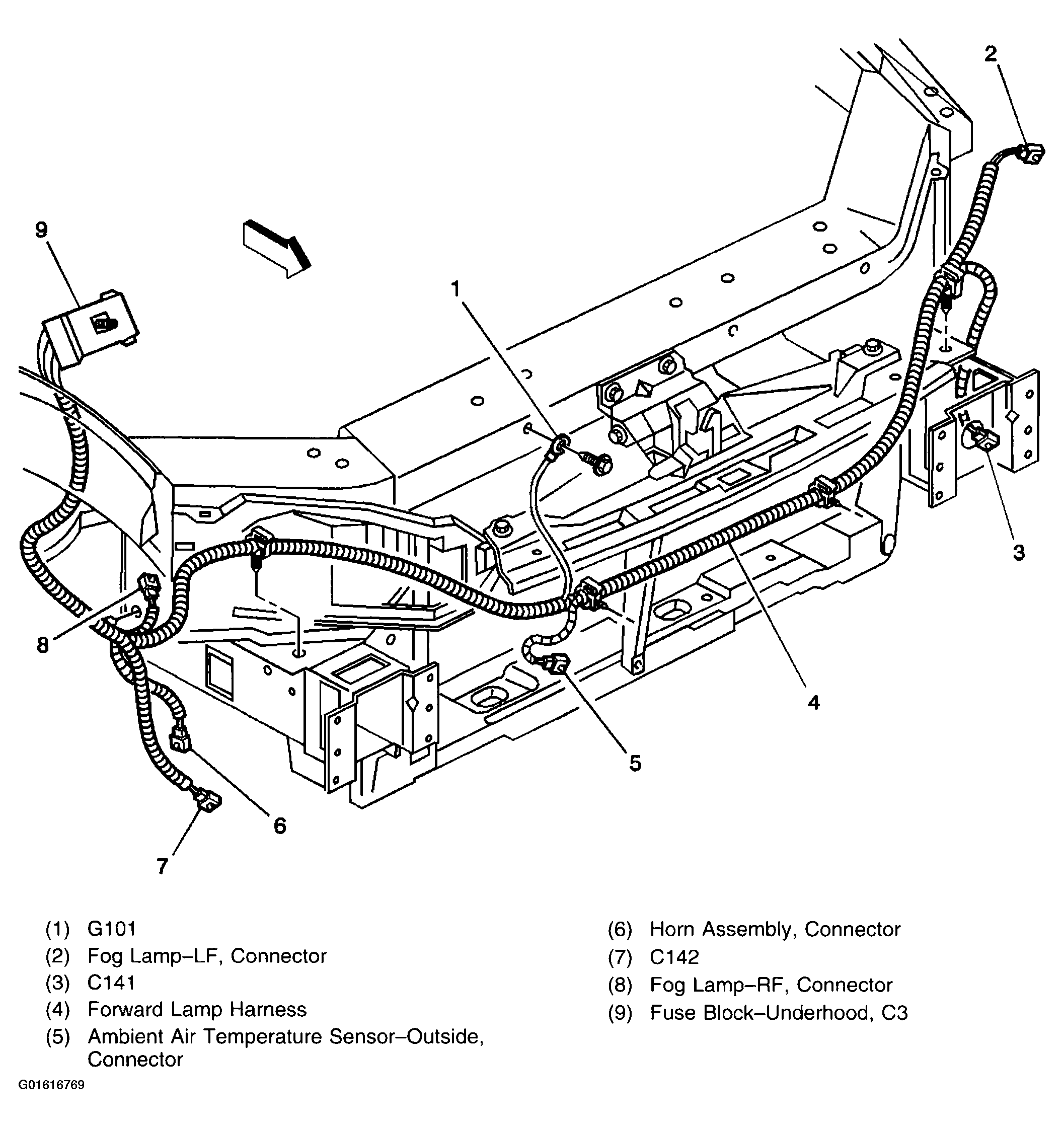

Fig 4: Front Of Vehicle
G01616769Courtesy of GENERAL MOTORS CORP.
