Floor Console: Installation

  1. Position the front floor console to the vehicle. Connect the electrical connectors. See Fig 4 . Align the front floor console to the guide pins in the instrument panel. Push the front floor console forward into the instrument panel until the console guide pins are fully seated.
  2. Install the front floor console center bolts at the transaxle shift lever mounting bracket. Tighten the bolts to 44 INCH lbs. (5 N.m). Install the front floor console rear bolts in the rear storage compartment. Tighten the bolts to 44 INCH lbs. (5 N.m). See Fig 3 .
  3. Install the front bolts to the front floor console. Tighten the bolts to 18 INCH lbs. (2 N.m). Install the shift control lever. See SHIFT CONTROL ASSEMBLY  .
  4. Install the front floor console trim plate. See FLOOR CONSOLE TRIM PLATE  . Install the rear storage compartment to the front floor console. See Fig 1 . Connect the battery ground negative cable.

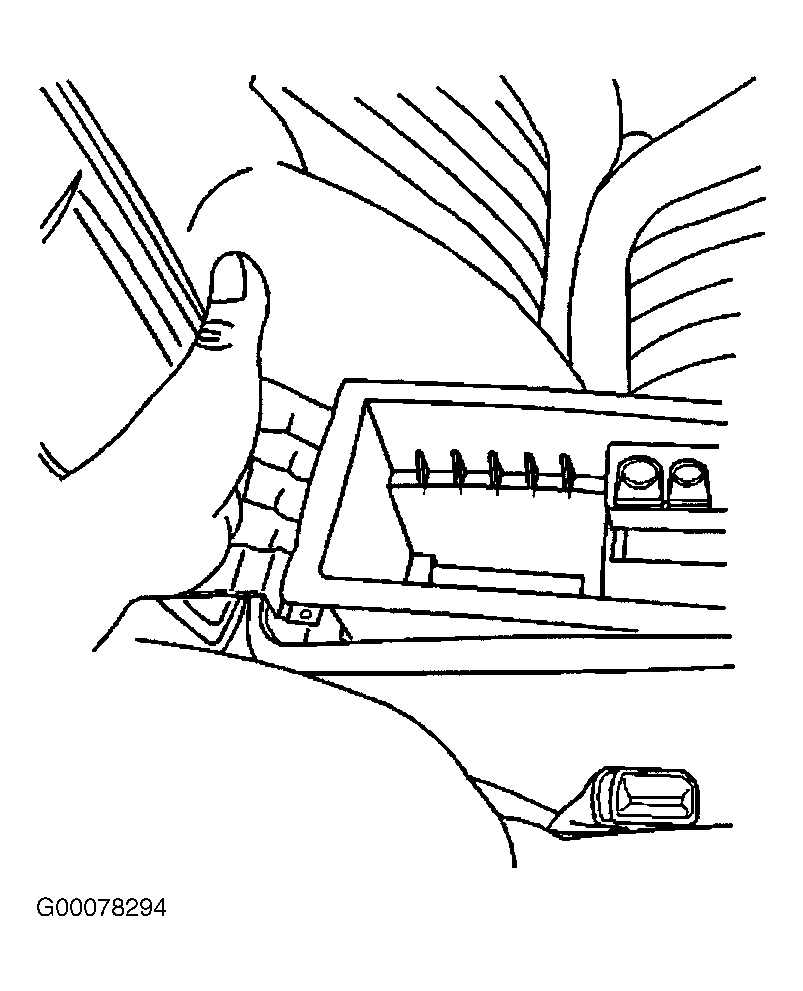

Fig 1: Removing & Installing Rear Storage Compartment
G00078294Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing & Installing Gearshift Lever Knob Retainer
G00078295Courtesy of GENERAL MOTORS CORP.

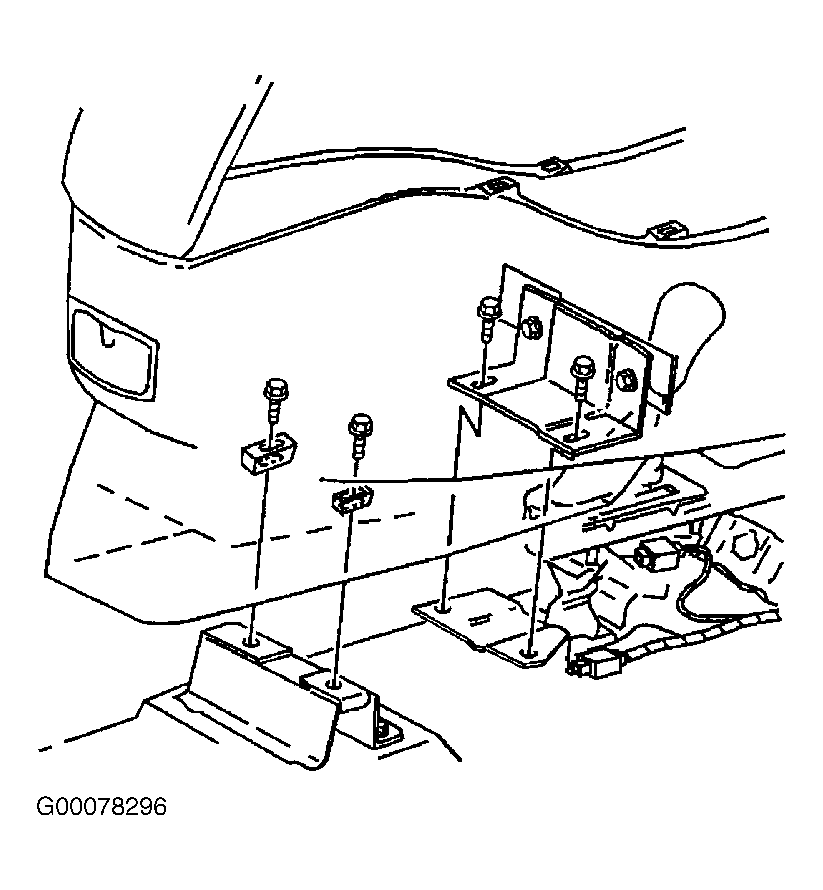

Fig 3: Removing & Installing Floor Console Bolts
G00078296Courtesy of GENERAL MOTORS CORP.

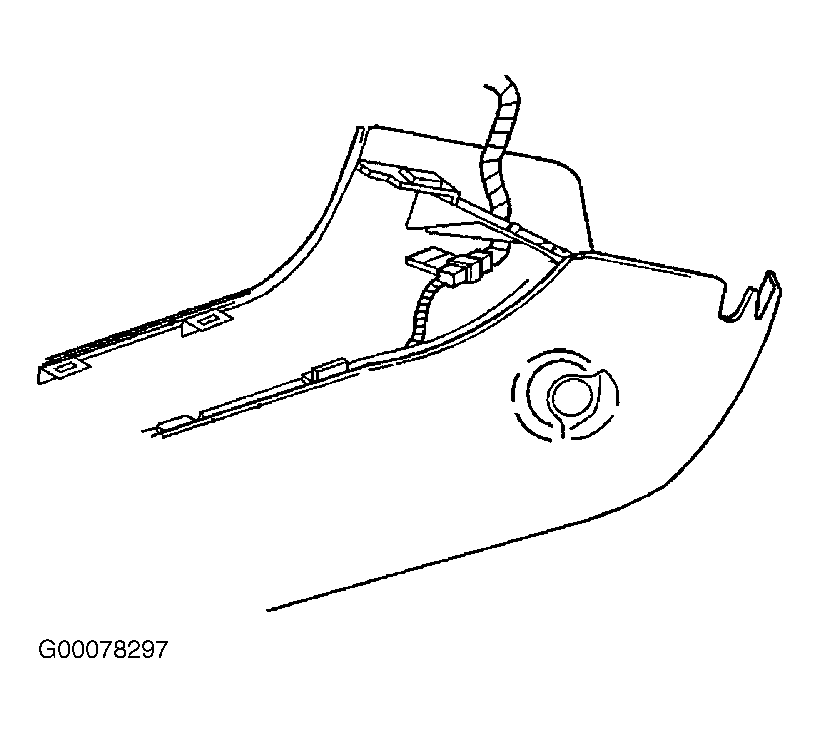

Fig 4: Removing & Installing Floor Console & Wiring Connector
G00078297Courtesy of GENERAL MOTORS CORP.
