Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Connect the rear window defogger electrical connectors.
    Fig 1: Rear Window Defogger Electrical Connectors
    G01616808Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window radio antenna connector.
  4. Connect the OnStar® connector, if equipped.
  5. Verify the radio and the OnStar® reception.
  6. Close the rear compartment lid.
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

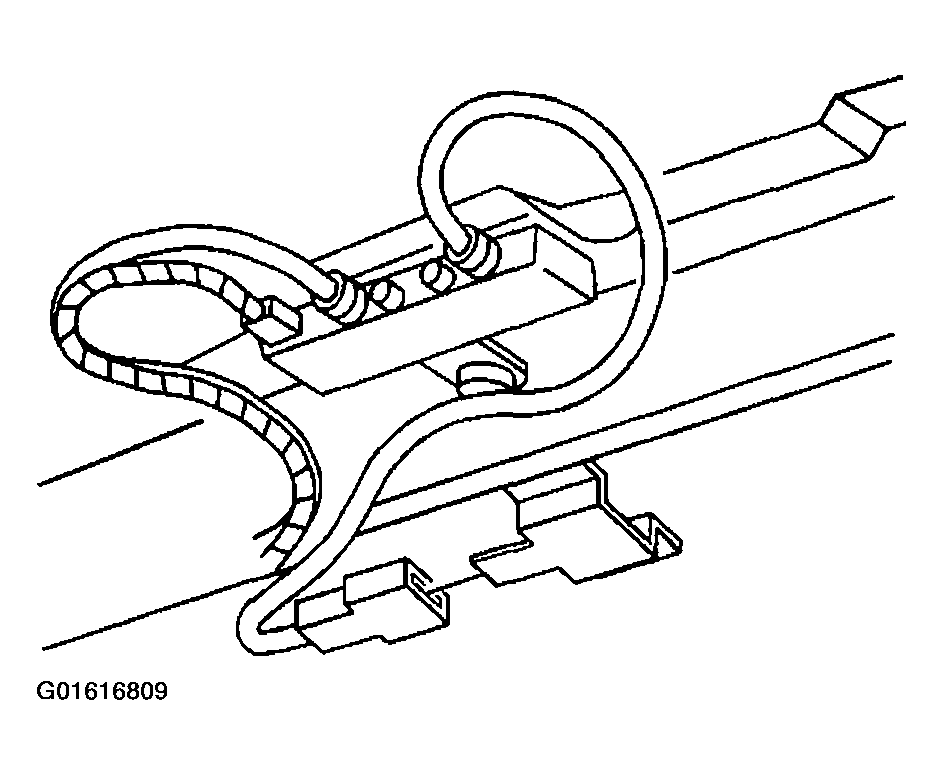

    Fig 2: Rear Window Radio Antenna Connector
    G01616809Courtesy of GENERAL MOTORS CORP.
