Component Locator
>>
Stationary Windows Connector End Views
Stationary Windows Connector End Views

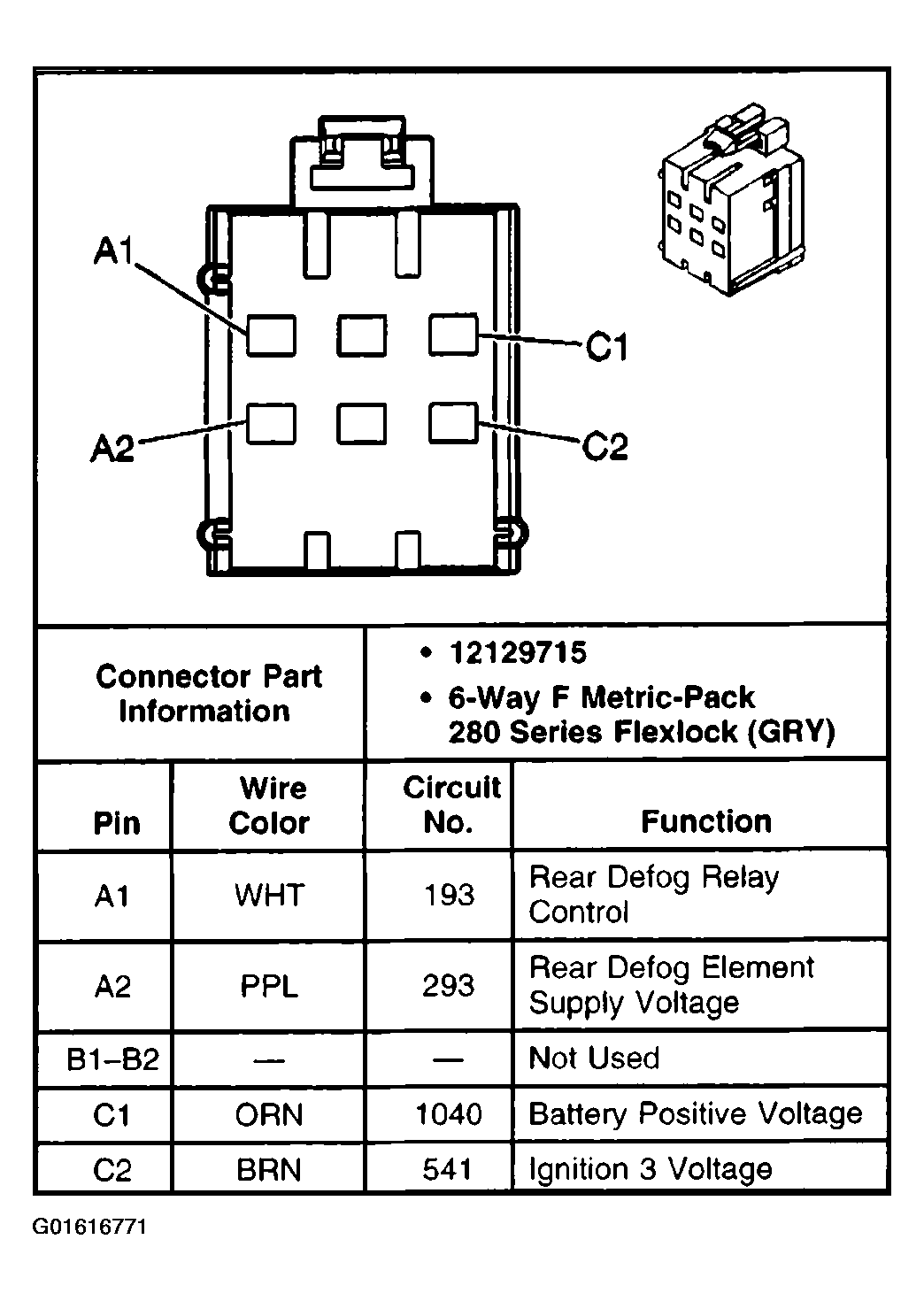

Fig 1: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Window Defogger Relay
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
