Removal Procedure

  1. Remove the control lever handle. Refer to Control Lever Handle Assembly Replacement .
  2. Remove the shift control closeout boot bolts (1).
  3. Remove the shift control closeout boot (2).

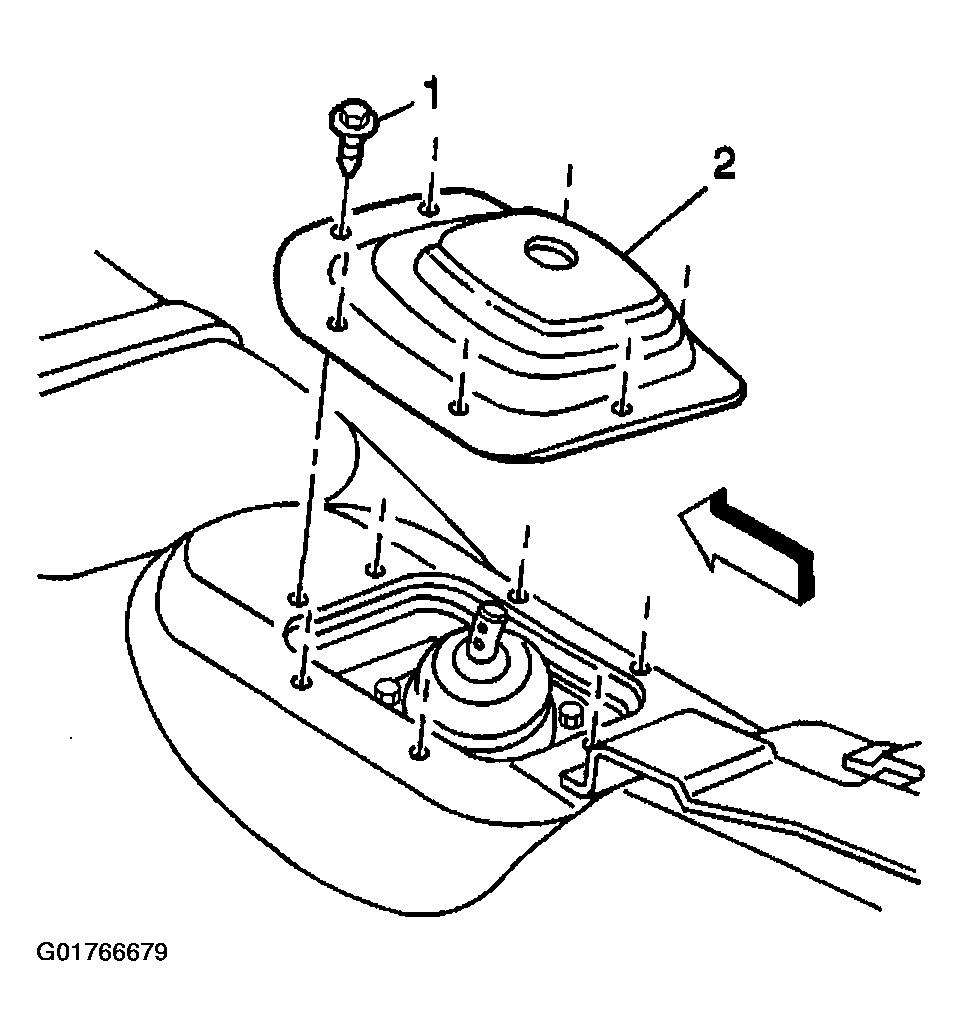

    Fig 1: Removing Shift Control Closeout Boot Bolts
    G01766679Courtesy of GENERAL MOTORS CORP.
