Removal Procedure

  1. Remove the shift control closeout boot. Refer to Shift Control Shift Closeout Boot Replacement .
  2. Remove the shift control bolts.
  3. Remove the control.
  4. Clean the old sealant from the housing and the shift control sealing surfaces.

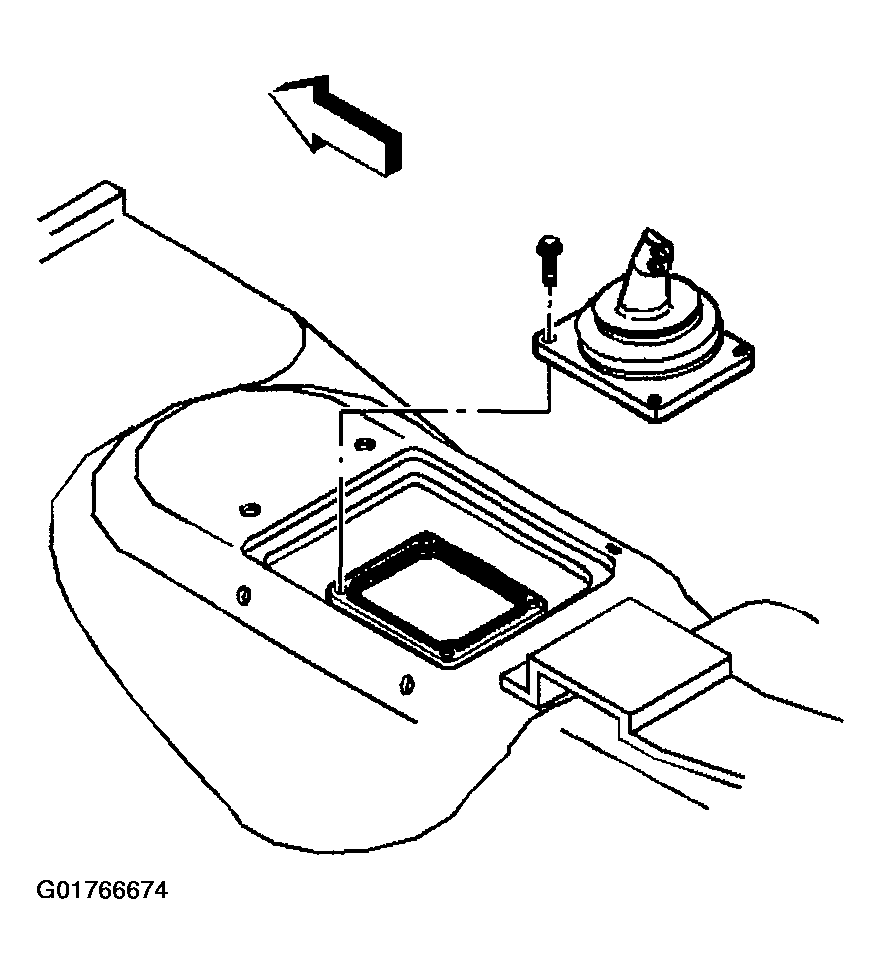

    Fig 1: Removing Shift Control Bolts
    G01766674Courtesy of GENERAL MOTORS CORP.
