Removal Procedure

CAUTION: The seat belt assembly and/or bracket assembly must be replaced as a unit only. Do not substitute parts for any reason, or personal injury could result.

Important:  Replace the anchor bracket if the anchor bracket is damaged.

  1. Remove the bolts.
  2. Remove the anchor bracket (1).

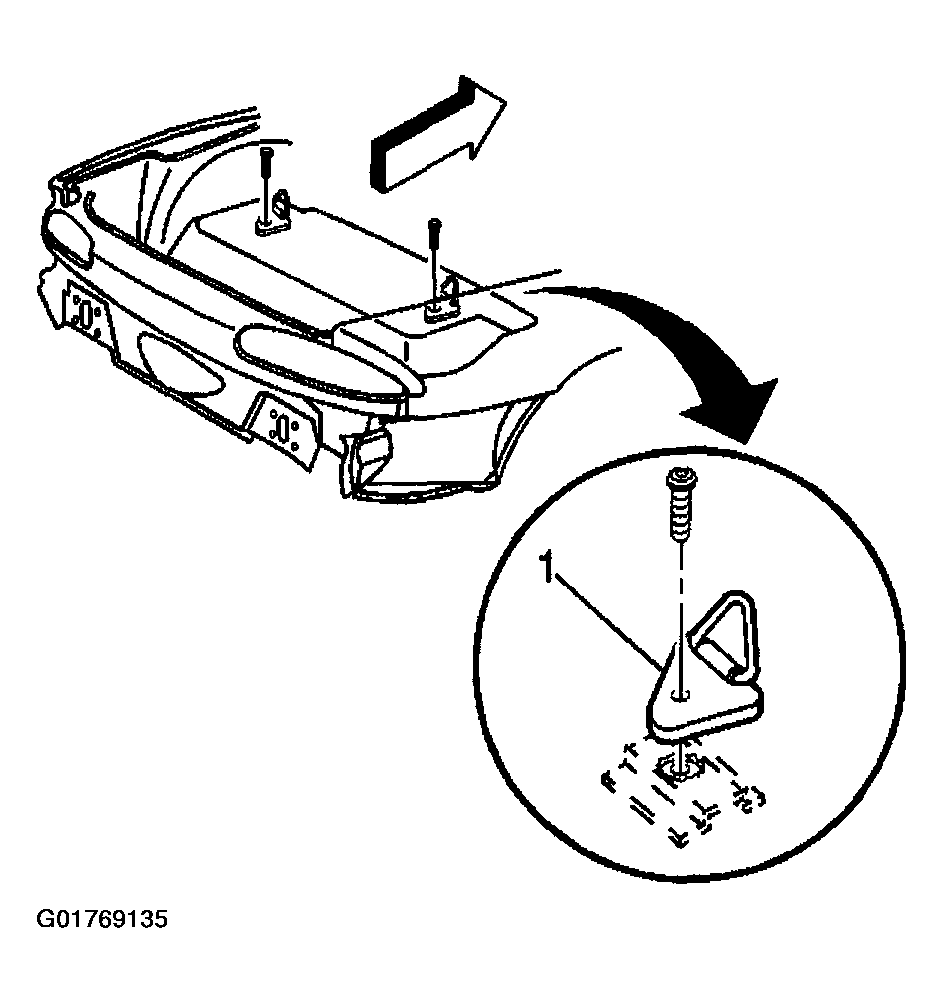

    Fig 1: Removing Anchor Bracket
    G01769135Courtesy of GENERAL MOTORS CORP.
