Compact Disc Inoperative

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

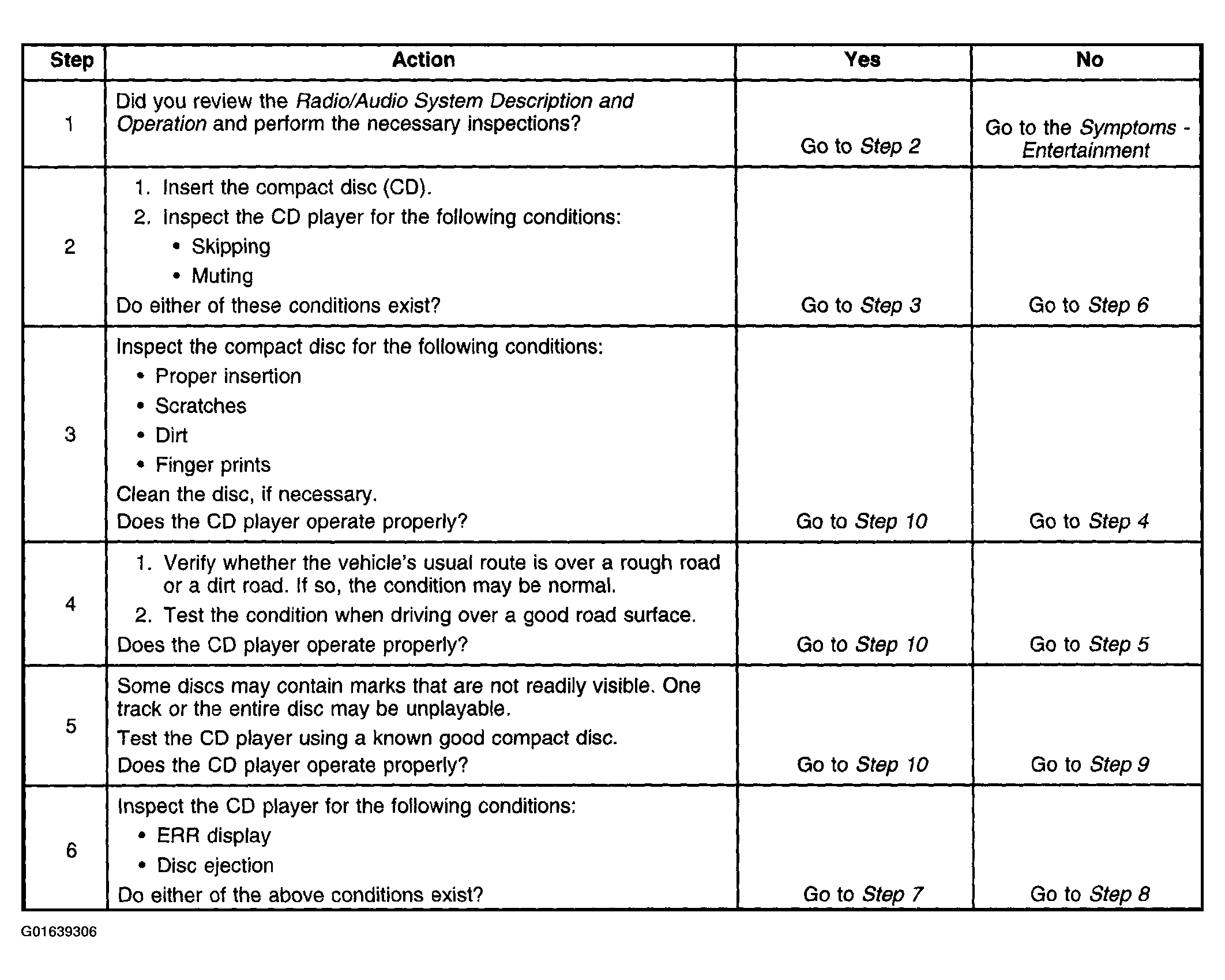

Fig 1: Compact Disc Inoperative (1 Of 2)
G01639306Courtesy of GENERAL MOTORS CORP.

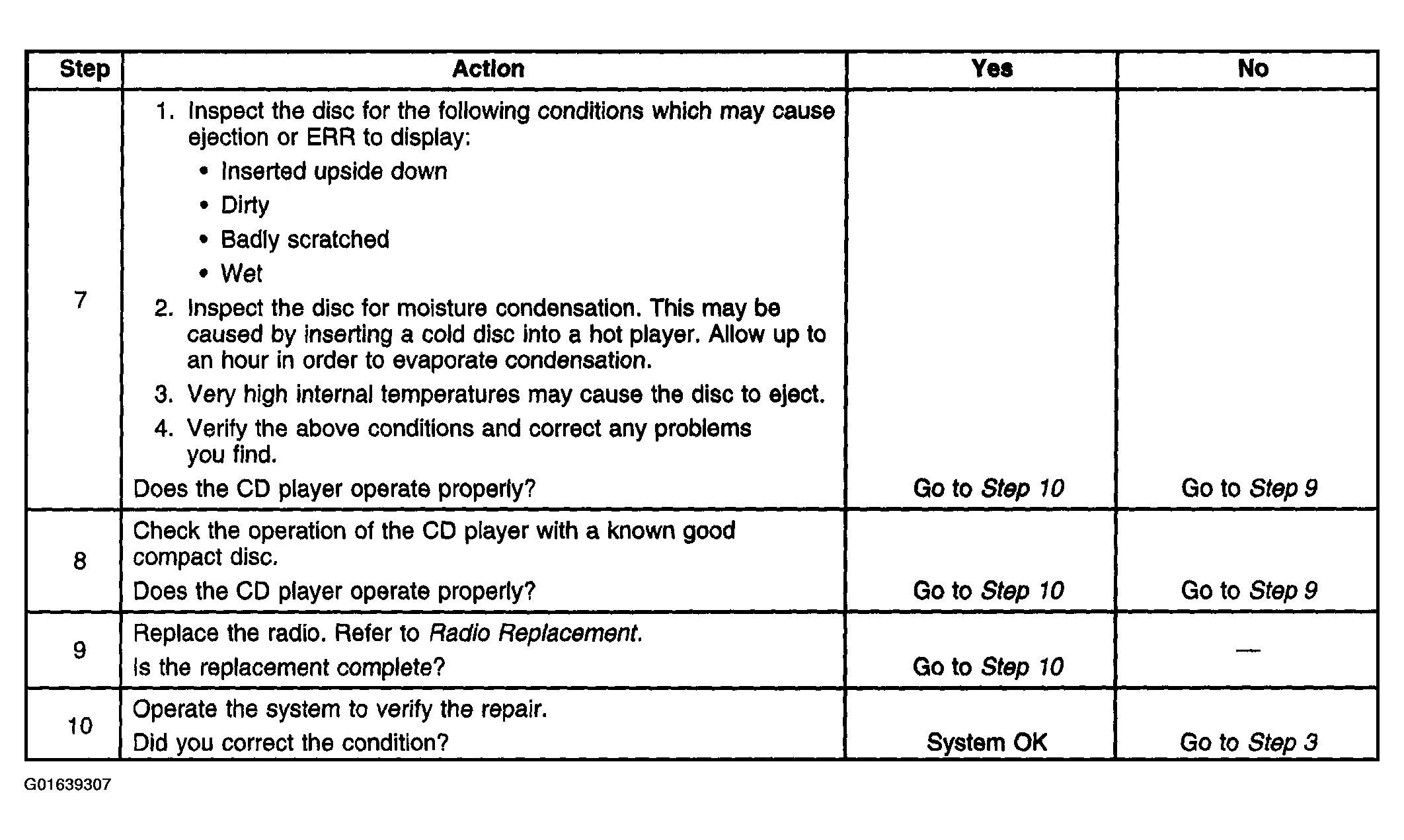

Fig 2: Compact Disc Inoperative (2 Of 2)
G01639307Courtesy of GENERAL MOTORS CORP.
