Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Install the backup lamp bulb to the lamp socket (4).
Install the backup lamp bulb socket (4) to the tail lamp.

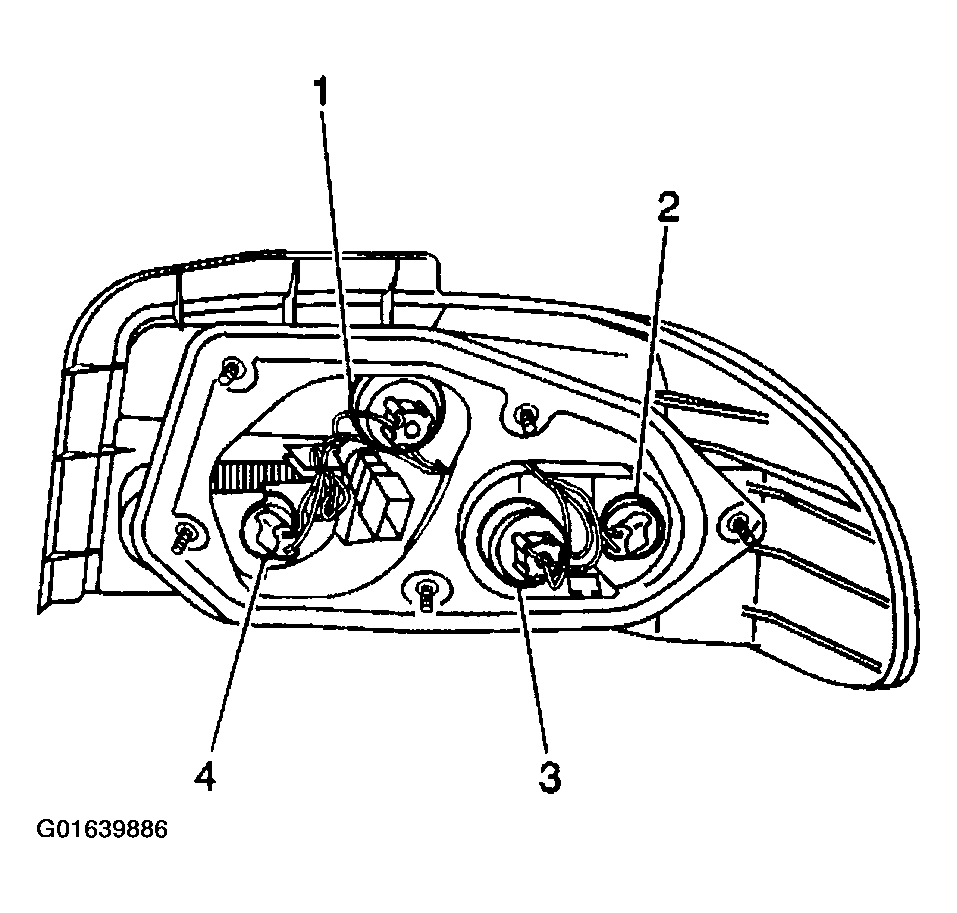

Fig 1: Installing The Backup Lamp Bulb To Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment trim panel (1) to the vehicle. Secure the trim panel with the 4 plastic retainers (2).
Close the rear compartment lid.

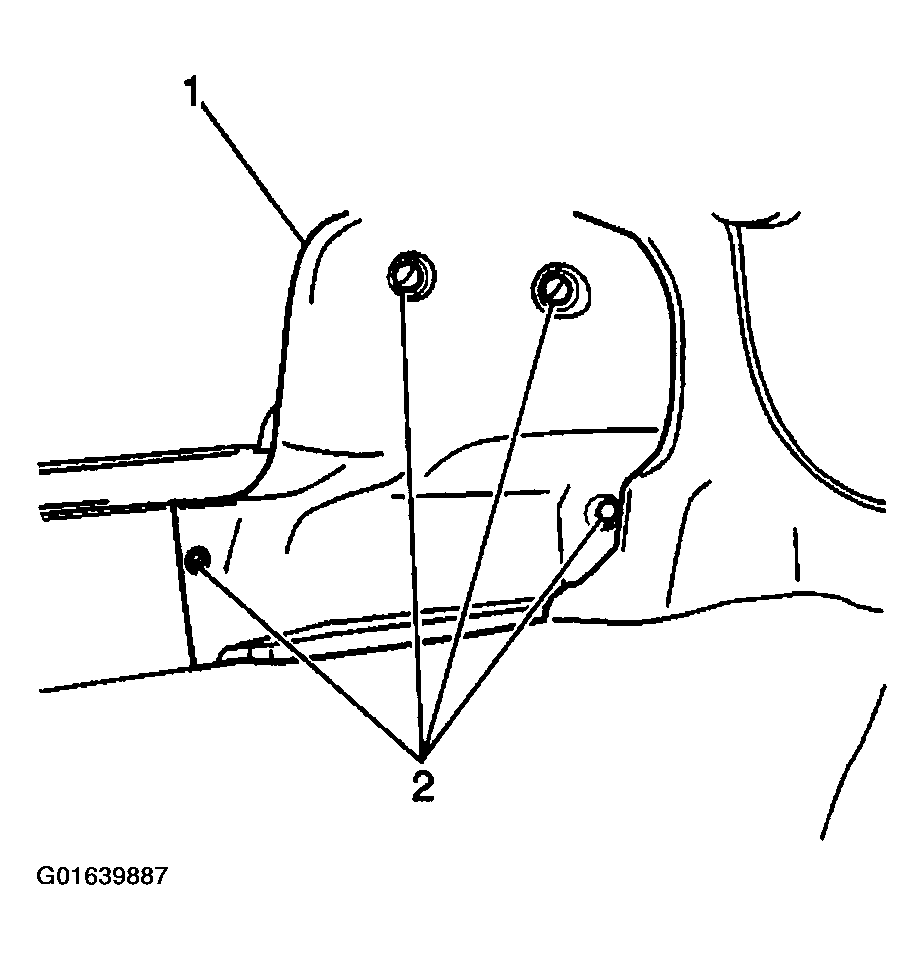

Fig 2: Installing Rear Compartment Trim Panel
Courtesy of GENERAL MOTORS CORP.
