Installation Procedure

  1. Install the exhaust pipe heat shield.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the exhaust pipe heat shield bolts.

    Tighten

    Tighten the exhaust pipe heat shield bolts to 2 N.m (18 Inch lbs).

  3. Install the exhaust muffler. Refer to Muffler Replacement .

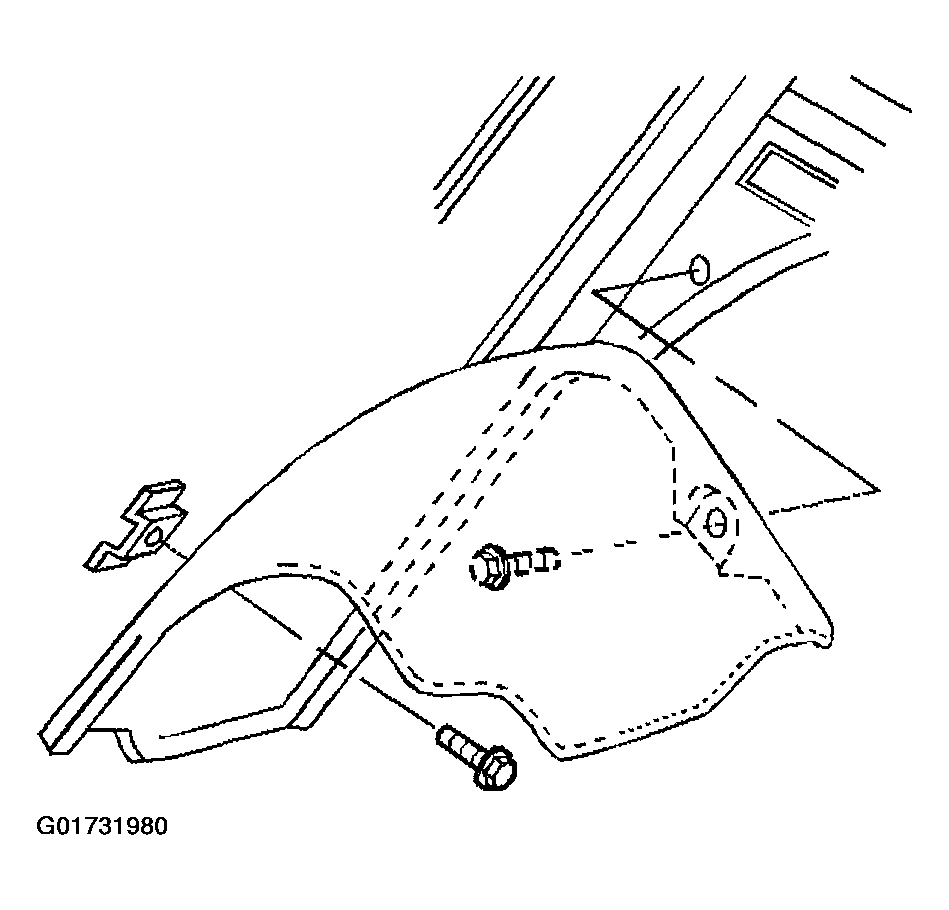

    Fig 1: Installing Exhaust Pipe Heat Shield Bolts
    G01731980Courtesy of GENERAL MOTORS CORP.
