Installation Procedure

  1. Install the exhaust heat shield.
  2. Hook the exhaust heat shield to the converter heat shield.
    Fig 1: Installing Exhaust Heat Shield
    G01731977Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust heat shield (1).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the exhaust heat shield bolts (2, 3).

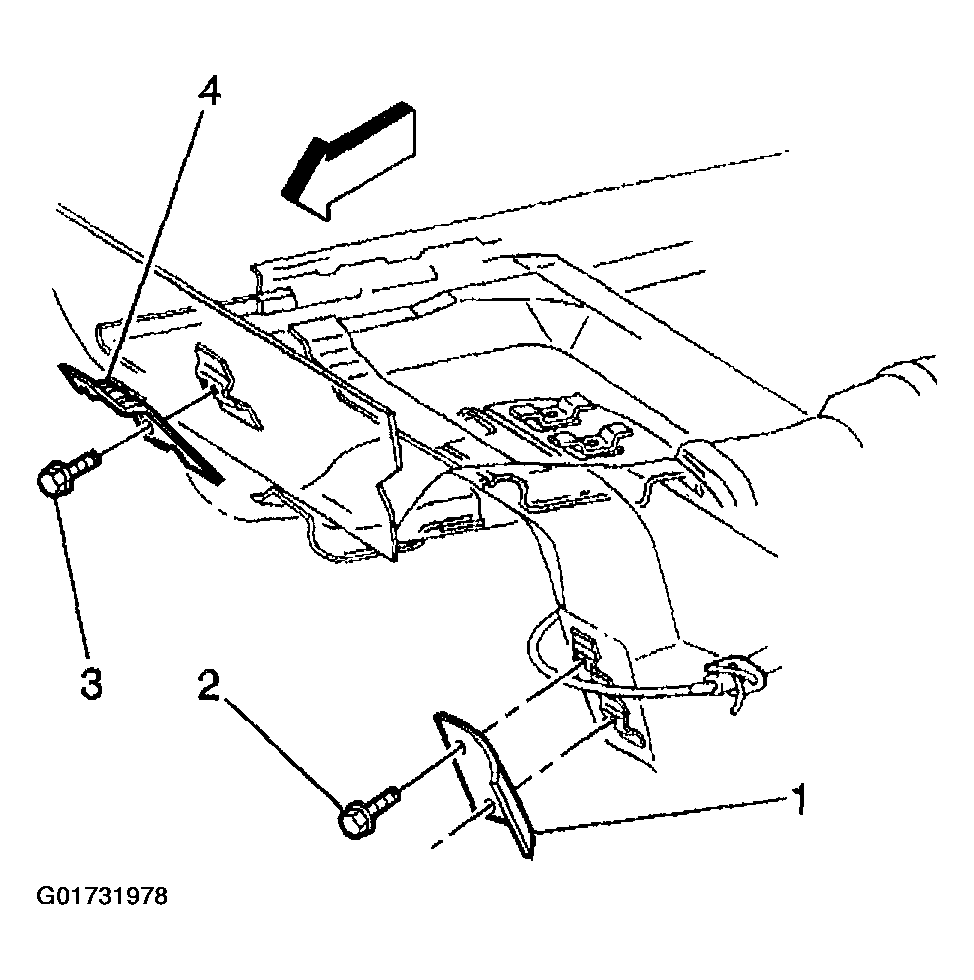

    Fig 2: Installing Exhaust Heat Shield Bolts
    G01731978Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the exhaust heat shield bolt to 2 N.m (18 Inch lbs).

  5. Install the catalytic converter. Refer to Catalytic Converter Replacement (3.8L Engine) , Catalytic Converter Replacement - Left (5.7L Engine)  and Catalytic Converter Replacement - Right (5.7L Engine) .
