Installation Procedure

  1. Install the catalytic converter heat shield.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the converter heat shield bolts.

    Tighten

    Tighten the catalytic converter heat shield bolts to 2 N.m (18 Inch lbs).

  3. Install the catalytic converter. Refer to Catalytic Converter Replacement (3.8L Engine) , Catalytic Converter Replacement - Left (5.7L Engine)  and Catalytic Converter Replacement - Right (5.7L Engine) .

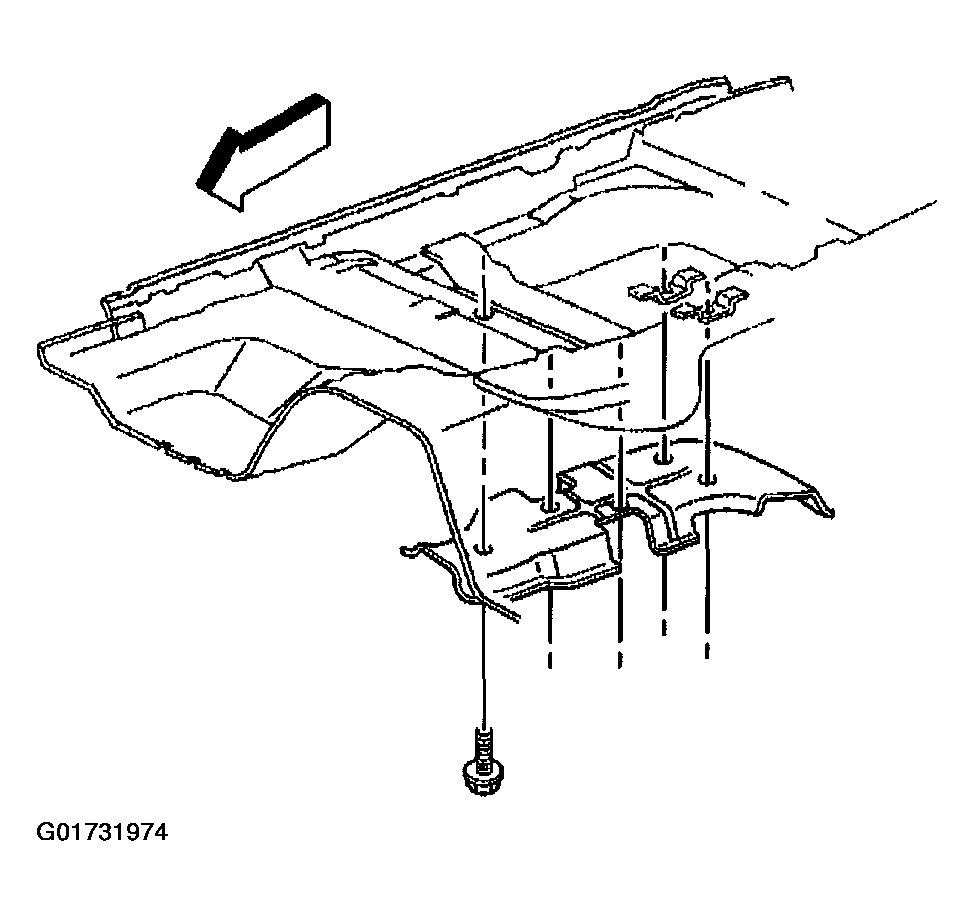

    Fig 1: Installing Catalytic Converter Heat Shield
    G01731974Courtesy of GENERAL MOTORS CORP.
