Installation Procedure

  1. Install the wheel speed sensor (1).

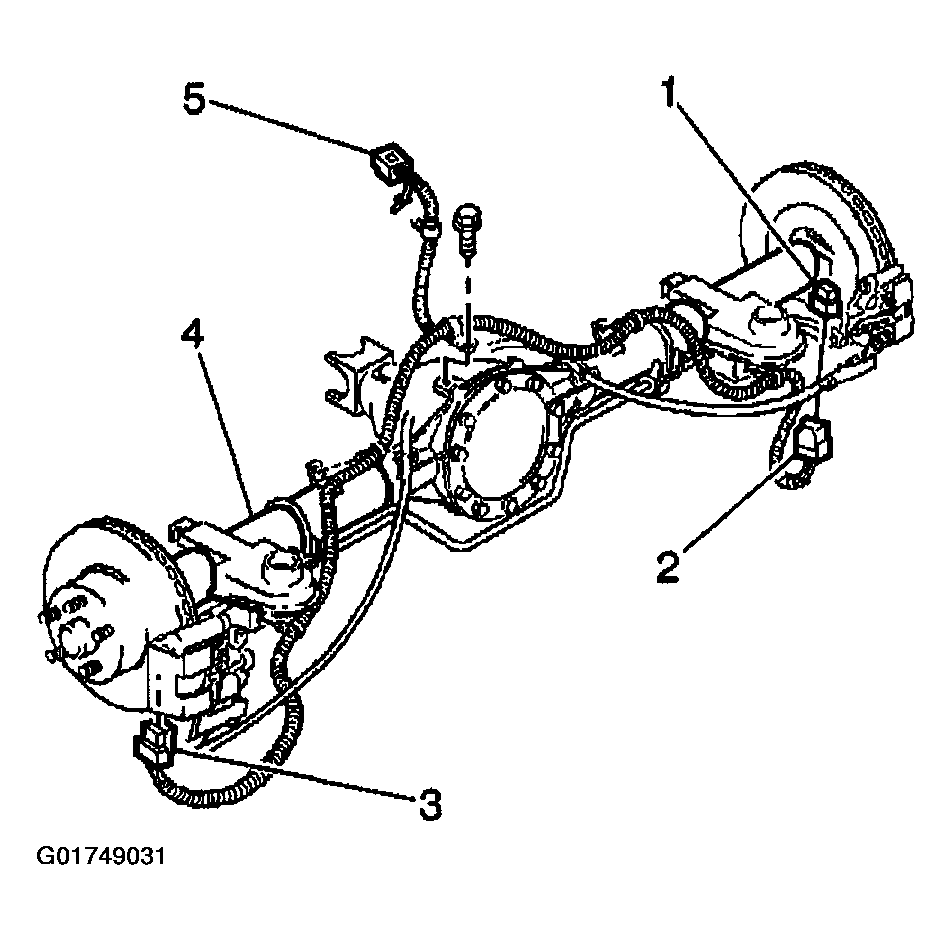

    Fig 1: Installing Wheel Speed Sensor
    G01749031Courtesy of GENERAL MOTORS CORP.
  2. Install the wheel speed sensor bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the wheel speed sensor electrical connector (2).
  4. Lower the vehicle.
