Installation Procedure

Install the BPMV bracket to the crossmember.
Install the bracket bolts or studs to the BPMV bracket.
Tighten the bolts or studs in the following sequence:
Tighten
- Tighten the lower left bolt or stud to 50 N.m (37 lb ft).
- Tighten the upper left bolt or stud to 50 N.m (37 lb ft).
- Tighten the upper and lower right bolts or studs to 50 N.m (37 lb ft).
Install the EBCM/BPMV assembly (5) into the bracket.

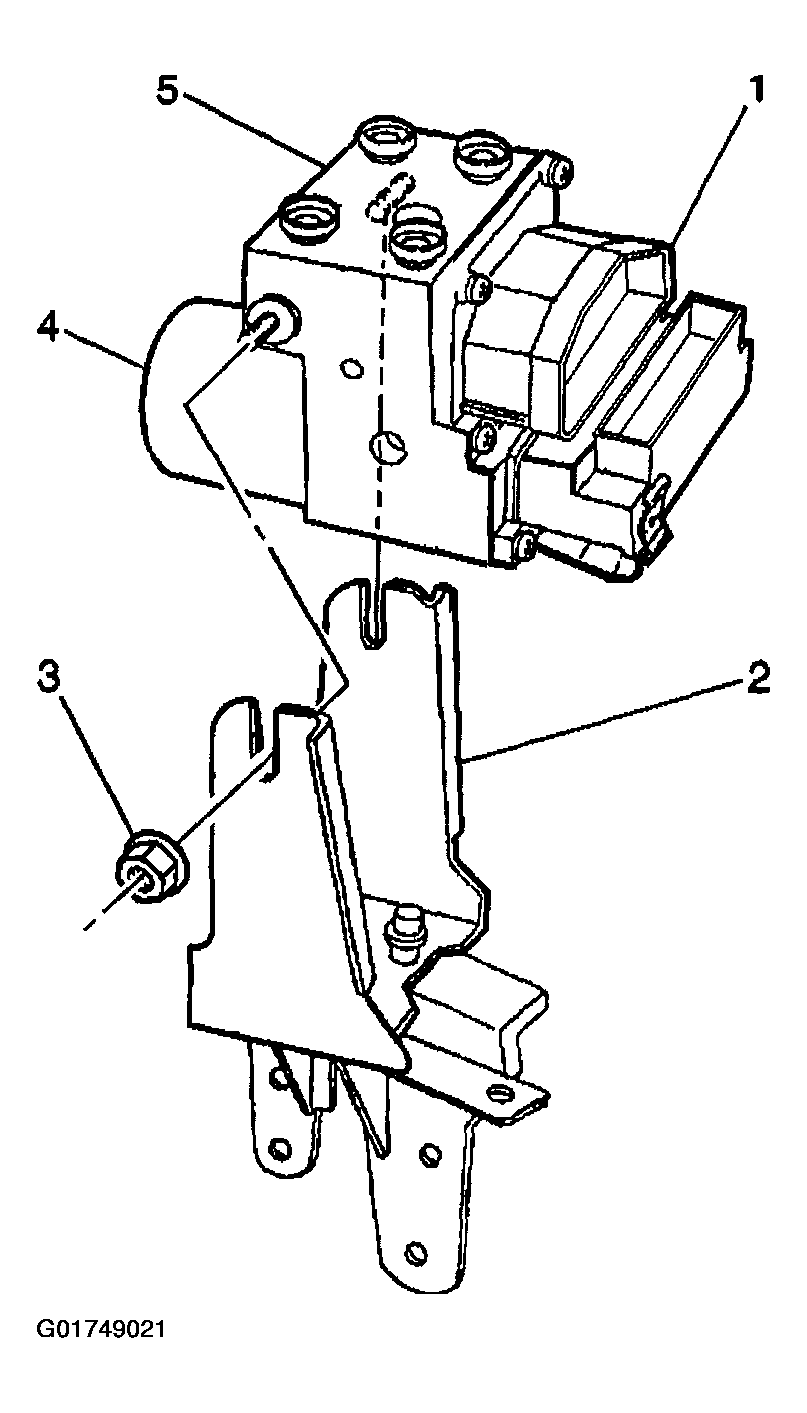

Fig 1: Installing EBCM/BPMV Assembly
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the two insulator nuts to 25 N.m (18 lb ft).
Install the power steering fluid reservoir bracket, if equipped.
