Removal Procedure

  1. Pry up the rear edge of the drivers side accessory panel (3), and or the front edge of the passenger side accessory panel.
  2. Slide the drivers side accessory panel (3) rearward, and or the passenger side accessory panel forward, out of the door trim panel.
  3. Disconnect the electrical connector (5) from the window switches (4).
  4. Remove the power window switches (4) from accessory panel (3).

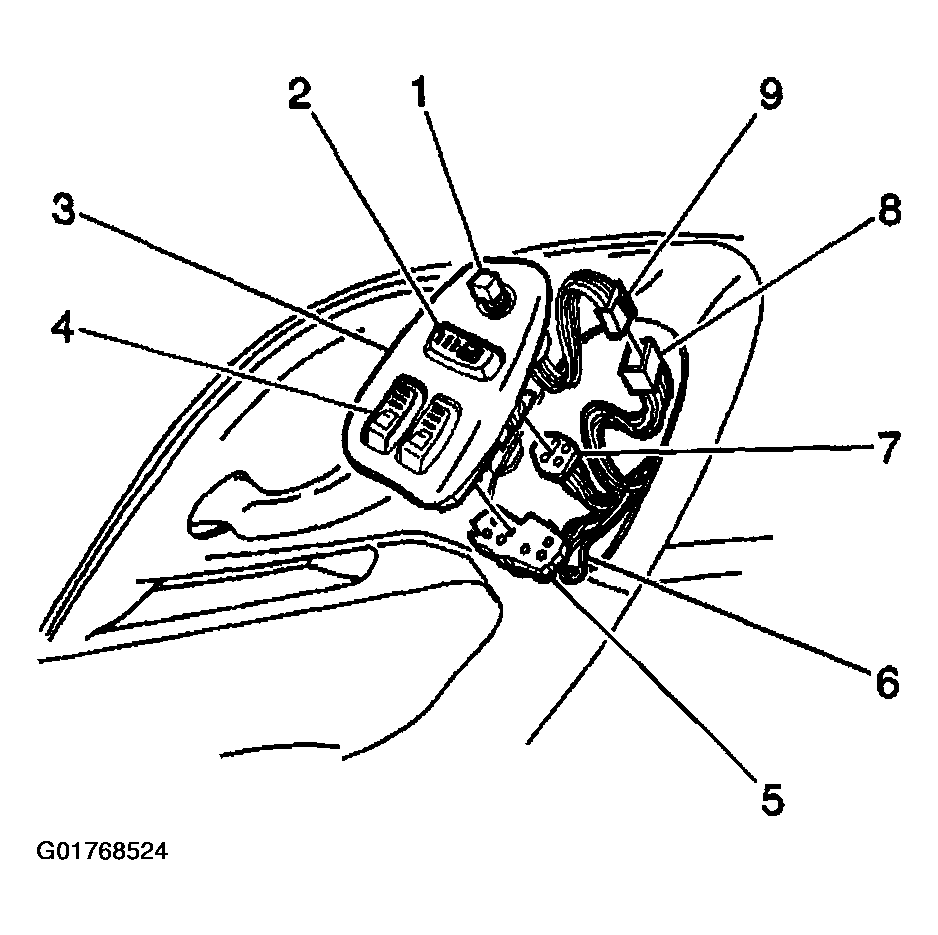

    Fig 1: Removing Window Switch (Chevrolet)
    G01768524Courtesy of GENERAL MOTORS CORP.
