Removal Procedure

  1. Open the console armrest door.
  2. Remove the bolts (2) from the transmission trim plate (1) of the floor console.
  3. Remove the transmission trim plate (1).
  4. Rotate the indicator lamp socket in a counterclockwise direction. Remove the socket from the transmission trim plate.
  5. Remove the bulb from the socket.

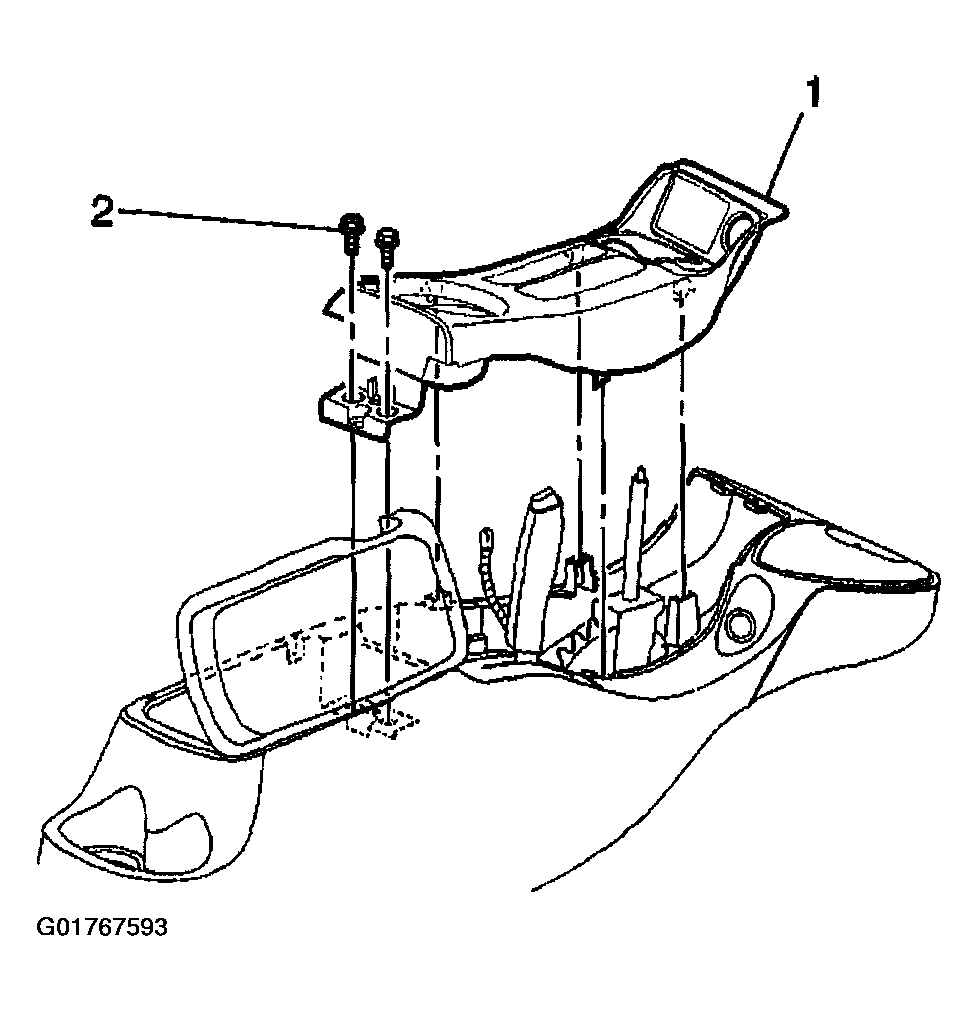

    Fig 1: Removing Trans Floor Shift Control Indicator Lamp
    G01767593Courtesy of GENERAL MOTORS CORP.
