Removal Procedure

  1. Remove the HVAC control. Refer to HVAC CONTROL ASSEMBLY .
  2. Rotate the lamp socket (6) counterclockwise to release from the HVAC control.
  3. Remove the bulb from the lamp socket.

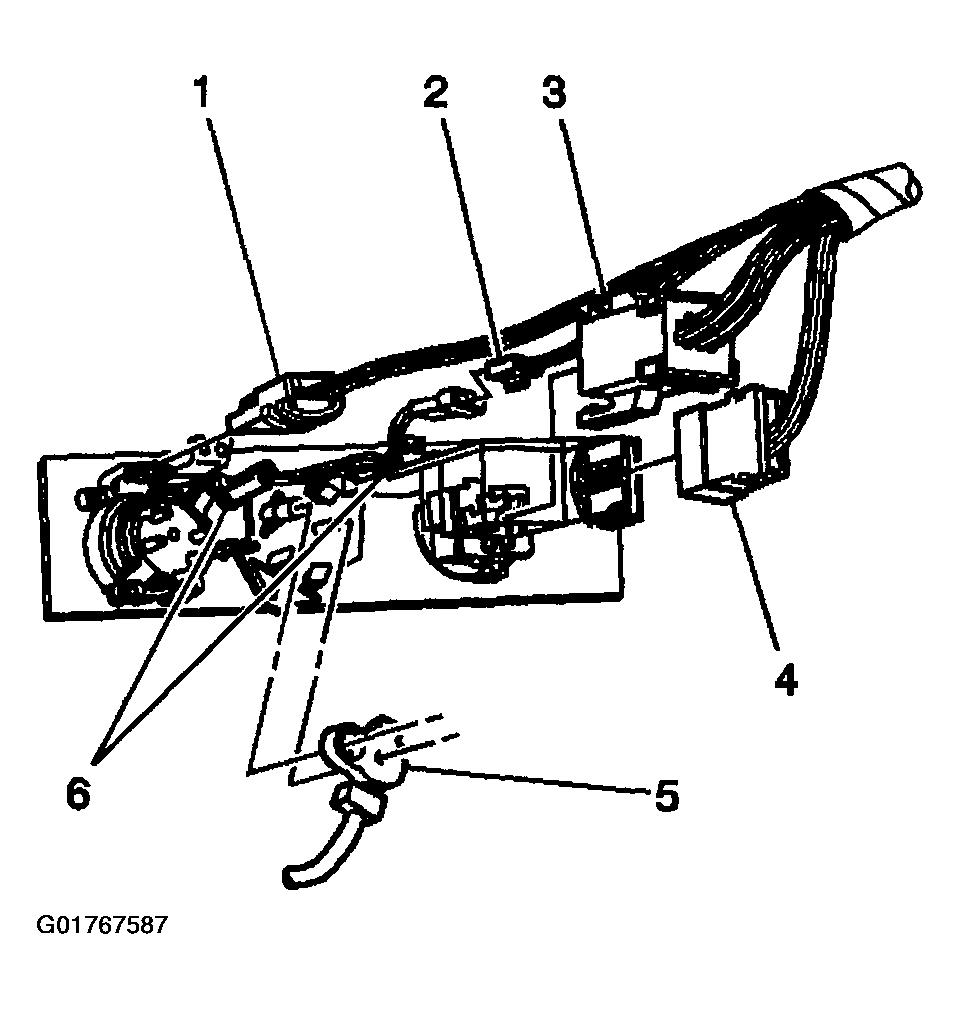

    Fig 1: Removing HVAC Control Lamp
    G01767587Courtesy of GENERAL MOTORS CORP.
