Installation Procedure

  1. Install the fog lamp relay to the electrical center. Refer to FUSES & CIRCUIT BREAKERS .
  2. Install the cover on the number 1 underhood electrical center.

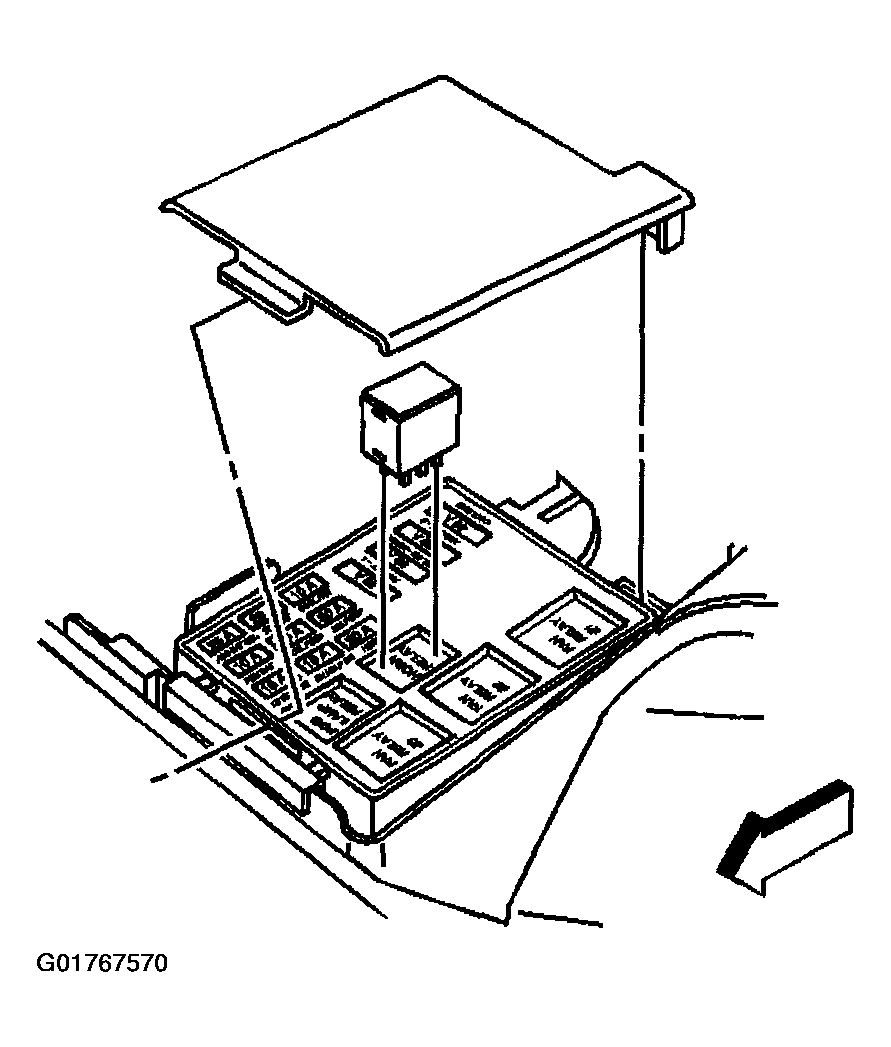

    Fig 1: Installing Cover On Number 1 Underhood Electrical Center
    G01767570Courtesy of GENERAL MOTORS CORP.
