Removal Procedure

  1. Remove the radio.
  2. Remove the daytime running light (DRL) ambient light sensor module from the HVAC duct.

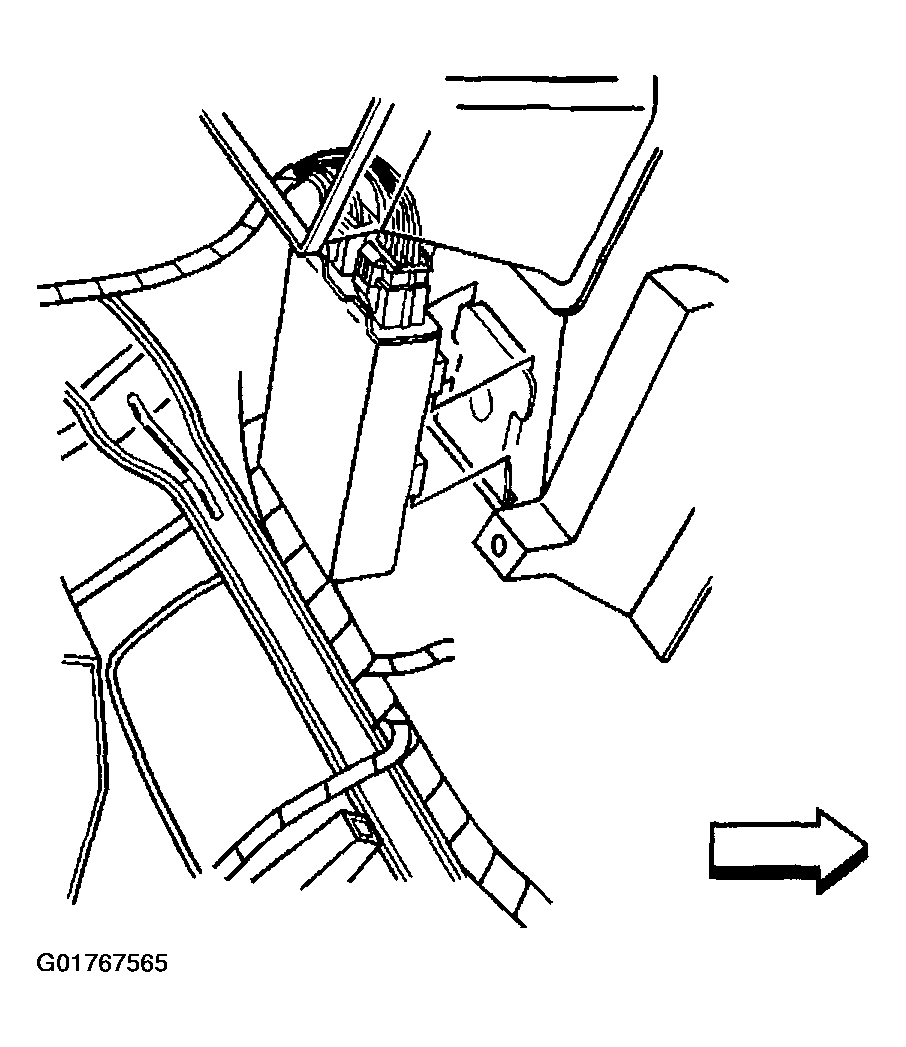

    Fig 1: Removing Daytime Running Light (DRL) Ambient Light Sensor Module
    G01767565Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the DRL module electrical connectors.
  4. Remove the DRL module.

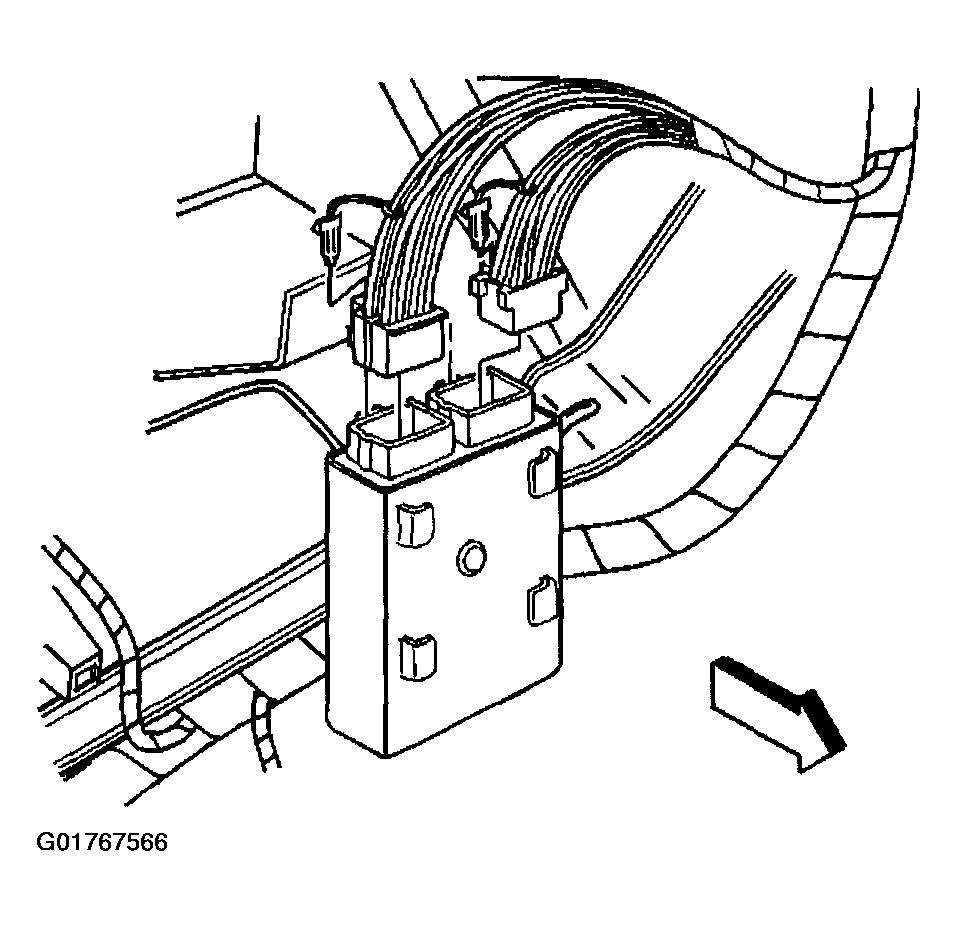

    Fig 2: Removing DRL Module
    G01767566Courtesy of GENERAL MOTORS CORP.
