Installation Procedure

  1. Route the SIR coil electrical connector to the steering wheel (2).
  2. Install the steering wheel horn switch. Refer to Horn Switch Replacement - On Vehicle (Chevrolet)  or Horn Switch Replacement - On Vehicle (Pontiac) .
  3. Install the steering wheel (2).
  4. Connect the horn ground lead (5).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the steering wheel retaining nut (3).

    Tighten

    Tighten the steering wheel retaining nut to 43 N.m (32 ft lbs).

  6. Install the SIR module to the steering wheel. Refer to AIR BAG RESTRAINT SYSTEMS .

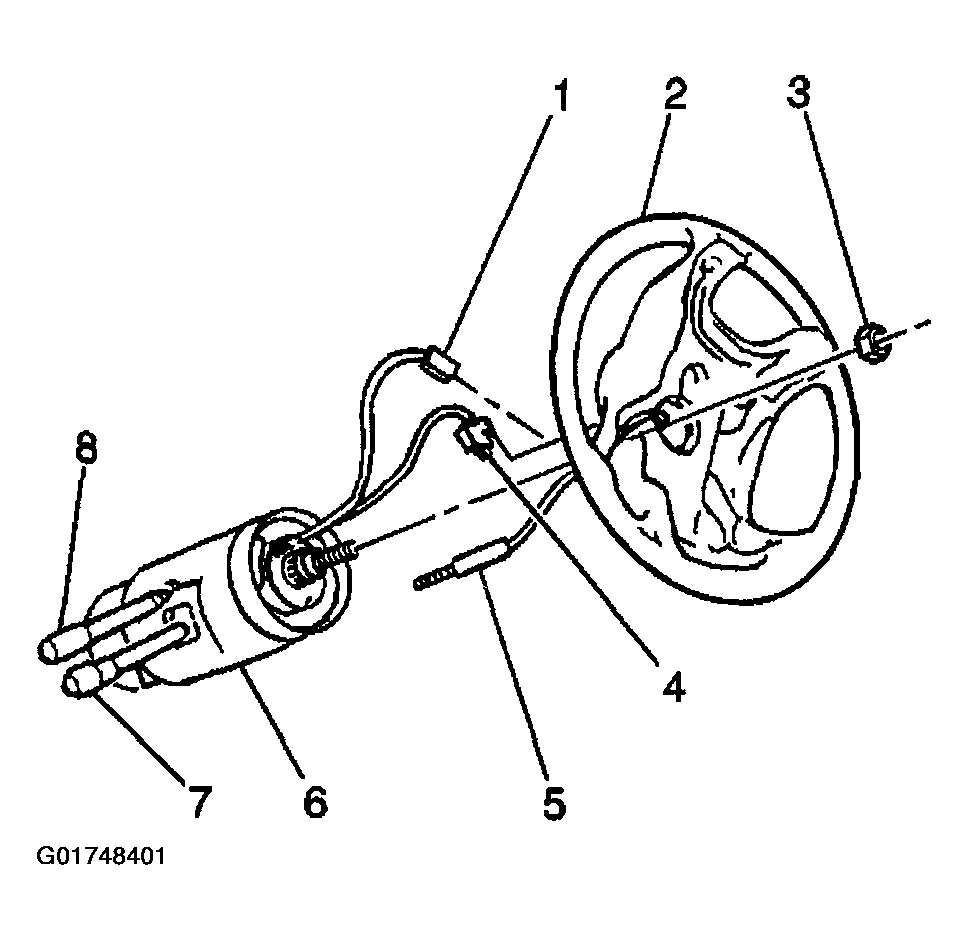

Fig 1: Installing Steering Wheel
G01748401Courtesy of GENERAL MOTORS CORP.
